Server SP - Install Pump Components

Page 7

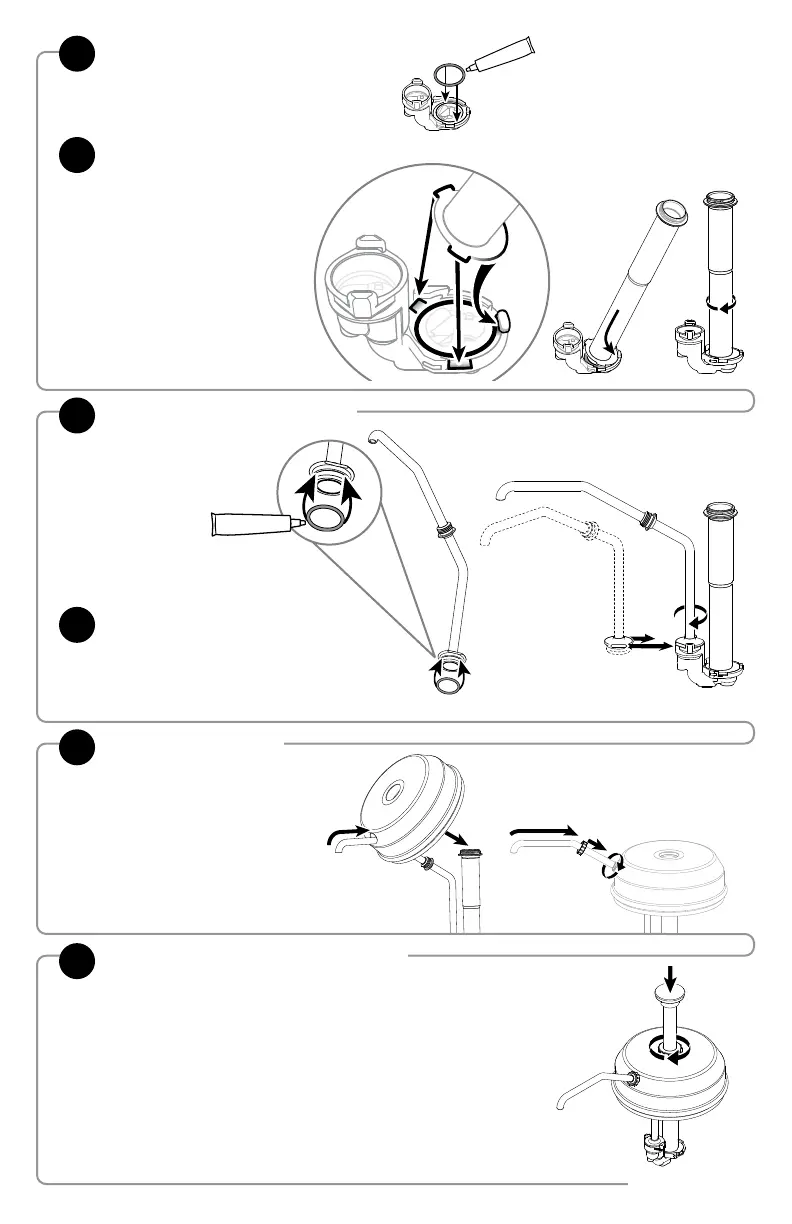

INSTALL LARGE O-RING
into valve body. Apply food equipment
lubricant on o-ring.
5
INSTALL MEDIUM O-RING
onto discharge tube.
Apply food equipment
lubricant on o-ring.
7
INSTALL LID
by sliding smaller lid hole
over discharge tube.
Align center hole with
threads on cylinder.
9
INSTALL PLUNGER ASSEMBLY
into cylinder.
Rotate locking collar clockwise
onto cylinder threads to secure.
10
INSTALL DISCHARGE TUBE
onto valve body. Rotate discharge tube
clockwise and press down rmly to
secure into slots on valve body.
8
IF DISCHARGE TUBE
HAS THREADS:
To secure lid, slide discharge tube nut
onto discharge tube.
Rotate nut clockwise to secure.
INSTALL CYLINDER
onto valve body.
TILT wide edge of cylinder
under nub on rim of valve body.
FIT TABS on cylinder into
corresponding notches in
valve body.
PRESS DOWN rmly and
ROTATE cylinder clockwise
to secure into slots.
6
