Server SP - ASSEMBLY; Prepare Piston and Head Tube

Page 6

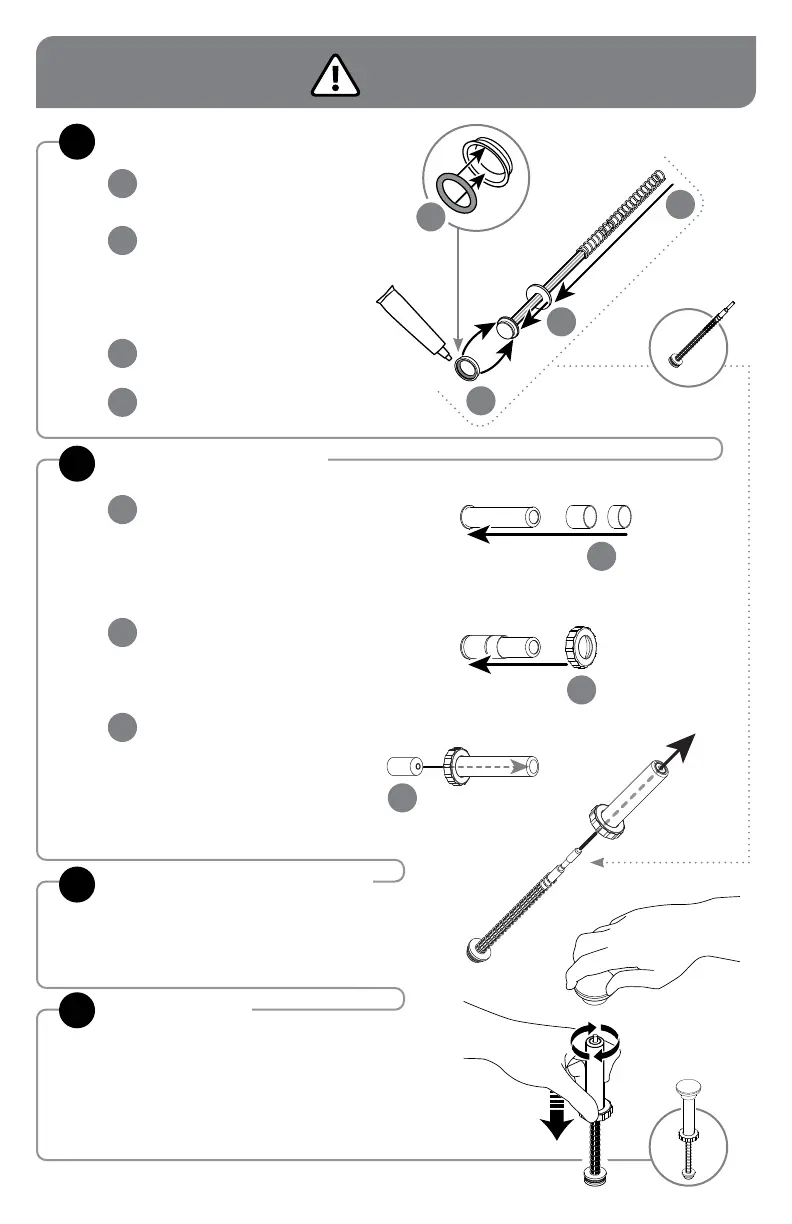

INSTALL SMALL O-RING
into seal.
INSTALL SEAL
onto piston head. Apply food equipment
lubricant to outside of seal.
TIP: Flared end of seal should
face away from piston head.
SLIDE WASHER onto piston.
SLIDE SPRING onto piston
A
B
C
D
PREPARE HEAD TUBE
SLIDE HEAD INSERT
(beveled edge rst)
into head tube.
TIP: The end
with smaller hole
should go in rst.
SLIDE LOCKING COLLAR
(threaded side down) towards ared
end of head tube.
INSERT PISTON ASSEMBLY
into head tube assembly.
3
INSTALL KNOB
Press head tube down to compress
spring and expose piston threads.
Rotate knob clockwise to secure.
4
B
C
C
A
B
D
1
2
SET ASIDE
FOR STEP 3
PREPARE PISTON
A
B
C
OPTIONAL:
ADD GAGING COLLAR(S)
Slide collar(s) onto head tube
to reduce portion size.
See page 2 for PORTION CONTROL.
A
ASSEMBLY
WASH ALL PARTS PROPERLY
BEFORE EVERY USE. See page 3.
