Servotronix CDHD2 - HMI Special Status Codes

CDHD2
Operator Panel (HMI) 11
HMI Special Status Codes
Power Up

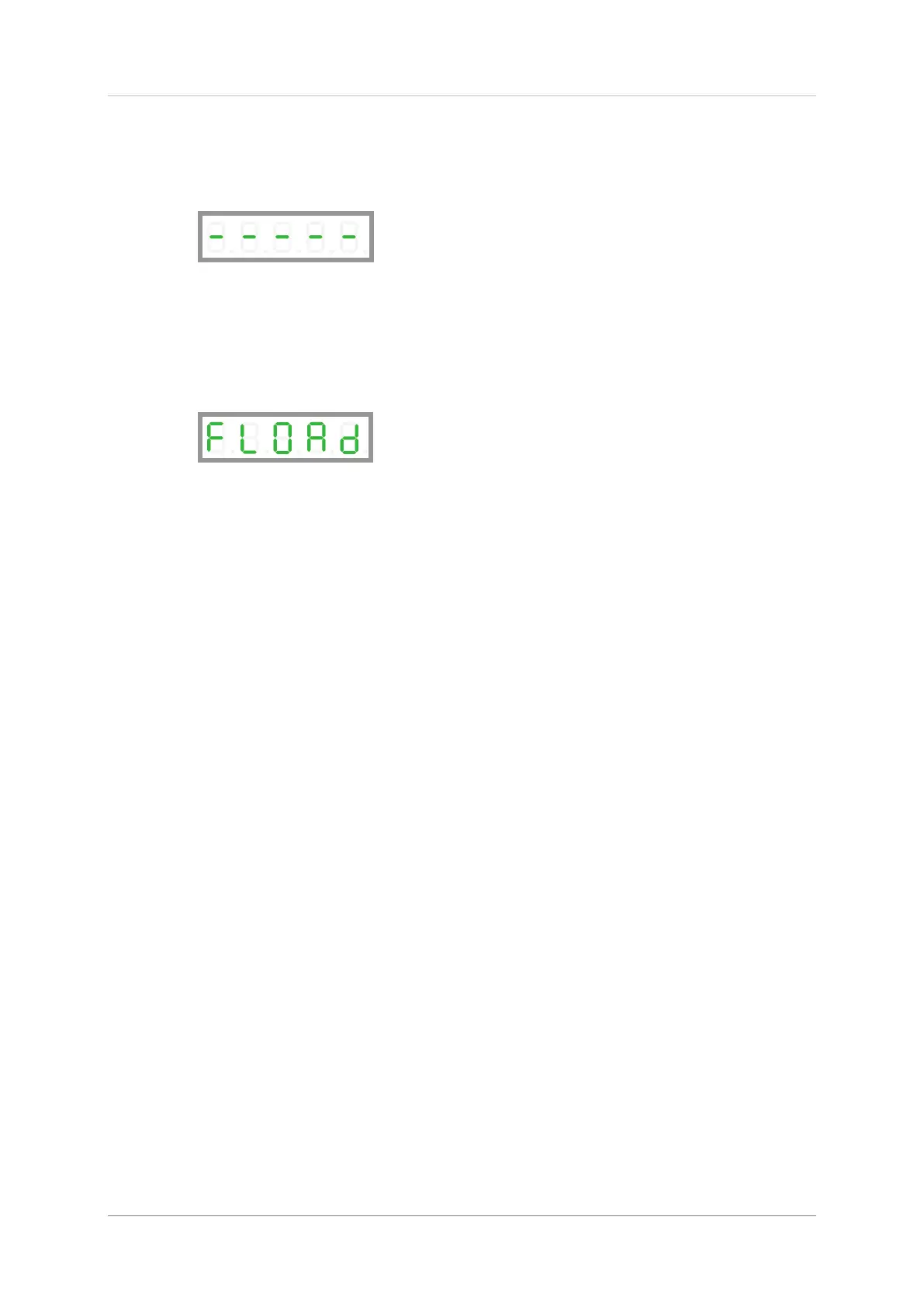

During power up, the digital display shows 5 dashes.
This code is also displayed when the Ember switch is activated, which sets the drive to serial
communication Boot-Up mode.
Ember Mode
During the firmware update process, the digital display shows:
