CDHD2

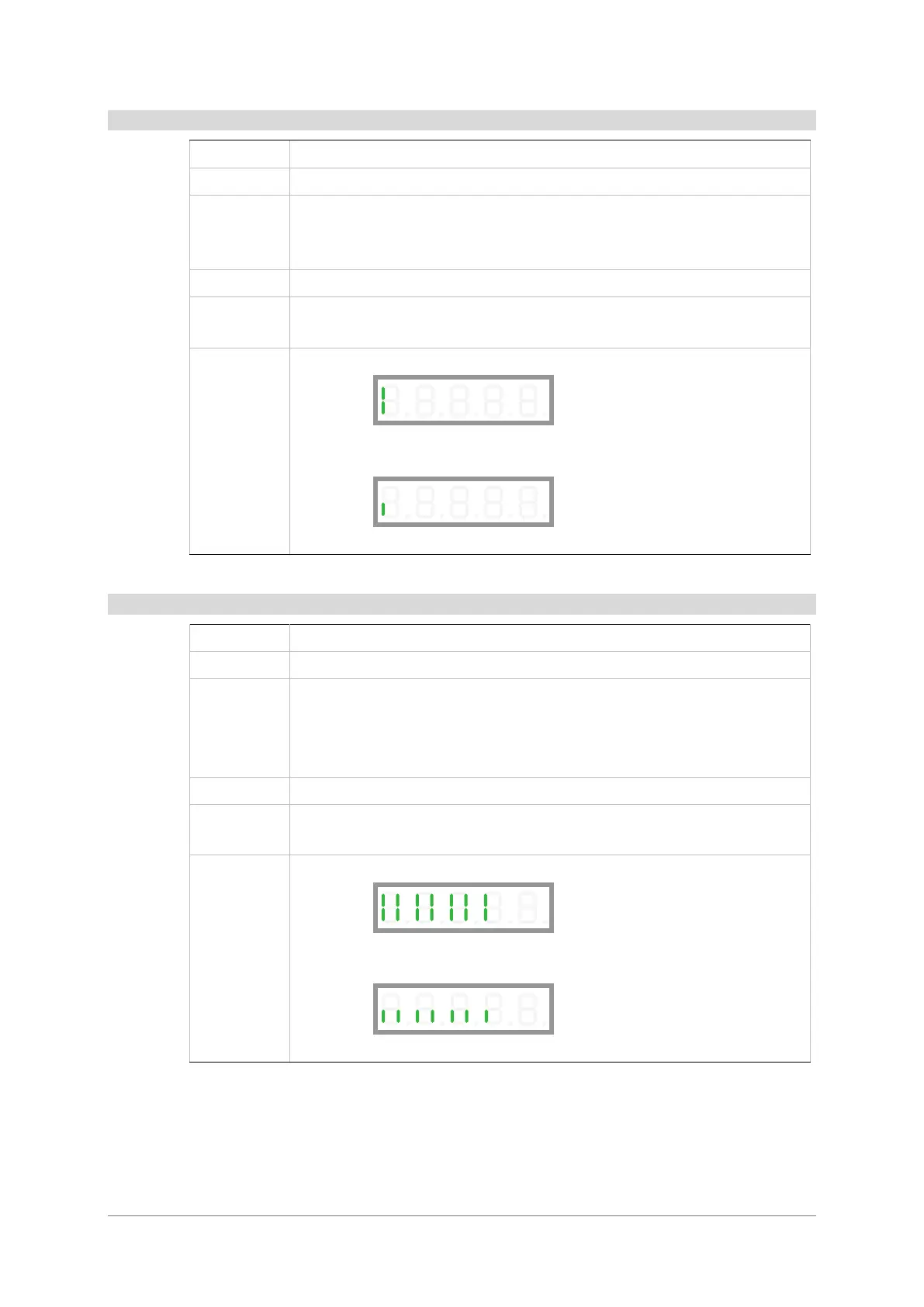

36 Operator Panel (HMI)
Digital Input 11
Code
d0005
Command
Digital Input 11 Status
Description
Indicates the state of digital input 11.
Double height line = on
Single height line = off
VarCom
IN
Sequence
Press: d0005
Press: Shift
Examples
Digital input 11 is on.
Digital input 11 is off.
Digital Outputs 1 through 7
Code
d0006
Command
Digital Outputs State
Description
Indicates the state of digital outputs 1 through 7.
Double height line = on
Single height line = off
Read from left to right.
VarCom
OUT
Sequence
Press: d0006
Press: Shift
Examples
Digital outputs 1 though 7 are all on.
Digital outputs 1 though 7 are all off.
