Servotronix CDHD2 - Digital I;O Monitoring

CDHD2
Operator Panel (HMI) 35
Actual Current
Code
d0003
Command
Motor Current
Description
Shows the motor current, in amperes.
If the current is a negative value, DP5 is lit.
VarCom
I
Sequence
Select: d0003
Press: Shift
Display: 0 0. # # #.
Examples
During motion, values change continuously.
00.178.
00.188.
00.192.
00.204.

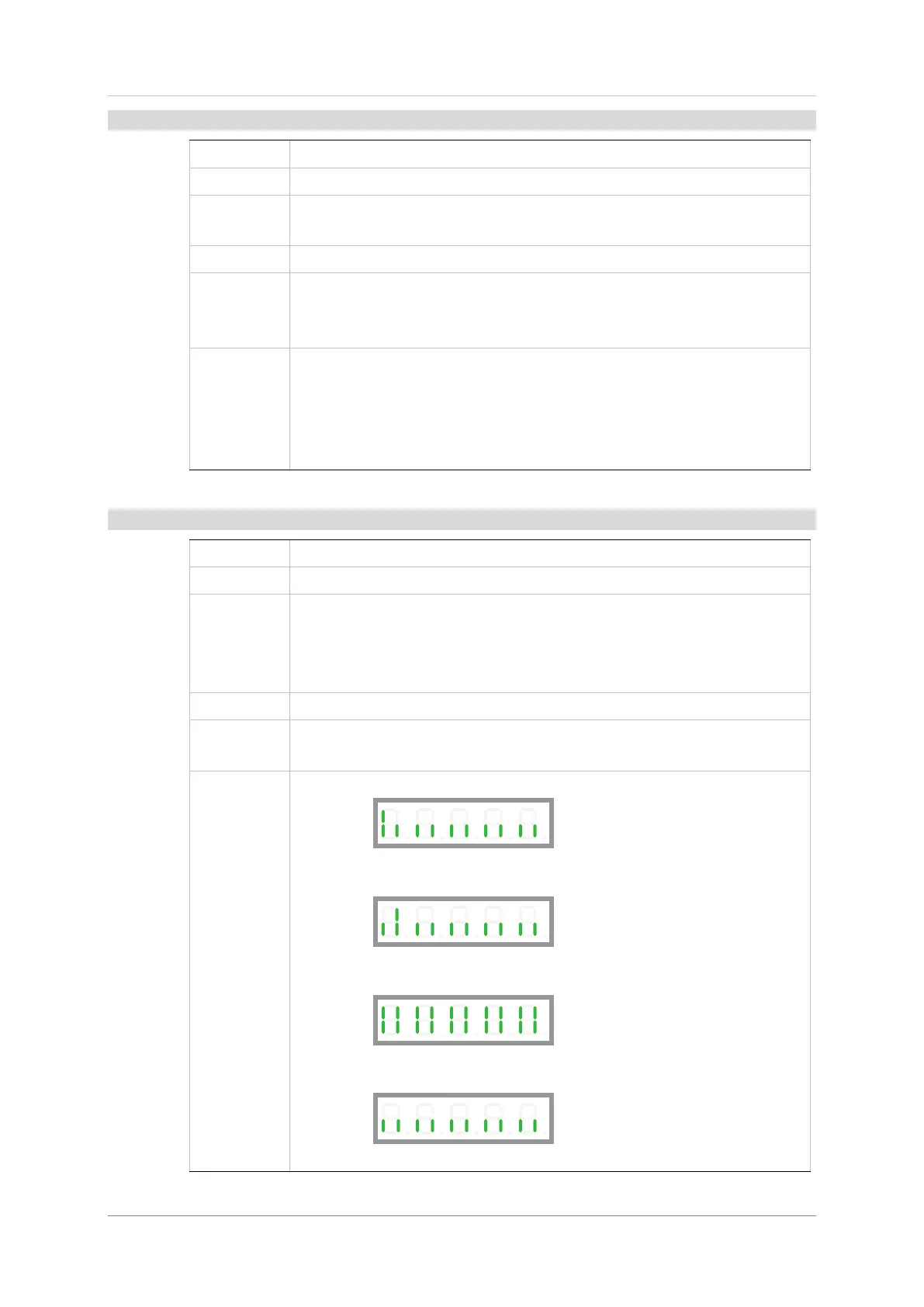

Digital Inputs 1 through 10
Code
d0004
Command
Digital Inputs State
Description
Indicates the state of digital inputs 1 through 10.
Double height line = on
Single height line = off
Read from left to right.
VarCom
IN
Sequence
Select: d0004
Press: Shift
Examples
Digital input 1 on. Digital inputs 2 through 10 off.
Digital input 2 on. Digital inputs 1, 3 through 10 off.
Digital 1 though 10 are all on.
Digital inputs 1 though 10 are all off.
