CDHD2

40 Operator Panel (HMI)

Faults History

Code

F0001

Command

Faults History

VarCom

FLTHIST

Example

Fe123: TP Read Failure

Fr20: Feedback Communication Error

Fe: Parameter Memory Checksum Failure

Fr25

: Pulse and Direction Input Line Break

Sequence

Select: F0001

Press: Shift

Display: Fr123

Press: Up

Display: Fr2

Press: Up

Display: Fe

Note

Since the same fault may have been triggered multiple times, you may need

to press the Up or Down key a number of times before the code changes.

Alternately, press and hold the Up or Down key. The longer you press the

key, the faster the scrolling.

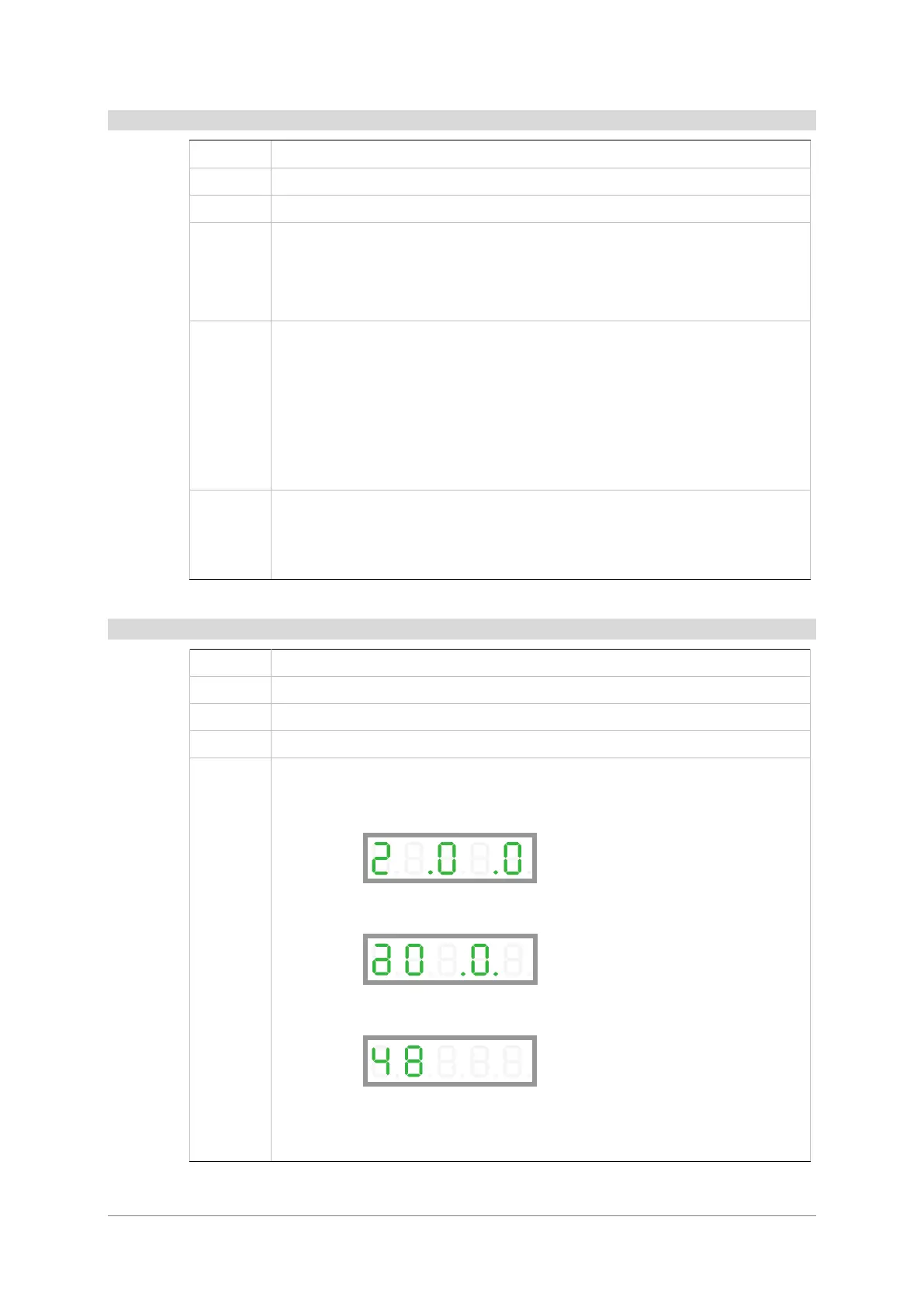

Firmware Version

Code

F0002

Command

Firmware Version

VarCom

VER

Example

Firmware version: 2.0.0a0.0.48

Sequence

Select: F0002

Press: Shift

Display:

Press: Shift

Display:

Press: Shift

Display:

Press: Shift

Display: 00000

Press: Shift (display returns to 2 .0 .0)
