Phone: 800-257-3872 • Fax: 978-264-0292 • setra.com © Setra Systems, Inc. All rights reserved. The Setra Systems name and logo are registered trademarks of Setra Systems, Inc.
Multi-Sense
®
Model 231
Multi-Congurable, Wet-to-Wet Differential Pressure Transducer

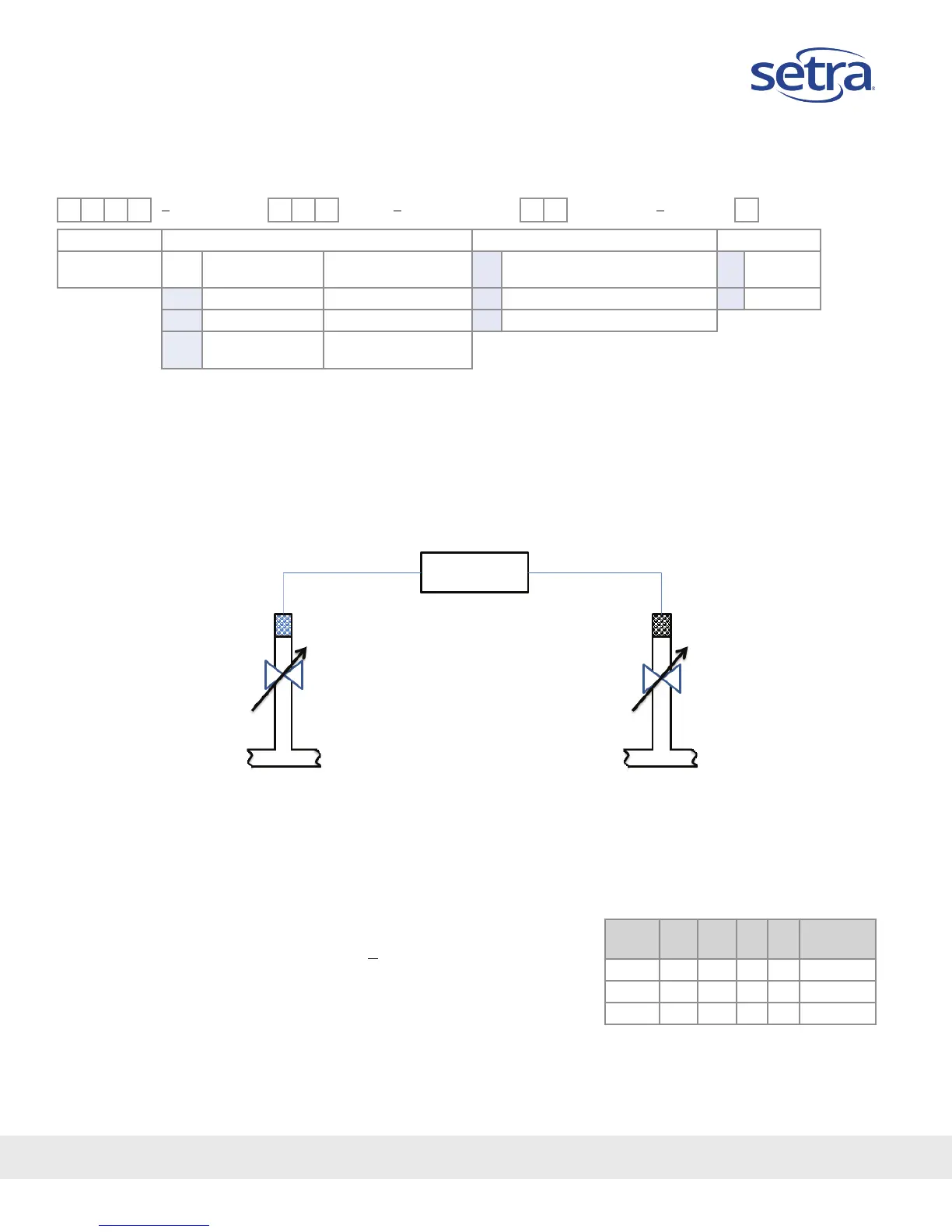

ORDERING INFORMATION
Model Range Specications
1
Pressure Connection Display
231G = 231 Unidirectional Bidirectional 2F
1/8-18 NPT female (Standard) Sensor
(Conduit Version)
N No Display
MS1 5, 10, 25, 50 PSID ±5, ±10, ±25, ±50 PSID 3V 3-V Manifold assembled w/ Model 231 D LCD Display
MS2 10, 20, 50, 100 PSID ±10, ±20, ±50, ±100 PSID 5V 5-V Manifold assembled w/ Model 231
MS3 25, 50, 125, 250 PSID ±25, ±50, ±125, ±250 PSID
1
Maximum line pressure is maximum range
of pressure ordered.
2 3 1 G
Ordering Example: 231GMS12FD = Model 231, 5 PSID up to 50 PSID, 1/8” NPT Int. Fitting, and LCD Display 31GMS13VN= Model 231, 0 to 5 PSID up to 50
PSI, 3-Valve Manifold, and No LCD Display
Valve A
1
High
Low Pressure
Remote Sensor
High Pressure
Remote Sensor
Valve B
1
Low
Valve A = High Side Valve
Valve B = Low Side Valve
1. Valves not included.
Examine the pressure application and determine what is the Highest System Line Pressure.
Determine what is the Dierential Pressure being measured.
Find the MAX. Line Pressure in the table on the right that is > to your Highest System Line Pressure.
Verify that your DP falls within the selectable ranges in that row.
Follow that row to the left and select that range code.
Example:
Highest System Line Pressure: 125 PSIG
Dierential Pressure Measured: 50 PSID
“Max Line Pressure” ≥ to System Line Pressure: 250 PSID (50 PSID DP falls within ranges in this row)
Select Range Code: MS3
Range
Code
A B C D Max. Line
Pressure
MS1 50 25 10 5 50
MS2 100 50 20 10 100
MS3 250 125 50 25 250
Pipe
Pipe
INSTALLATION
PRESSURE RANGE CODE SELECTOR (IMPORTANT: READ BEFORE ORDERING)
Model 231
SSP231 REV. K 04/2017
