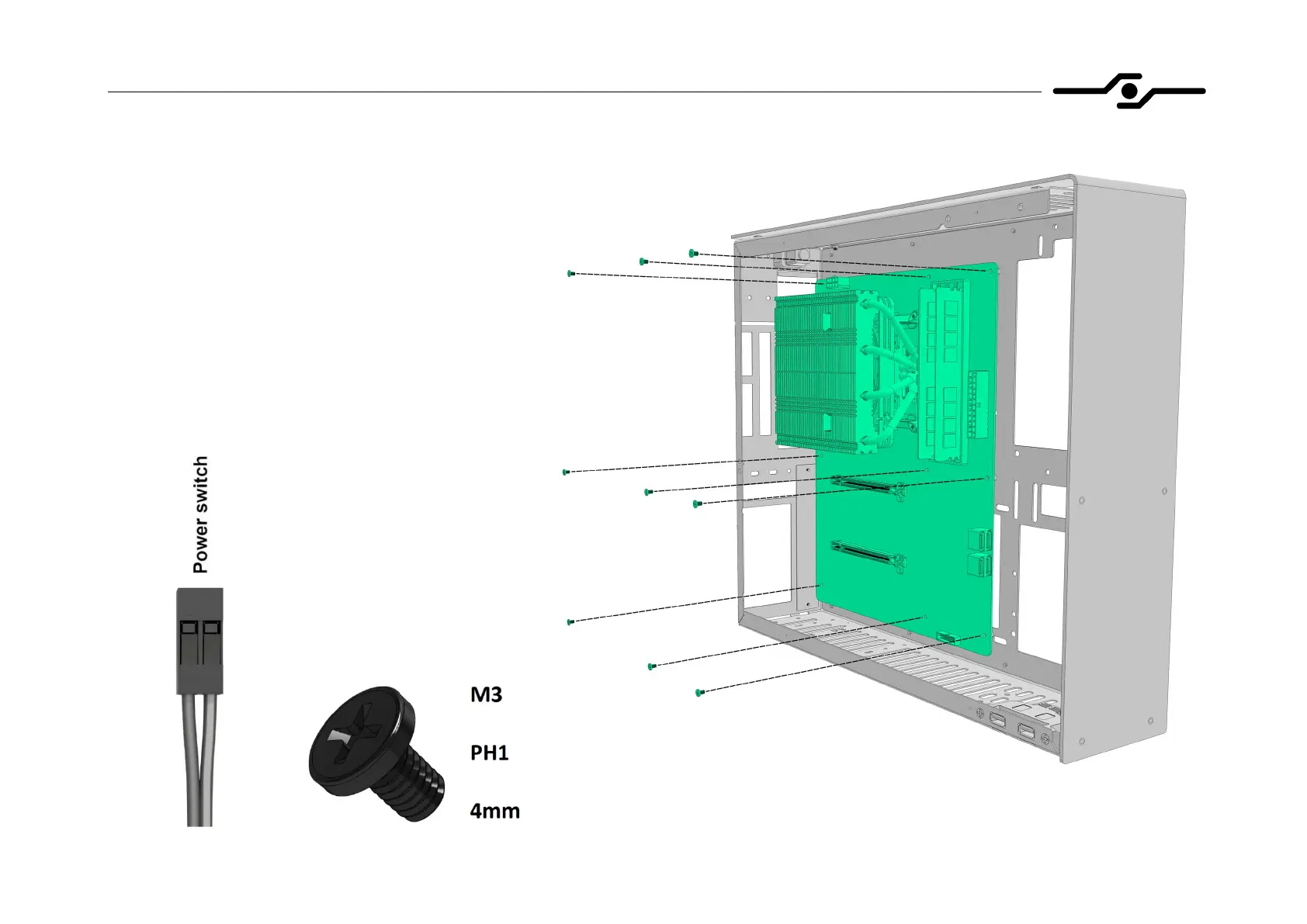

8. Installing the motherboard – bolts and cables
- prepare the motherboard by installing CPU,
RAM, M.2 drives, and CPU air cooler if using
one
- install the IO shield
- align the motherboard on standoffs
- screw the motherboard down using provided
bolts
- after installing the motherboard, connect
internal USB 3.0 cable and power switch
connector
- if you are not sure about motherboard
connector positions, please consult its manual
