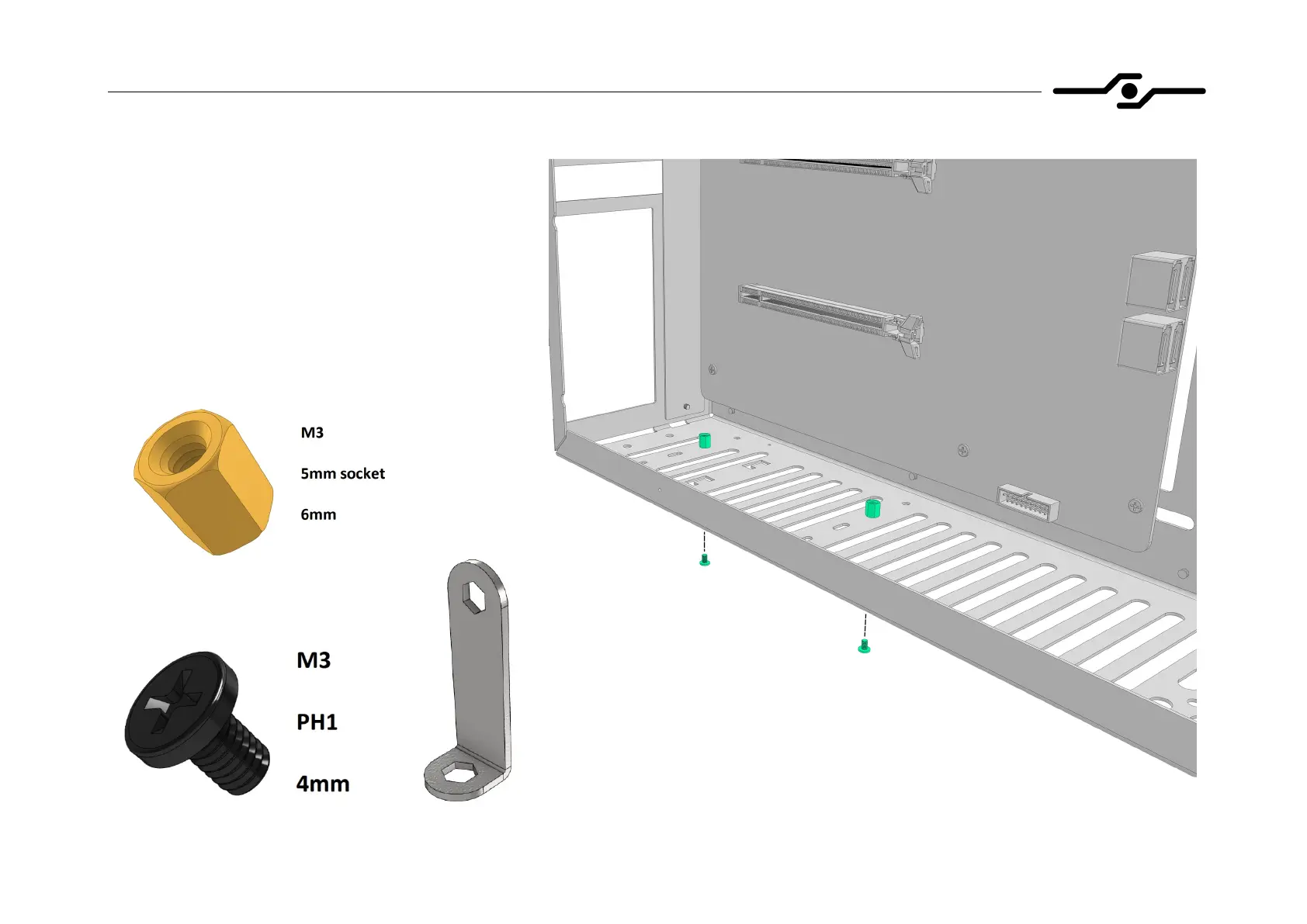

9. Installing GPU riser cable – preparing standoffs (up to 3 slot GPU)
- install standoffs the same way as motherboard
standoffs, using screwdriver and provided tool
- position standoffs according to your GPU thickness
- this picture shows standoffs installed for 2.3 - 3 slot
GPU, positions on the left are for 1 and 2 slot
GPUs, while position on the right is for 4 slot GPU
