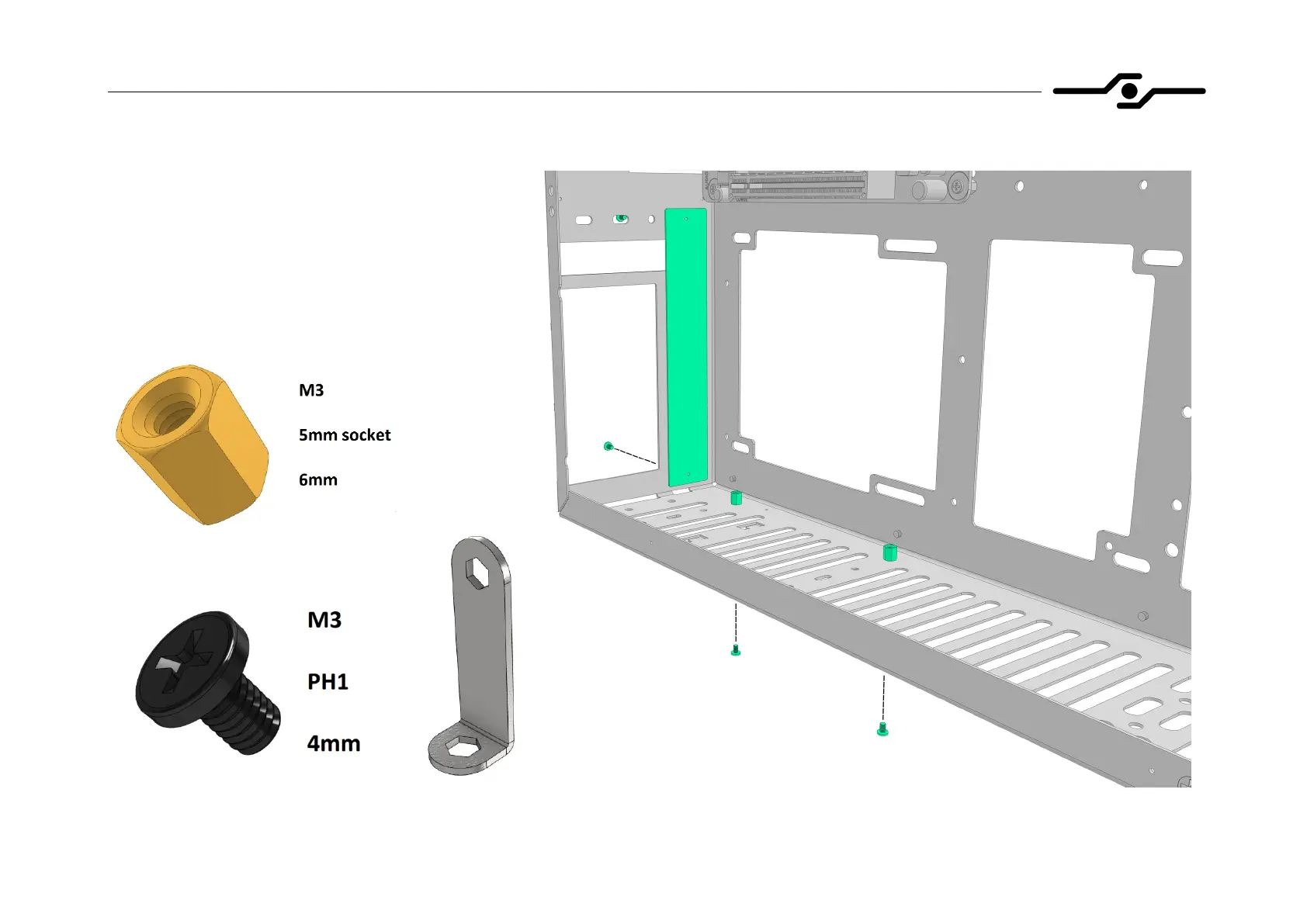

10. Installing GPU riser cable – preparing standoffs (4 slot GPU)
- if using 4 slot GPU install riser standoffs in the
rightmost position like shown in the picture
- remove the PCI cover by unscrewing two
bolts on the back of the case
- be sure to have ITX motherboard installed in
the alternative position if using tall 4 slot GPU
