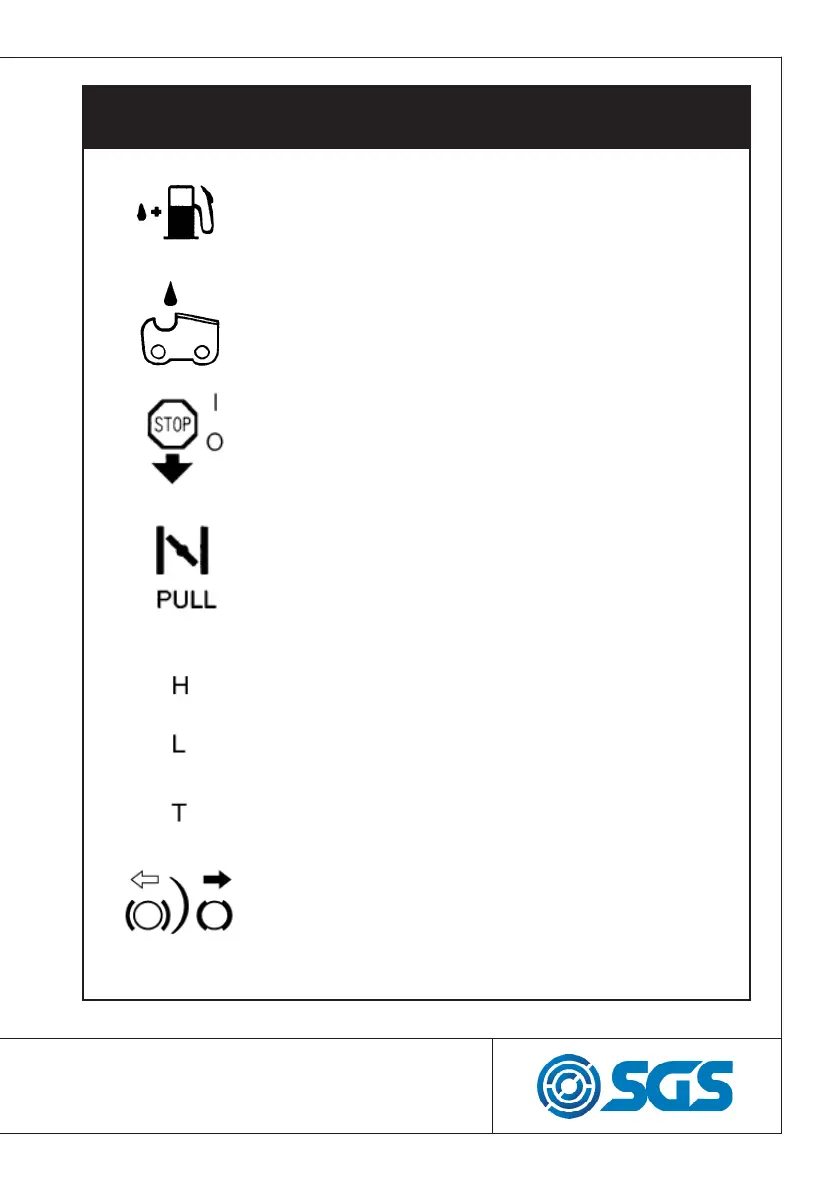

4. EXPLANATION OF SYMBOLS ON THE MACHINE
The port to refuel “MIXED PETROL”
Position: Fuel cap
The port to top up chain oil
Position: Oil cap
Starting the engine. If you pull out the choke
knob (at the back-right of the rear handle) to the
point of the arrow, you can set the starting mode
as illustrated.
Position: Upper-right of the aircleaner cover
The screw under the “H” stamp is The High-
speed adjustment screw.
The screw under the “L” stamp is The Slow-
speed adjustment screw.
The screw at the left of the “T” stamp is the
Idle adjustment screw.
Position: Left side of the rear handle
Shows the directions that the chain brake is re-
leased (white arrow) and activated (black arrow).
Position: Front of the chain cover
Setting the switch to the “O” position, the engine
stops immediately.
Position: Front at the top of the rear handle
