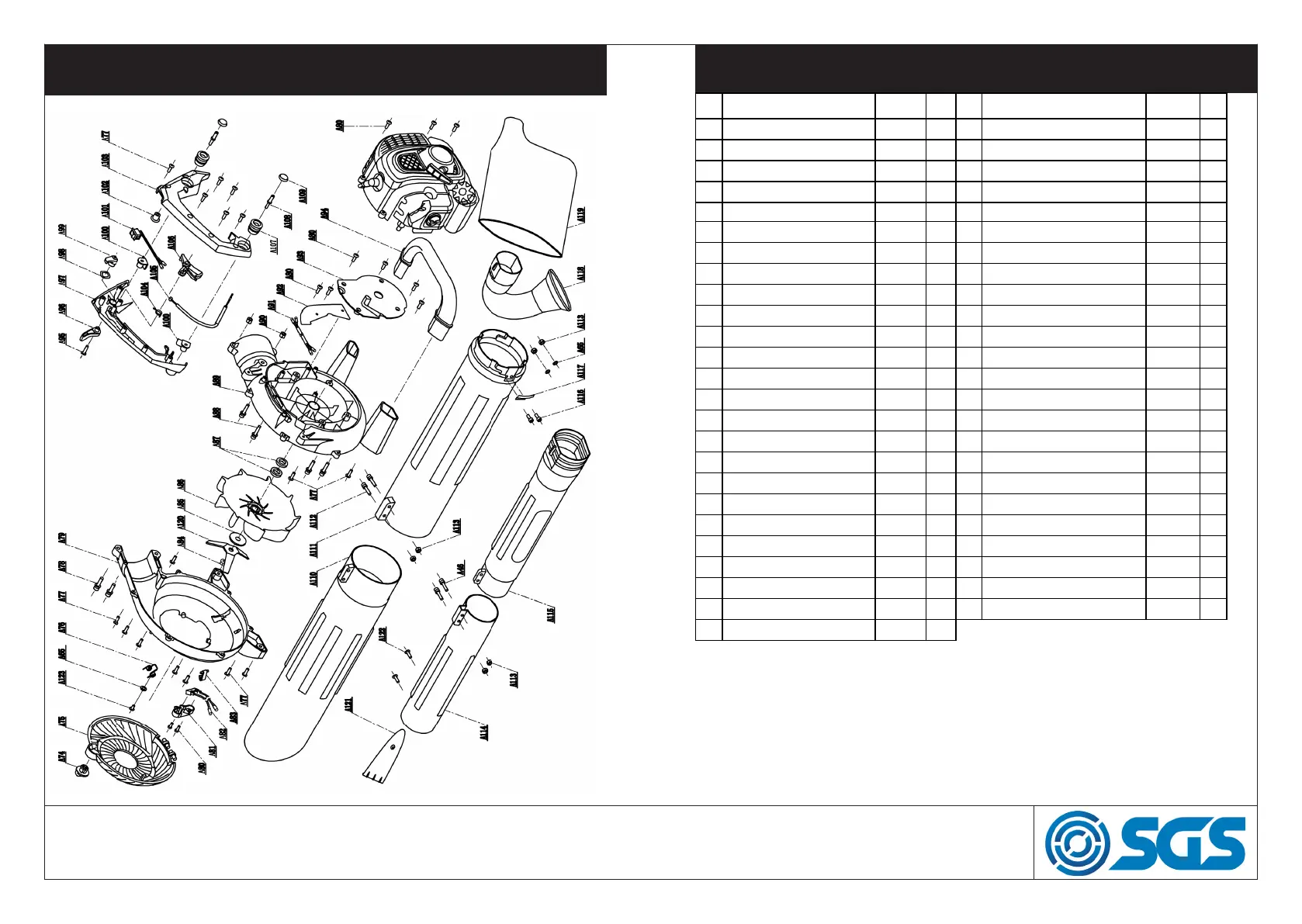

PARTS DIAGRAMS
PARTS LIST
No Part name Code Qty No Part name Code Qty
74
Air filter fixed nut 904032
1 99
Self-locking device 904057
2
75
Fan cover 904033
1 100
Anti-vibration handle 904058
1
76
Safety Guard spring 904034
1 101
Flameout Switch 904059
1
77
Bolt ST4 8x16 904035
16 102
Anti-vibration 904060
1
78
Bolt M6x25 902554
2 103
Right handle 904061
1
79
Fan Volute Cover 904037
1 104
Torison spring trigger 904062
1
80
Bolt ST4 2x12 904038
11 105
Throttle lines 904063
1
81
Flameout Switch Cover 904039
1 106
Trigger 904064
1
82
Flameout Switch 904040
1 107
Anti-vibration 904065
2
83
Rotary valve 904041
1 108
Bolt ST4 8x16 904066
2
84
Nut M8x1 904042
1 109
Dust Proof Cover 904067
2
85
Washer 8.5x32x2 904043
1 110
Suction pipe 904068
1
86
Impeller 904044
1 111
Suction pipe 904069
1
87
Bearing 61802 904045
2 112
Bolt M5x25 901958
2
88
Bolt M5x30 904046
4 113
Nut M5 902019
6
89
Fan voulte 904047
1 114
Blower nozzle pipe 904073
1
90
Nut M6 904048
2 115
Bolt M5x12 904074
1
91
Connecting Lines 904049
1 116
Flameout plate 904075
2
92
Heat Instalation Fan Volute 904050
1 117
Connector pipe 904076
1
93
Back plate fan volute 904051
1 118
Collection bag 904077
1
94
Handgrip 904052
1 119
Shredded Blade 904078
1
95
Bolt ST4 8x25 904053
1 120
Nozzle pipe protection 904079
1
96
Self-locking handle 904054
1 121
Bolt ST4 8x12 904080
2
97
Left handle 904055
1 122
Bolt ST4 2x8 904081
1
98
Wave Washer 904056
1
