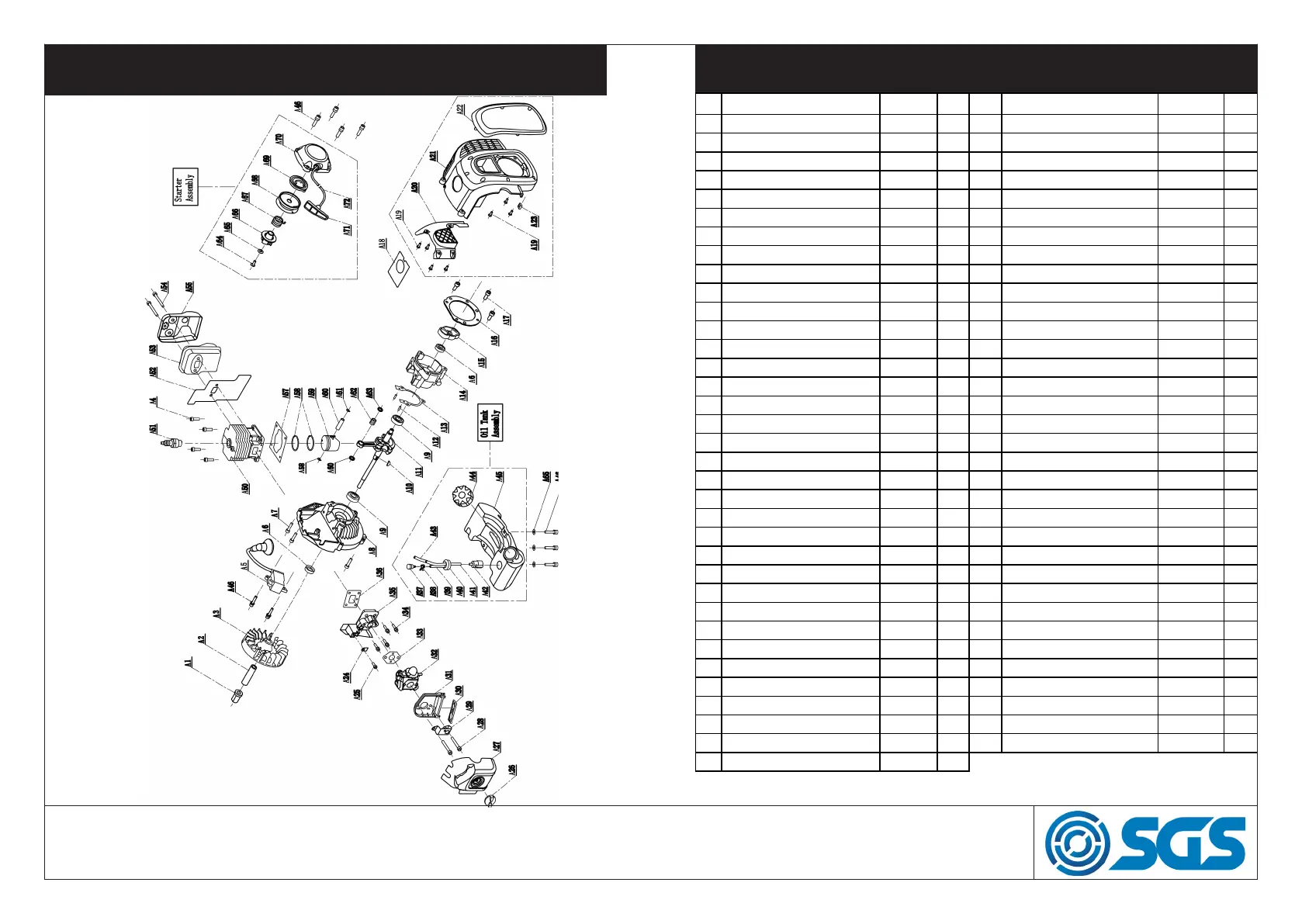

PARTS DIAGRAMS
PARTS LIST
No Part name Code Qty No Part name Code
Qty
1 Impeller shaft 904082 1 36 Insulator Gasket 904117
1
2 Sleeve 8.5x14x52 904083 1 37 Suction Mouth 904118
1
3 Rotor 904084 1 38 Clamp 904119
1
4 Bolt M5x16 904085 4 39 Fuel pipe 2.5x5x40 904120
1
5 Ignition coil 904086 1 40 Pipe set 904121
1
6 Oil Seal 12x22x7 904087 2 41 Fuel pipe 3x5x190 904122
1
7 Bolt M5x20 903960 3 42 Fuel filter 904123
1
8 Right crankcase 904089 1 43 Fuel Pipe 2.5x5x80 904124
1
9 Bearing 6001 904090 2 44 Oil tank cap 904125
1
10 Key 3x5x13 904091 1 45 Oil tank 904126
1
11 Crankshaft 904092 1 46 Bolt M5x20 903960
7
12 Pin 5x10 904093 2 50 Cylinder 904128
1
13 Crankcase Gasket 904094 1 51 Spark plug BM6A 904129
1
14 Left Crankcase 904095 1 52 Muffer gasket 904130
1
15 Start plate 904096 1 53 Muffer 904131
1
16 Starter Connection plate 904097 1 54 Bolt M5x55 903999
2
17 Bolt M6x12 902350 3 55 Heat Insulation Muffer 904133
1
18 Cylinder cover plate 904099 1 57 Cylinder Gasket 904134
1
19 Bolt ST3.5x10 904100 8 58 Piston Ring 904135
2
20 Guide Plate 904101 1 59 Piston 904136
1
21 Cover of Cylinder 904102 1 60 Piston pin 904137
1
22 Decorated Frame 904103 1 61 Piston nap 904138
2
23 Square Nut M5 904104 1 62 Bearing 8x11x9 904139
1
24 Bearing plate 904105 1 63 Washer 904140
2
25 Bolt M4x10 904106 1 64 Bolt M5x10 901696
1
26 Air filter fixed nut 904107 1 65 Washer 5.2x12x1 904142
7
27 Air filter cover 904108 1 66 Ratchet 904143
1
28 Bolt M5x45 901713 2 67 Torsion Spring 904144
1
29 Air filter plate 904110 1 68 Rope Wheel 904145
1
30 Filter Screen 904111 1 69 Spring 904146
1
31 Air filter Set 904112 1 70 Starter Cover 904147
1
32 Carburetor 904113 1 71 Starter Knob 904148
1
33 Carburetor Gasket 904114 1 72 Rope 3x800 904149
1
34 Bolt M4x20 903817 4 73 Bolt M5x20 903960
4
35 Insulator 904116 1
