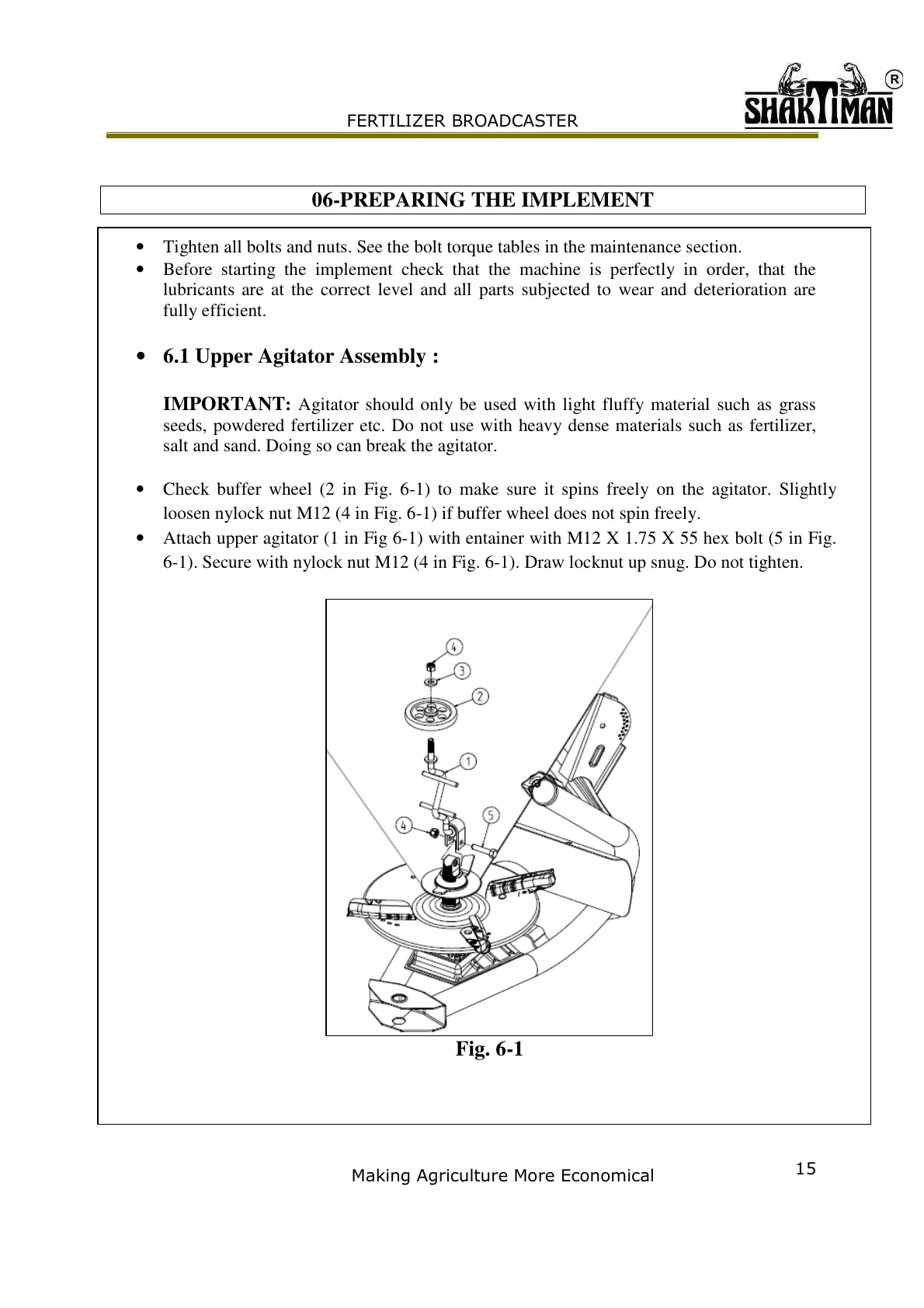

06-PREPARING THE IMPLEMENT
• Tighten all bolts and nuts. See the bolt torque tables in the maintenance section.
• Before starting the implement check that the machine is perfectly in order, that the
lubricants are at the correct level and all parts subjected to wear and deterioration are
fully efficient.
• 6.1 Upper Agitator Assembly :
IMPORTANT
: Agitator should only be used with light fluffy material such as grass
seeds, powdered fertilizer etc. Do not use with heavy dense materials such as fertilizer,
salt and sand. Doing so can break the agitator.
• Check buffer wheel (2 in Fig. 6-1) to make sure it spins freely on the agitator. Slightly
loosen nylock nut M12 (4 in Fig. 6-1) if buffer wheel does not spin freely.
• Attach upper agitator (1 in Fig 6-1) with entainer with M12 X 1.75 X 55 hex bolt (5 in Fig.
6-1). Secure with nylock nut M12 (4 in Fig. 6-1). Draw locknut up snug. Do not tighten.
Fig. 6-1
