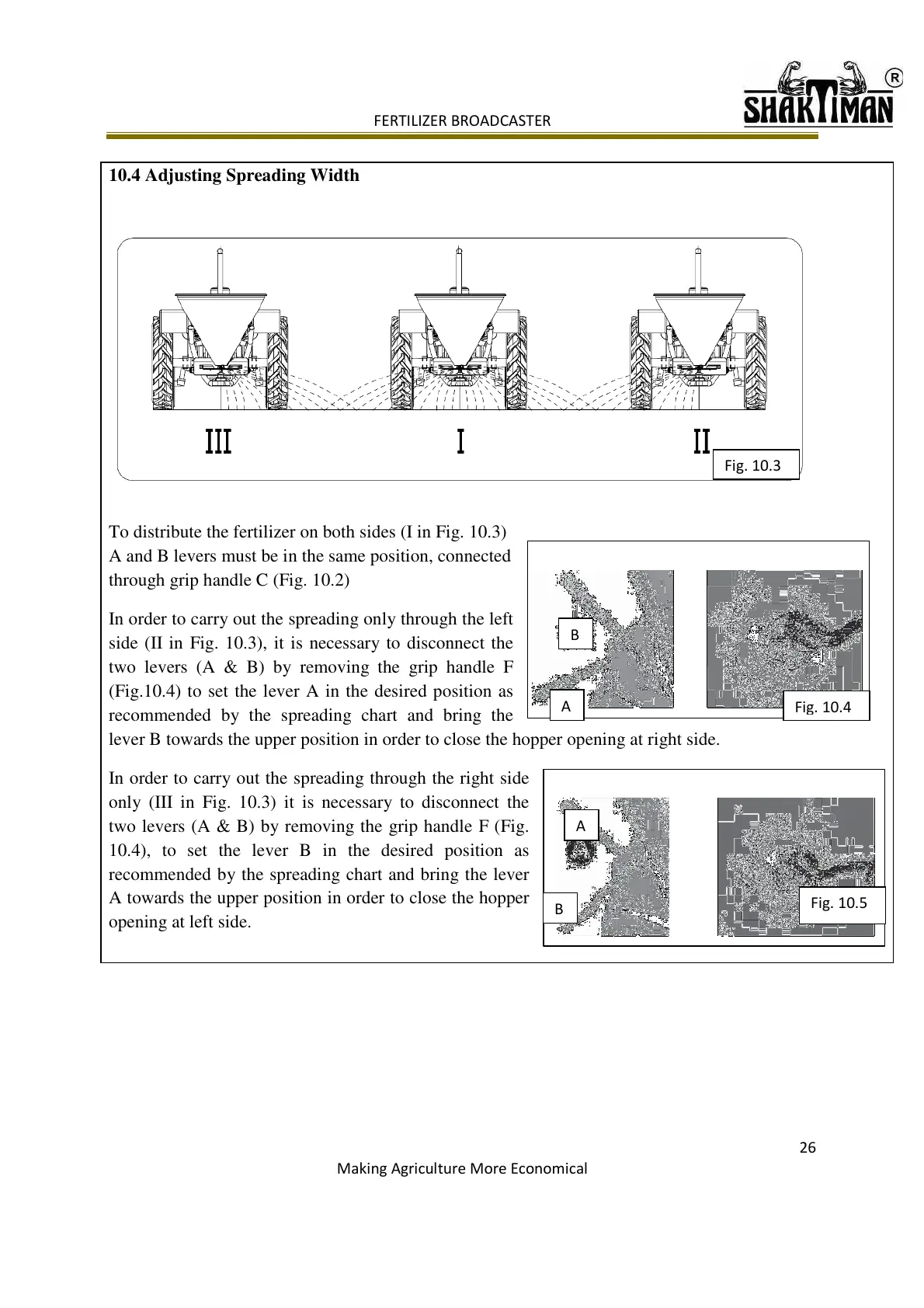

10.4 Adjusting Spreading Width
To distribute the fertilizer on both sides (I in Fig. 10.3)
A and B levers must be in the same position, connected
through grip handle C (Fig. 10.2)
In order to carry out the spreading only through the left
side (II in Fig. 10.3), it is necessary to disconnect the
two levers (A & B) by removing the grip handle F
(Fig.10.4) to set the lever A in the desired position as
recommended by the spreading chart and bring the
lever B towards the upper position in order to close the hopper opening at right side.
In order to carry out the spreading through the right side
only (III in Fig. 10.3) it is necessary to disconnect the
two levers (A & B) by removing the grip handle F (Fig.
10.4), to set the lever B in the desired position as
recommended by the spreading chart and bring the lever
A towards the upper position in order to close the hopper
opening at left side.
