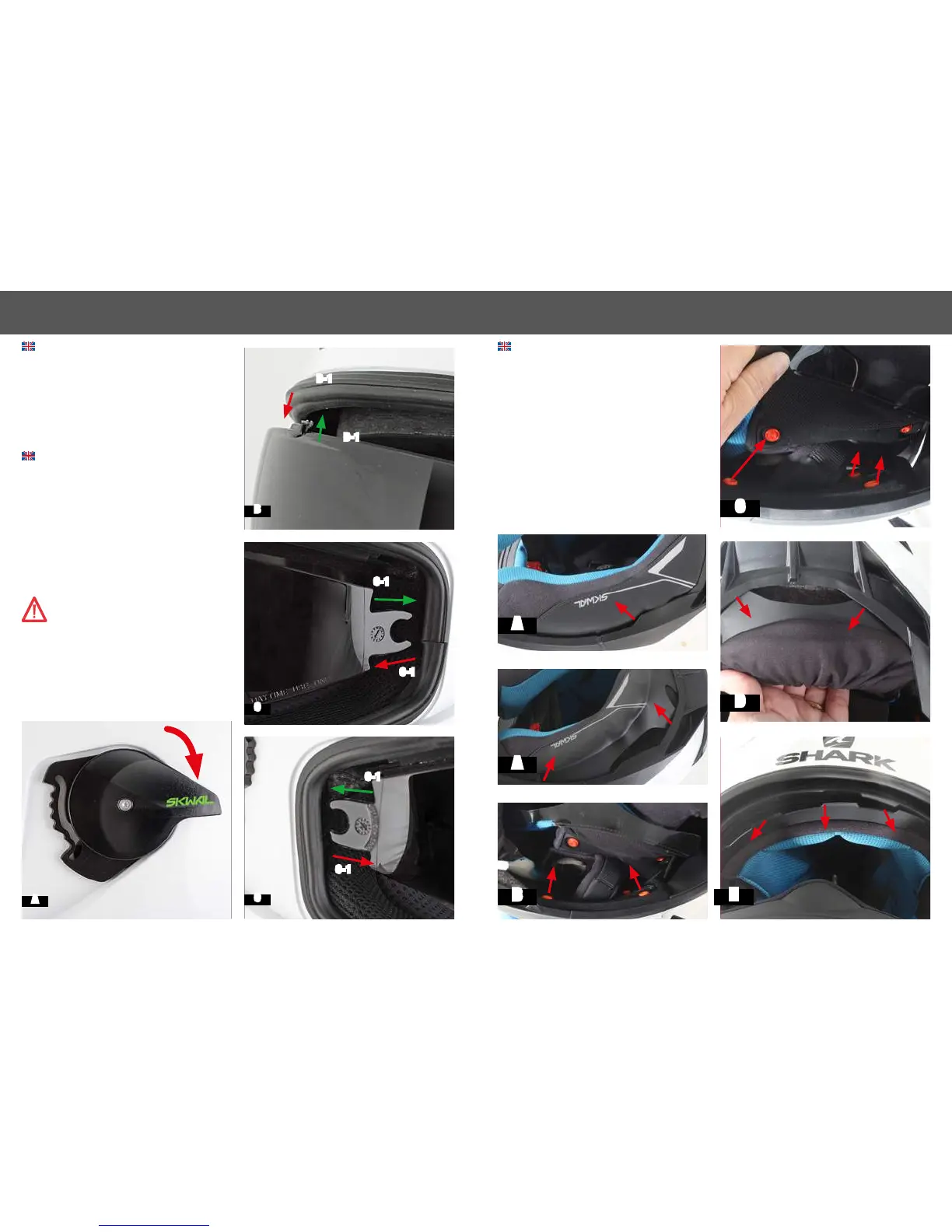

SUN VISOR
REMOVAL (A)
- Move the sun shield to the lower position (A).
- Pull the sun shield delicately downward. (B-1).
- Pull the sun shield forward, one side at a
time, to unclip it from the mounting points in
the helmet (C-1).
REPLACEMENT (B)
- Move the handling button to the low position
(A).
- Push, at one side at a time, the sun shield
forward to clip it onto the mounting points in
the helmet (C-1).
- And then clip the sun shield back on by lifting
it slightly (C-1).
WARNING! If you are not sure that you pro-
perly replaced the sun shield, do not use the
helmet. The sun shield could suddenly and without
warning become detached from the helmet while ri
-
ding, causing you to lose control of your motorcycle,
resulting in an accident, personal injury, or death.
Contact your retailer for any assistance or advice.
TEXTILE PARTS - REMOVAL
REMOVAL
- Turn your helmet over.
- Separate the two parts of the chin strap.
- Remove the neck pad by holding one of its sides.
Pull out the end and then detach its rear section (Fig.
A).
- Unclip the two cheek pads (Fig. B) and slide them
along the chin straps to extract them.
- Withdraw the rear part of the head section from its
housing in order to remove it (Fig. C -D).
- To complete the operation, unclip the front of the
head section, starting with one side (Fig. E) and re
-
move the head section.
