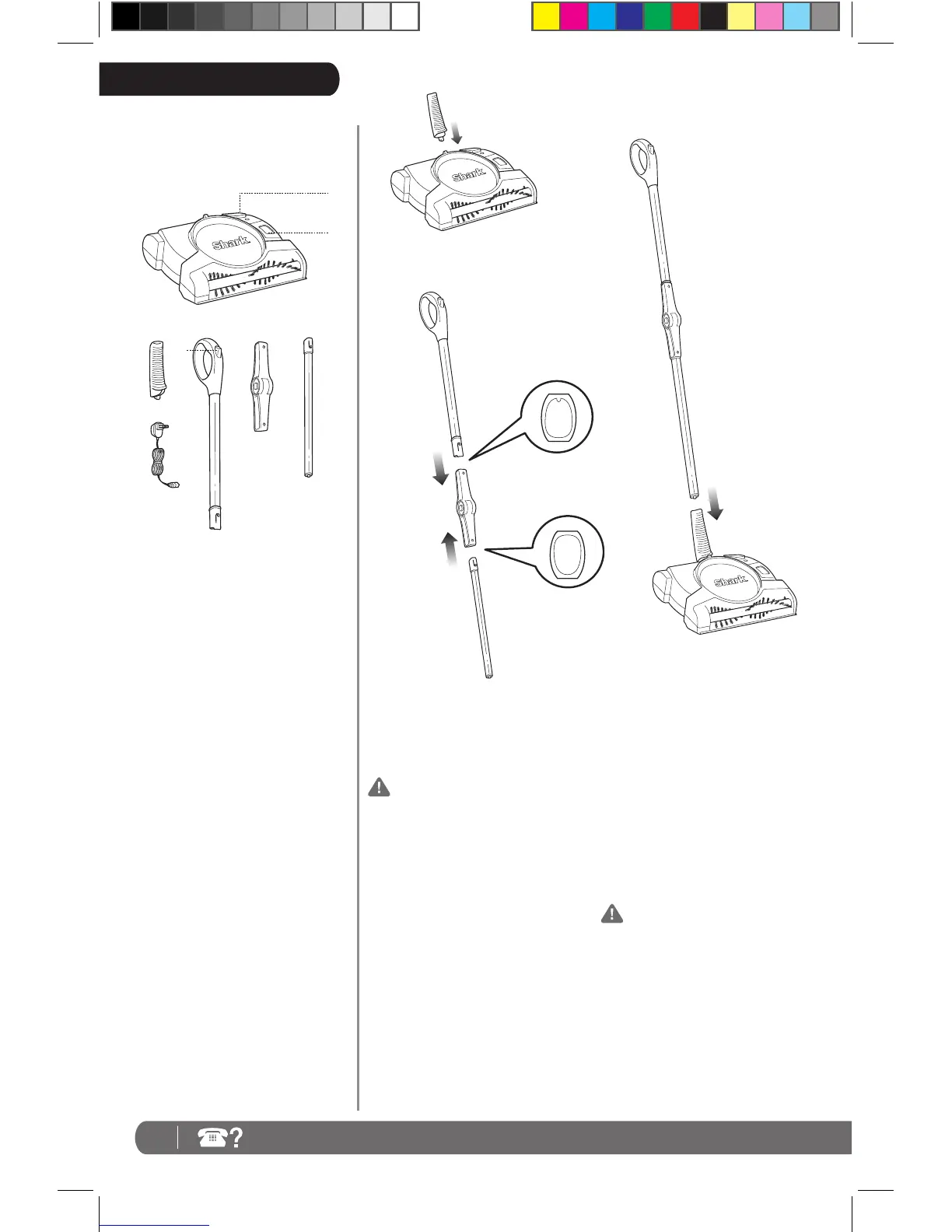

ASSEMBLY OF YOUR FLOOR
AND CARPET SWEEPER:
NOTE: The charging adapter
and lower handle will be
shipped inside the packaging.
1 Insert the smaller end of the
lower handle into the top of the
unit. Push until firmly in place.
(Fig. 1)
2 Slide the upper pole (the tube
with the handle) into the end
of the Shark
®
Backsaver
™
joint
that has a small notch in it (a).
Then slide the lower pole into
the other end of the joint (b).
Push it in until it clicks into
place. (Fig. 2)
COMPONENTS:
A Main Unit
B Power Button
C Dust Container
D Lower Handle
E Backsaver
™
Release Button
F Upper Pole with Handle
G Shark
®
Backsaver
™
Joint
H Lower Pole
I Charging Adapter
Fig. 2
Fig. 3
Model Number: V2930 32
Voltage: 4.8 V
E
A
ASS EM BLY
H
F
G
I
3 Insert the Shark
®
Backsaver
™
folding handle you just
assembled into the top of the
lower handle. You should hear
the locking tab click into place.
(Fig. 3)
IMPORTANT: Charge the
batteries for 7 hours before
using the unit for the first time.
See page 7 for instructions on
charging your unit.
Fig. 1
D
B
C
a
b
