Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
24
13N-M100B/150B
CN13M10B
Ref. No. Part No. ★ Description Code
PICTURE TUBE
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
Ref. No. Part No. ★ Description Code
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by å and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call Toll-
Free; 1-800-BE-SHARP
★ MARK: SPARE PARTS-DELIVERY SECTION
▲ MARK: X- RAY RELATED PARTS
LISTE DES PIECES
CHANGE DES PIECES
Les pi`eces de rechange qui pr élelesentent ces caract éleristiques
sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les
pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep
éler élee par la marque å et sont hachur élees dans les listes de
pi`eces et dans les diagrammes sch élematiques.
La substitution d'une pi`ece de rechange par une autre qui ne pr
éLesente pas les m éoemes caract éLeristiques de s élecurit éle que
la pi`ece recommand élee parl'usine et dans ce manuel de service,
peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.
"COMMENT COMMANDER LES PIECES DE RECHANGE"
Pour que votre commande soit rapidement et correctement remplie,
veuillez fournir les renseignements suivants.
1. NUMERO DU MODELE 2. NO. DE REF
3. NO. DE PIECE 4. DESCRIPTION
in CANADA: Contact SHARP Electronics of Canada Limited
Phone (416) 890-2100
★MARQUE: SECTION LIVRAISON DES PIECES DE RECHANGE
▲ MARQUE: PIECES RELATIVE AUX RAYONS X

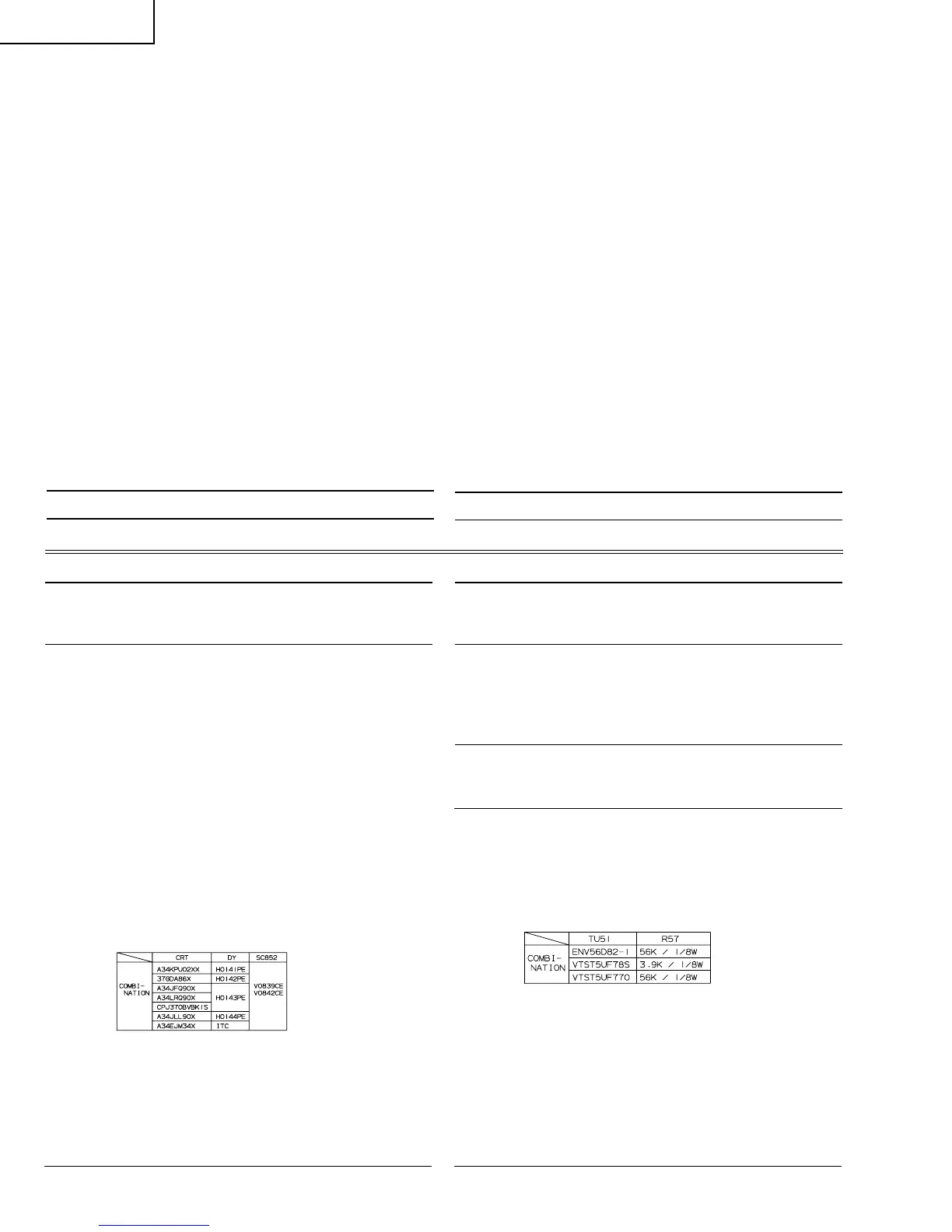

'åV101 VB37GDA86X/1E R CRT (DY601: H0142PE) CB
or
VB34KPU02X/*S CRT (DY601: H0141PE)
or
VB34JFQ90X/*S CRT (DY601: H0143PE)
or
VB34LRQ90X/*S CRT (DY601: H0143PE)
or
VB370BVBK1S-S CRT (DY601: H0143PE)
or
VB34JLL90X/*S CRT (DY601: H0144PE)
or
VB34EJM34X/1E CRT (I.T.C.)
'åDY601 RCiLH0142PEZZ R DY (CRT: 37GDA86X) AZ
or
RCiLH0141PEZZ DY (CRT: A34KPU02XX)
or
RCiLH0143PEZZ DY (CRT: CPJ370BVBK1S
or or A34JFQ90X
or A34LRQ90X)
RCiLH0144PEZZ DY (CRT: A34JLL90X)
å L703 RCiLG0092PEZZ R Degaussing Coil AK
or
RCiLG0077PEZZ
or
RCiLG0386PEZZ
PMAGF3045CEZZ R Purity Magnet AG
QEARC1436PEZZ R Grounding Strap AE
PWB-A DUNTKA358WEV0 –
MAIN Unit (13N-M100B/150B)
—
PWB-A DUNTKA358WEV3 – MAIN Unit (CN13M10B) —
PWB-B DUNTKA359WEV0 –
CRT Unit (13N-M100B/150B)
—
PWB-B DUNTKA359WEV3 – CRT Unit (CN13M10B) —
TUNER
NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT INDEPENDENTLY.
å TU51 VTUVTST5UF770 J Tuner AZ
or
VTUVTST5UF78S
or
VTUENV56D82-1
INTEGRATED CIRCUITS
'åIC201 RH-iX3354CEZZ J LX3354CE AT
IC351 VHiAN7511//-1 J AN7511 AK
å IC501 VHiLA7840//-1 J LA7840 AR
å IC701 VHiTEA1507/-1 J TEA1507P/N1 AL
å IC702 RH-FX0034CEZZ J PC817 AE
or
RH-FX0002GEZZ
or
RH-FX0029CEZZ
PWB-A: DUNTKA358WEV0 (13N-M100B/150B)
PWB-A: DUNTKA358WEV3 (CN13M10B)
MAIN UNIT
To Next Page
