Sharp 13VT-K100 - Disassembly and Reassembly Procedures; Rear Cover and CRT PWB Removal; Main PWB and VCR Unit Removal

13VT-K100/150
13VT-CK10
9

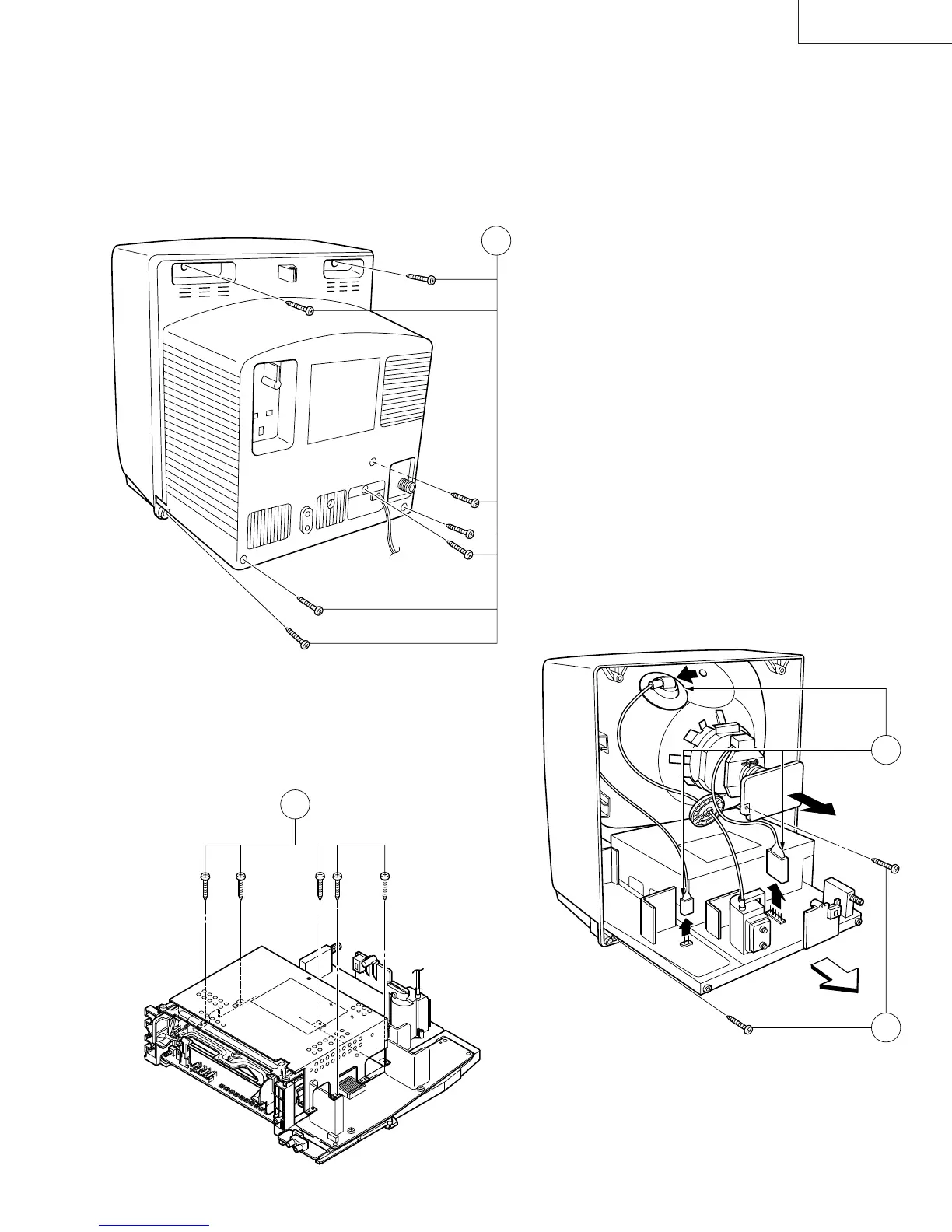

1. Remove the 7 rear cover fixing screws and detach the rear cover.
2. Take out the anode cap, CRT PWB, connectors K and M, coating earth, Speaker chip fixing screws and others.
3. Take out the main PWB unit and the VCR unit.
4. Remove the 5 VCR fixing screws, and detach the shielding case.
DISASSEMBLY AND REASSEMBLY
1
4
3
2
K
M
