Sharp 14U10 - Schematic Diagram: Main Unit (14 U10;15); Main Unit Schematic Sections

14U10/15
14U20/25
14U10/15
14U20/25
1234567891011 12 13 14 15 16 17 18 19 20
A
B
C
D
E
F
G
H
I
J
34~35

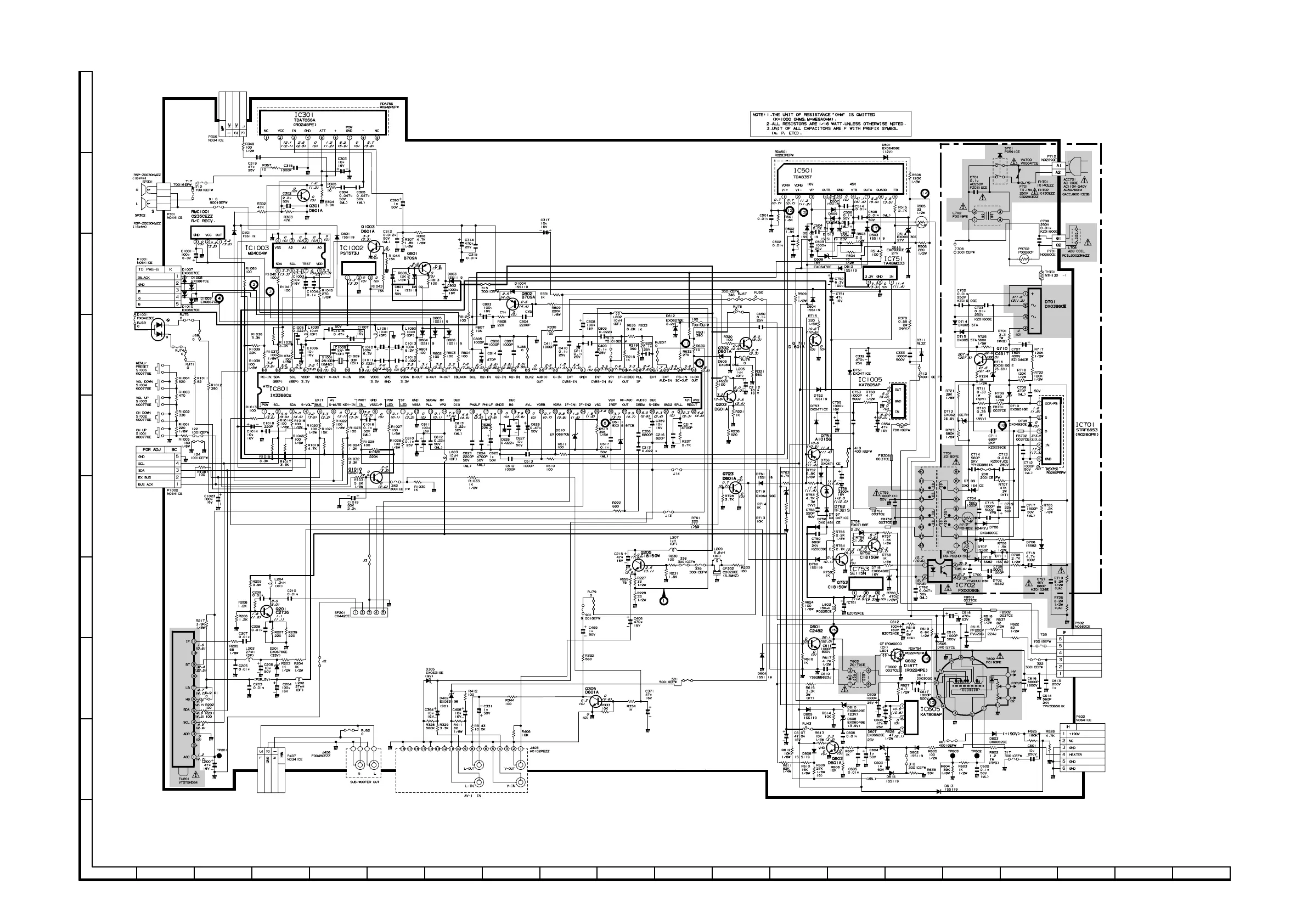

SCHEMATIC DIAGRAM: MODEL 14U10/15 MAIN Unit
RESET
