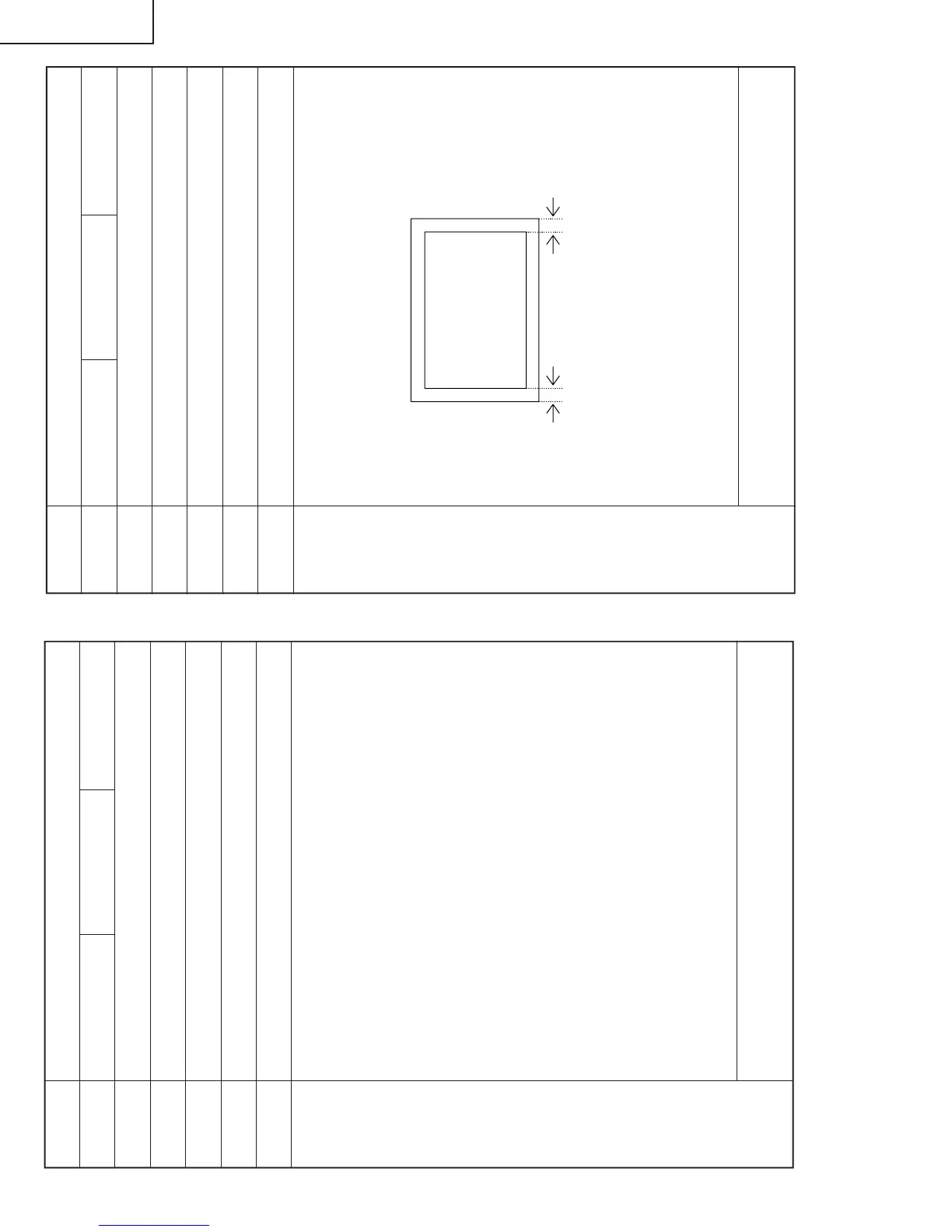

ADJUSTMENT ITEM ADJUSTMENT POSITION CONTROL PRE-ADJUST REQUIREMENT CONTENT INPUT CONDITION OUTPUT
ADJUSTMENT PROCEDURE
V-PHASE
V06 STEP RANGE 0-7
I
2
C CONTROL
OPTION SET UP, BUS SET UP, CRT-PURITY US 4 CH LION HEAD (MONOSCOPE PATTERN) 120V, RF INPUT, ZERO MAGNETIC FIELD CONFIRMATION ON CRT SCREEN
ADJUST V06 BUS DATA TO HAVE MOST ACCEPTABLE VERTICAL PO- SITION. THE MONOSCOPE PATTERN SHOULD BE BALANCE IN VERTICAL POSITION NOTE: THE DATA FOR V06 LIMIT AT <= 04, EVEN POSITION GOOD ENOUGH
[CHECKING CONFIRMATION]
ADJUSTMENT ITEM ADJUSTMENT POSITION CONTROL PRE-ADJUST REQUIREMENT CONTENT INPUT CONDITION OUTPUT
ADJUSTMENT PROCEDURE
1) BY SELECTING THE V18, BOX BLK TEXT WILL BE APPEARED. 2) ADJUST THE V18 BUS DATA TO HAVE A BALANCE POSITION TO
SPEC OF A=B.
CLOSED CAPTION SET UP
V18 STEP RANGE 0~255
I
2
C CONTROL
OPTION SET UP, BUS SET UP US 4 CH LION HEAD AC 120V CONFIRMATION ON CRT DISPLAY.
[CHECKING SPEC] LEFT AND RIGHT SYMMETRICAL
A
B
TEXT BOX BLK
