• When connecting the TV to a DVD player via the Component-in terminals, the video and audio from the
DVD player cannot be output through the Audio/Video out terminals on the TV.
• Please refer to the operation manual of your DVD player for more information.
• Be sure to fully insert the plugs of the connecting cables into the terminals on the TV set and video
equipment. Failure to do so may result in noise.
• Before connecting the cables, turn off the power of the TV set and video equipment.
• Always remove the cables from the terminals by the plugs and not the cables themselves.

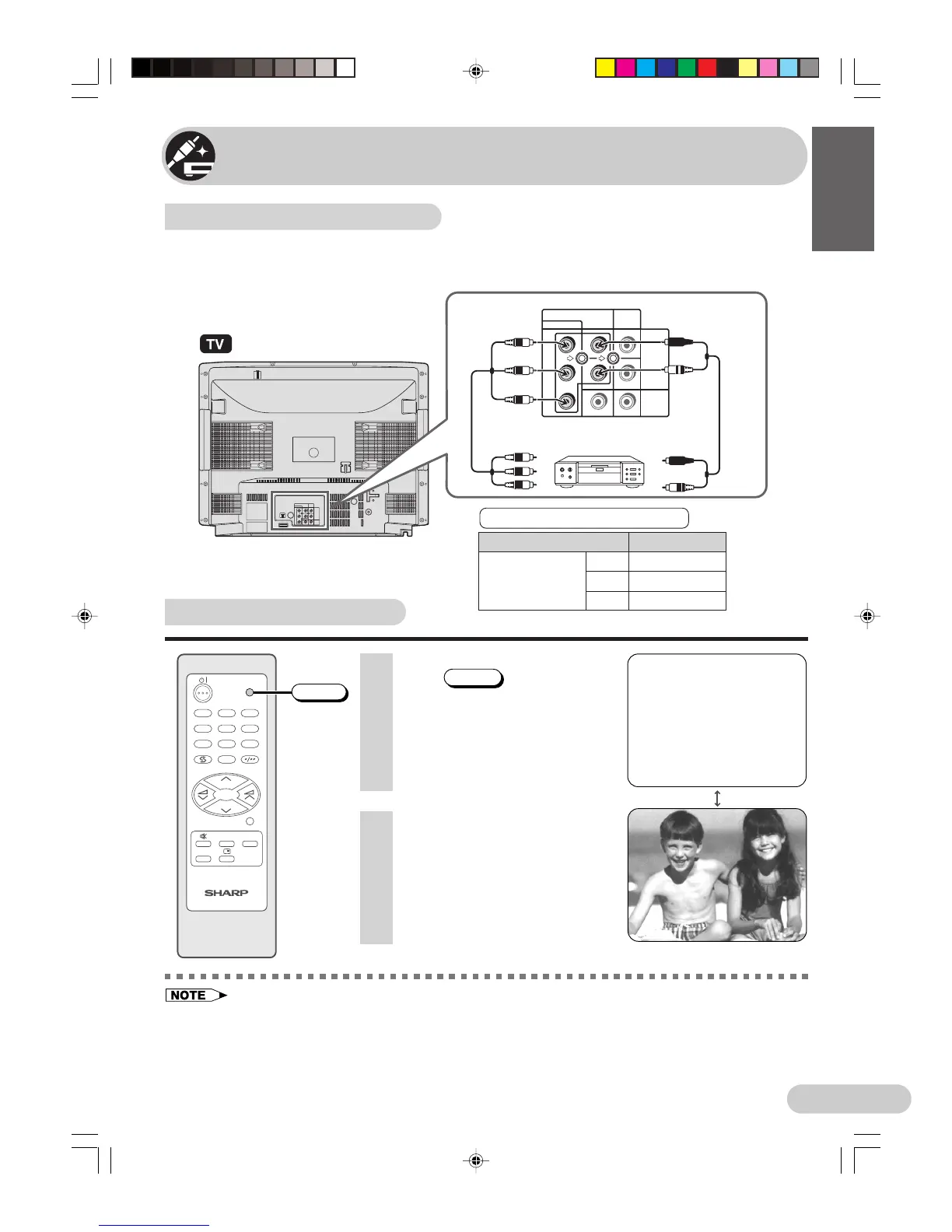

Connections
Connecting to a DVD player
The DVD input terminals (COMPONENT-IN) on the rear of the TV can be used to input
high-quality images from a DVD player.
Watching DVD Playback
1 Press
TV/VIDEO
to select
“COMPONENT”, DVD input
screen.
COMPONENT
Connecting the video terminals
DVD input terminals DVD player
Y Y or Y/Y
P
B(CB)PB(CB) or B-Y/Pb
P
R(CR)PR(CR) or R-Y/Pr
COMPONENT-IN
VIDEO
2 Turn on the DVD player and begin
playback.
TV/VIDEO
TV
0
1
4
7
2
5
8
3
6
9
CH
CH
SURROUND
LANGUAGE
NORMAL
MENU
TV/VIDEO
COMPONENT
R
ı
AUDIO
ı
L
VIDEO
AV-1 IN OUT
(MONO)
Y
P
B
(C
B )
P R
(C
R )
COMPONENT
R
ı
AUDIO
ı
L
VIDEO
AV-1 I N OUT
(MONO)
Y
P
B
(C
B )
P
R
(C
R )
To colour-difference
(component video)
out terminals
To audio out
(L/R) terminals
DVD player
Green : To Y
Blue : To P
B (C B )
Red : To P
R (C R )
Red : To AUDIO IN (R)
White : To AUDIO IN (L)
DVD input terminals
