Sharp 21V1-L Service Manual

21V1-L
5 – 15
ADJ US TME NT
ITE M
ADJ US TME NT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INP UT
CONDITION
OUTPUT
ADJ US TMENT
PROCEDURE
I2C CONTROL
OP TION S ET UP , BUS S ET UP , VCO ADJ, RF-AGC
US 10 CH HALF COLOR BAR PATTERN
220 V
B-AMP TR BAS E (JA410 OR TP853)
CONFIRRM WITH OS CILLOS COP E

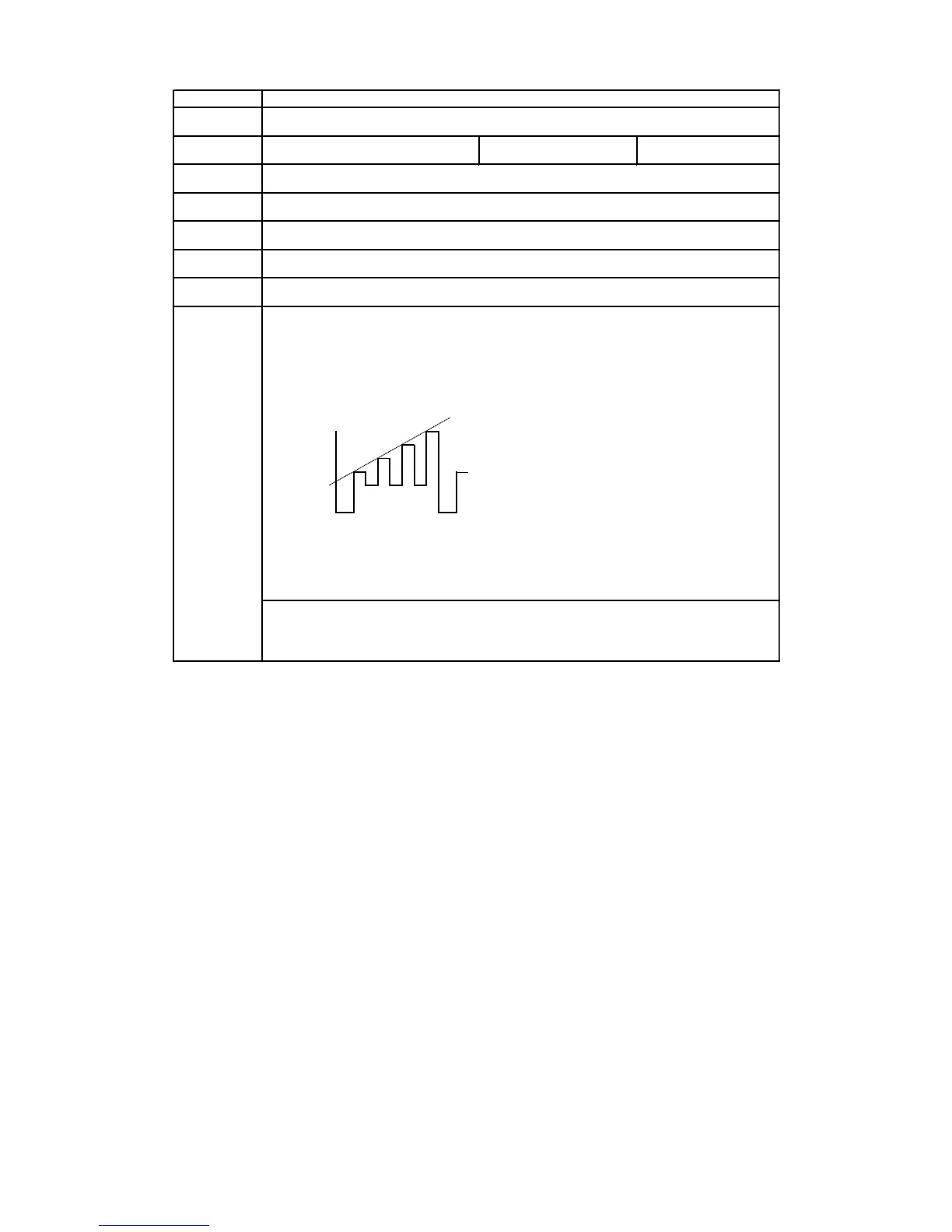

1)GET IN Y-MUTE FUNCTION BY R/C .
2)ADJUST THE
V02
BUS DATA TO GET A WAVEFORM AS BELOW.
[CONFIRMATION ]
MODEL NAME
SUB-TINT
V02
STEP RANGE
0-127
21V1-L
B-AMP BASE (TP 853)MUST BE IN
STEPPING LEVEL
