Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
28
25R-M100
SUPPLIED ACCESSORIES
MISCELLANEOUS PARTS
å
ACC701
QACCD3096CESA X AC Cord AK
or
QACCD3064CESA
or
QACCD3090CESA
SP1 VSP0080PBL4YS X Speaker, 32 ohm AH
QCNW-0133MEZZ X Connecting Cord AE
QCNW-0135MEZZ X Connecting Cord AF
QCNW-0166MEZZ X Connecting Cord AE
QCNW-0167MEZZ J Connecting Cord AE
PWB-H: DUNTK9310WEW6
FRONT A/V UNIT
MISCELLANEOUS PARTS
J1001 QJAKE0053GEZZ J Jack, Video-In AD
J1003 QJAKE0055GEZZ J Jack, Audio-In AD
P1001 QPLGN0541CEZZ J Plug, 5-pin(HA) AB
RRMCG1324CESA J Infrared R/C Unit AT
TGAN-0001GJZZ X Guarantee Card AB
TiNS-7286GJZZ X Operation Manual AH
PACKING PARTS
(NOT REPLACEMENT ITEM)
1 CCABA0116WEH2 X Front Cabinet Ass'y BB
1-1
Not Available
– Front Cabinet —
1-2 GCOVA0108GJKA X R/C Cover AG
1-3 HBDGB0103GJSB X "SHARP" Badge AE
1-4 JBTN-0107GJKA X Button, Power, Vol-up/down AH
1-5 JBTN-0108GJKA X Button, CH-up/down AH
2 GCABB0108GJKA X Rear Cabinet AZ
SPAKC0147GJZZ – Packing Case —
SPAKP0108GJZZ – Wrapping Paper —
SPAKX0120GJZZ – Buffer Material —
SSAKA0101GJZZ – Polyethylene Bag —
CABINET PARTS

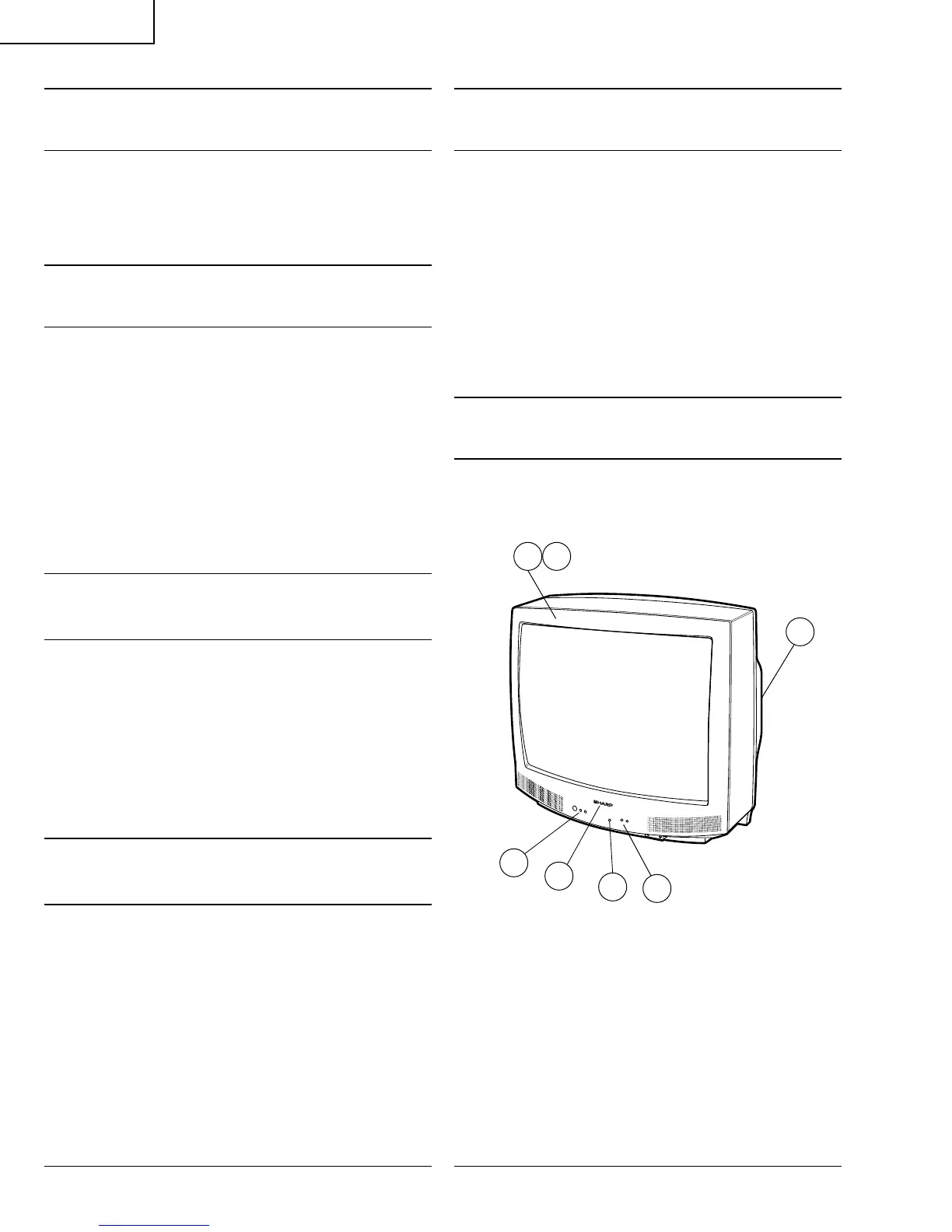

CABINET PARTS LOCATION
1
2
1-1
1-4
1-3
1-2
1-5
To Next Page
