Sharp 27C240 Service Manual

Ref. No. Part No. « Description Code
R869 VRD-RA2BE121JY X 120 1/8W Carbon AA
R871 VRD-RA2BE471JY X 470 1/8W Carbon AA
R872 VRD-RA2BE221JY X 220 1/8W Carbon AA
U
R873 VRS-VV3LB123J X 12k 3W M-Ox. AB
R874 VRD-RM2HD222JY X 2.2k 1/2W Carbon AA
R881 VRD-RA2BE102JY X 1k 1/8W Carbon AA
R882 VRD-RA2BE331JY X 330 1/8W Carbon AA
R883 VRD-RA2BE561JY X 560 1/8W Carbon AA
R884 VRD-RA2BE152JY X 1.5k 1/8W Carbon AA
R895 VRD-RA2BE470JY X 47 1/8W Carbon AA
P851 QPLGN0541CEZZ X Plug, 5-pin(GBN) AB
P852 QPLGN0441CEZZ X Plug, 4Pin( RAV) AB
SC851 QSOCV0937CEZZ X CRT Socket AC
ACC701 QACCDA015WJPZ X AC Cord AE
LHLDK0014PEZZ X AC Cord holder AB
LHLDW1003PEZZ X Purse lock (0.5cm diam) AA
LHLDW1007MEKZ X Wire tie (36.4 cm) AB
LHLDW1009PEZZ X Purse lock (0.115 CM DIAM) AB
LHLDW1033PEZZ X Wire tie (10.4 CM) AA
LHLDW1060CEZZ X Purse lock (0.83 CM DIAM) AB
LHLDZ1037MEZZ X Insulator ring holder AB
LX-TZ0104GJFD X Screw (CRT) AB
LX-WZ0112GJFD X TV washer (m8 x 16 x 1.2) AB
PSPAH0110GJ00 X Himeron (550X7) AB
PSPAN0103GJZZ X Spacer for cabinet AB
QCNW-0134MEZZ X WIRE SPEAKER AB
QCNW-0166MEZZ X WIRE (GBN) AB
QCNW-0167MEZZ X WIRE (YBN) AB
TCAUH3045GJZZ X caution card AB
TLABN0101GJZZ X Remark label(chassis ID) AB
VSP9050PB40YA X speaker AE
VSP9050PB40YA X speaker AE
XTASD30P12000 X Screw(BTN) AA
XTASD40P20000 X Screw (Cab) AA
PWB-A: DUNTKC290WEA4
MAIN UNIT
RESISTORS
[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]
Ref. No. Part No. « Description Code
TINS-B161WJZZ X operation manual AD
RRMCG1324CESC X Infrared R-C Unit AH
TGAN-A216WJN1 X warranty card AB
SPAKCB232WJZZ X Packing Case AS
SPAKP0109GJZZ X Wrapping Paper AE
SPAKX0134GJZZ X Buffer Material AL
SSAKA0101GJZZ X Polyethylene Bag AB
SUPPLIED ACCESSORIES
PACKING PARTS
(NOT REPLACEMENT ITEM)
27C240

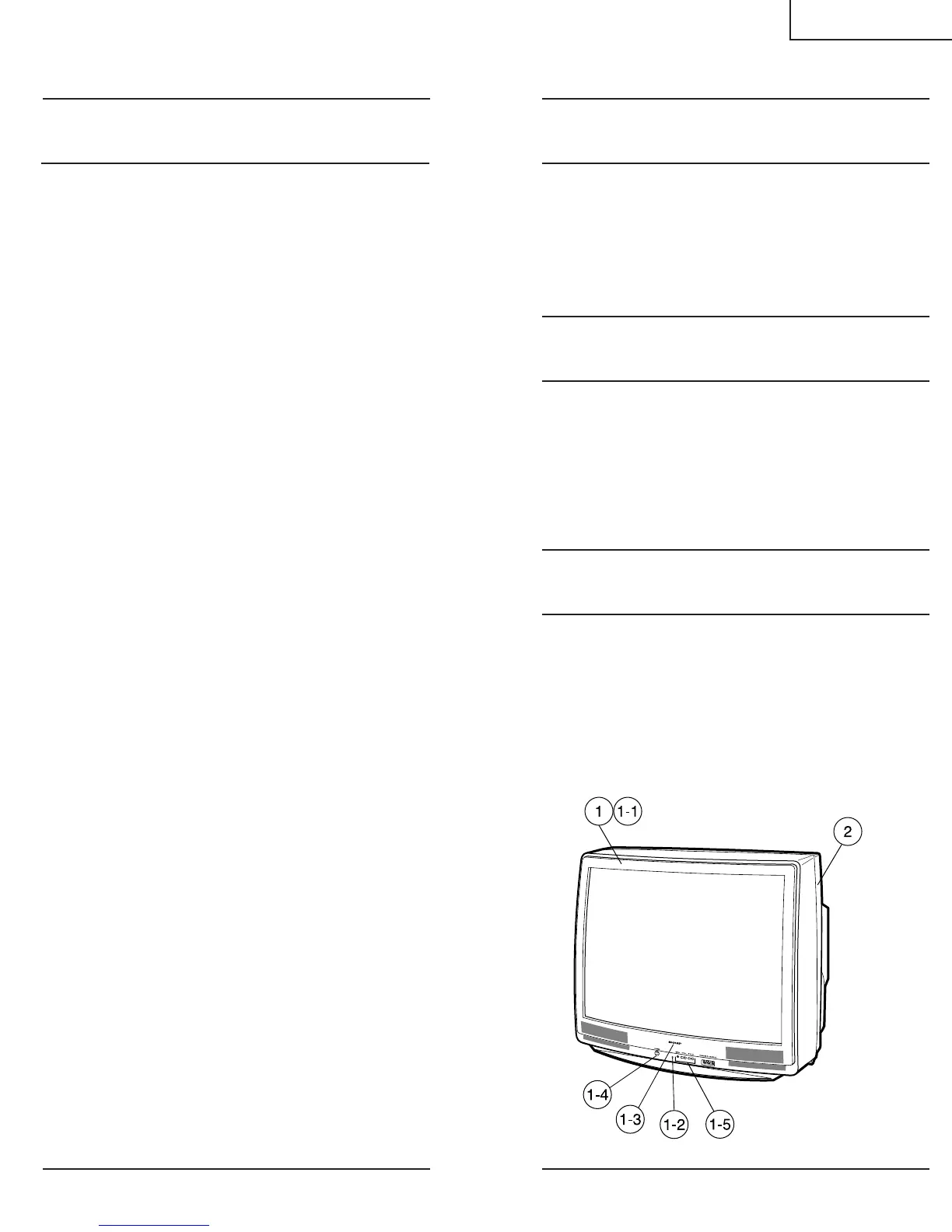

1 CCABA0177WEH8 X Front Cabinet Ass’y BC
1-1 Not Available — Front Cabinet —
1-2 GCOVA0121GJSA X RC/LED Cover AC
1-3 HBDGB1009MESB X BADGE (SHARP PLASTIC) AC
1-4 JBTN-0138GJKC X Power button AE
1-5 JBTN-0139GJSC X Button, CH-Up/Down, AF
VOL-Up/Down, Menu
2 GCABB0153GJKA X REAR CABINET AY
