Sharp 32C241 - PWB-B: CRT Unit Layout; PWB-D: 2 Line Y;C Unit Layouts

Sharp 32C241
34 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
654321
A
B
C
D
E
F
G
H
24
32C240
32C241

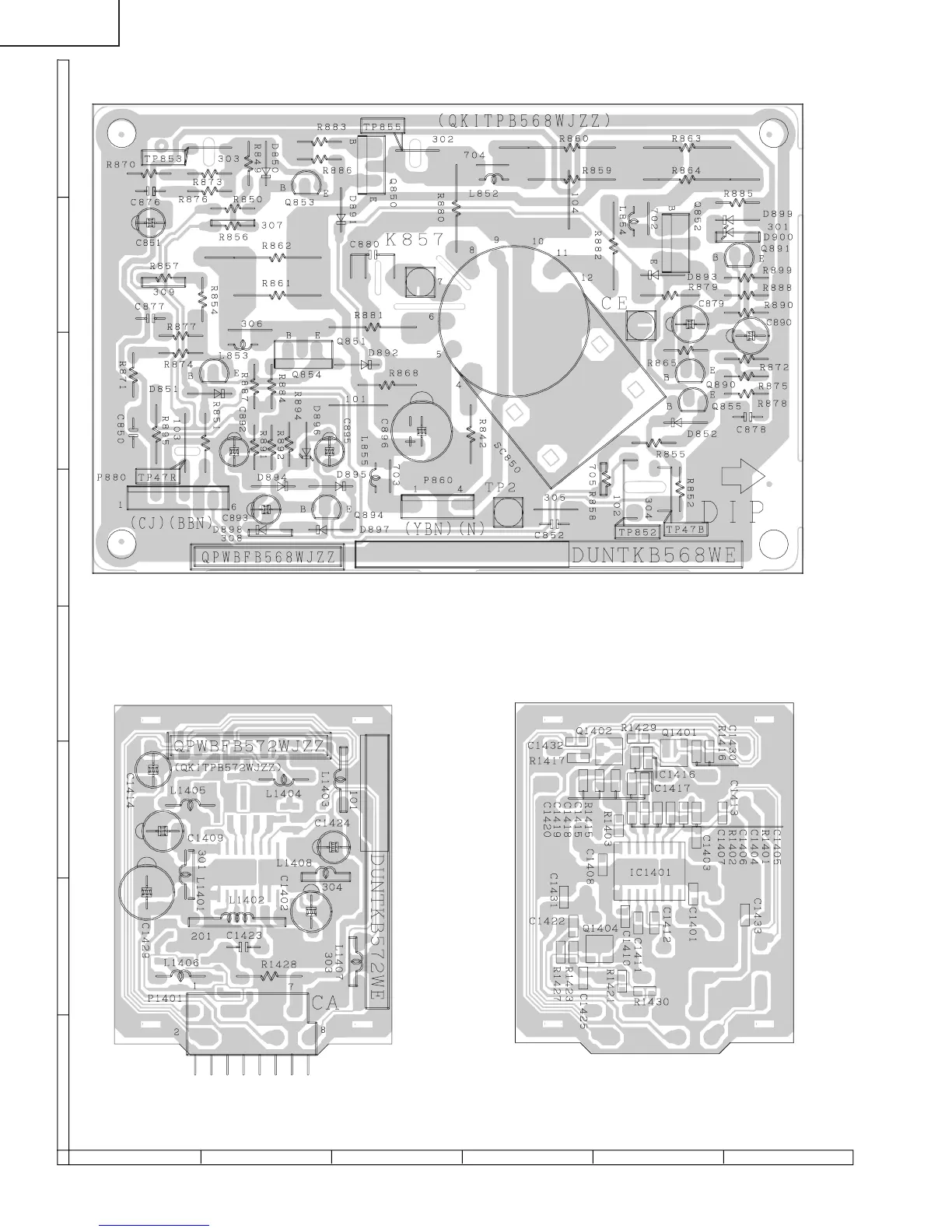

PWB-B: CRT Unit (Wiring Side)
PWB-D: 2 LINE Y/C Unit (Chip Parts Side)
PWB-D: 2 LINE Y/C Unit (Wiring Side)
