Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
32
32C240
32C241
1A
2A
1-1
1-2A
1-5A
1-4A
1-3
32C241
1B
2B
1-1
1-2B 1-5B
1-3
1-4B
32C240
CABINET PARTS
1A CCABAA594WEH0 X Front Cabinet Ass'y
(32C241)
1B CCABAA587WEH0 X Front Cabinet Ass'y
(32C240)
1-1
Not Available
– Front Cabinet —
1-2A GCOVA0117GJKA X RC/LED Cover(32C241)
1-2B GCOVA0119GJKA X RC/LED Cover(32C240) AB
1-3 HBDGB1009MESB X SHARP Badge AC
1-4A JBTN-0132GJKB X Power Button(32C241)
1-4B JBTN-0119GJKC X Power Button(32C240)
1-5A JBTN-0133GJKB X Control Button(32C241)
1-5B JBTN-0120GJKC X Control Button(32C240)
2A GCABBA391WJKA X Rear Cabinet(32C241)
2B GCABBA387WJKA X Rear Cabinet(32C240)
MISCELLANEOUS PARTS
SP1 VSP1206PB69WA X Speaker(L) AG
SP2 VSP1206PB69WA X Speaker(R) AG
QCNW-0136GJZZ X Connecting Cord AC
QCNW-0237MEZZ X Connecting Cord AH
QCNW-B126WJZZ X Connecting Cord AC
QCNW-B238WJZZ X Connecting Cord AB
SUPPLIED ACCESSORIES
RRMCG1324CESC X Infrared R-C Unit AH
TGAN-A216WJN1 X Guarantee Card AB
TiNS-B091WJZZ X Operation Manual(32C240)
TiNS-B162WJZZ X Operation Manual(32C241)
PACKING PARTS
(NOT REPLACEMENT ITEM)
SPAKCB278WJZZ – Packing Case(32C240) —
SPAKCB233WJZZ – Packing Case(32C241) —
SPAKP0110GJZZ – Wrapping Paper —
SPAKX0128GJZZ – Packing Add.(32C240) —
SPAKX0126GJZZ – Packing Add.(32C241) —
SSAKA0101GJZZ – Polyethylene Bag —

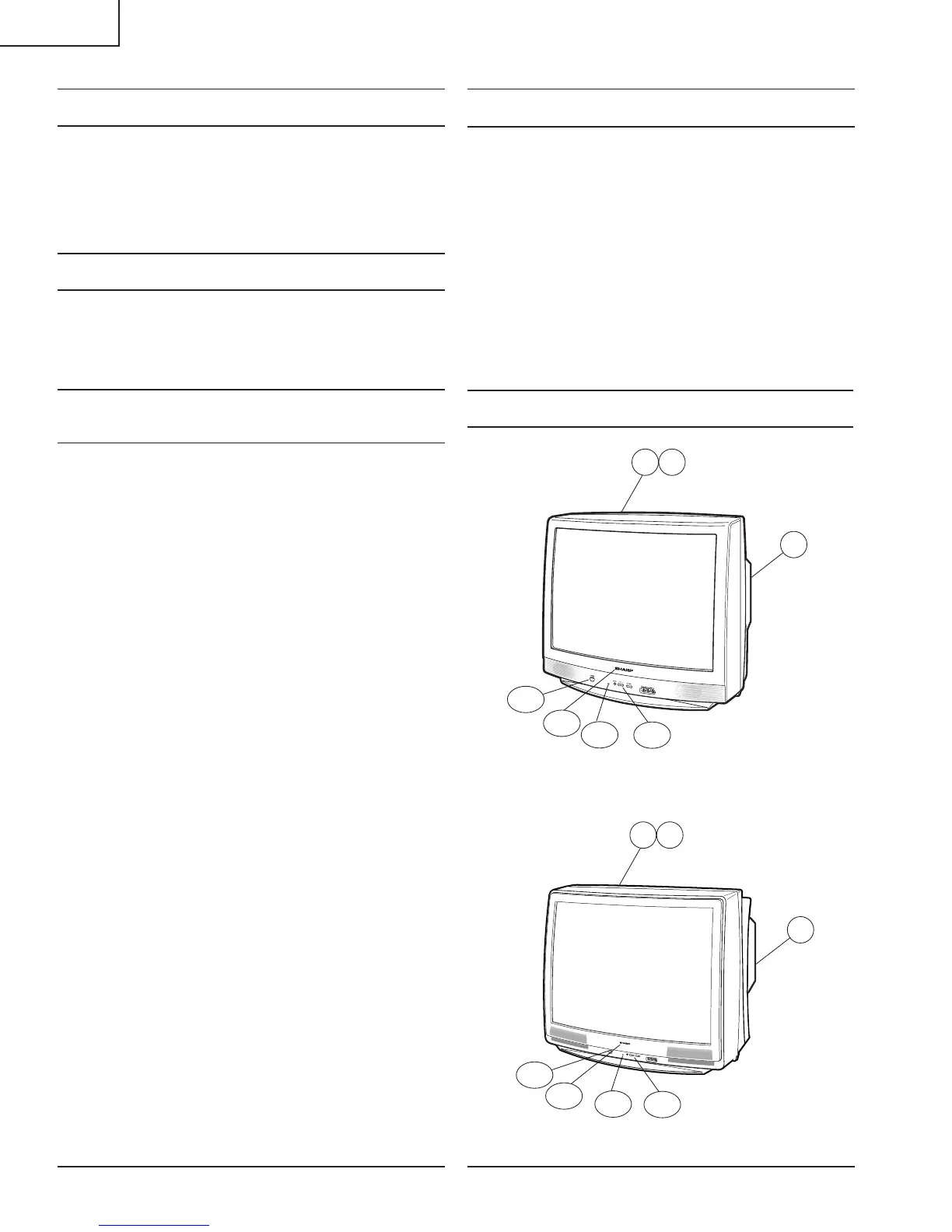

CABINET PARTS LOCATION
