Sharp AE-A079E - Outdoor Unit Disassembly

AY/AE-A079E
AY/AE-A099E
28
FOR OUTDOOR UNIT MODEL AE-A079E AND AE-A099E
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
1 Remove the three (3) screws holding the right side
plate and take it out.
2 Remove the three (3) screws holding the left side
plate and take it out.
3 Remove the another screws holding the cabinet and
take it out..
NOTE: Number as shown in following
figure is the moval order.

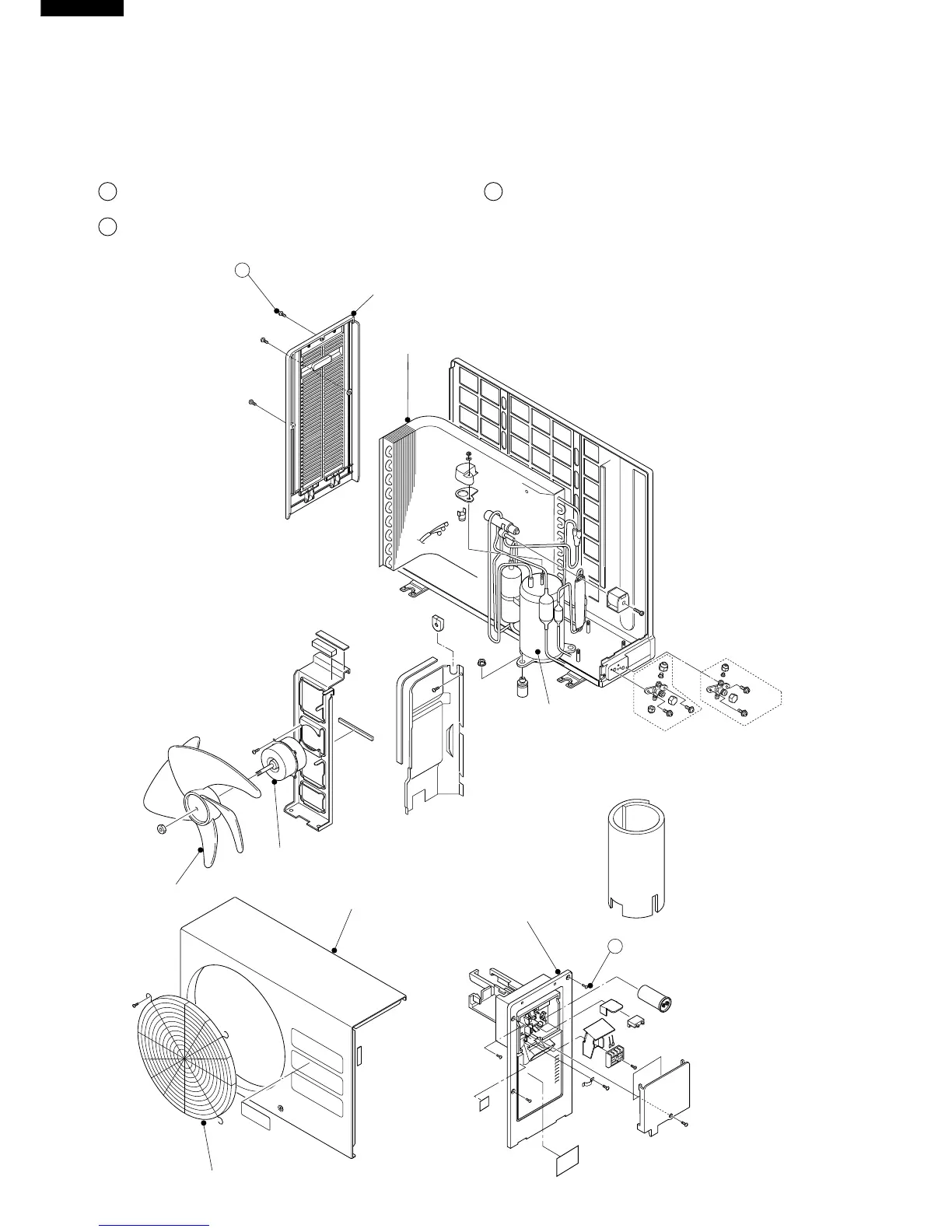

Fig. D-1
Left side plate
Condenser
Right side plate
Cabinet
Fan motor
Propeller fan
Compressor
Fan guard
2
1
