AH/AU-X108E
AY/AE-X108E
AH/AU-X138E
AY/AE-X138E
44

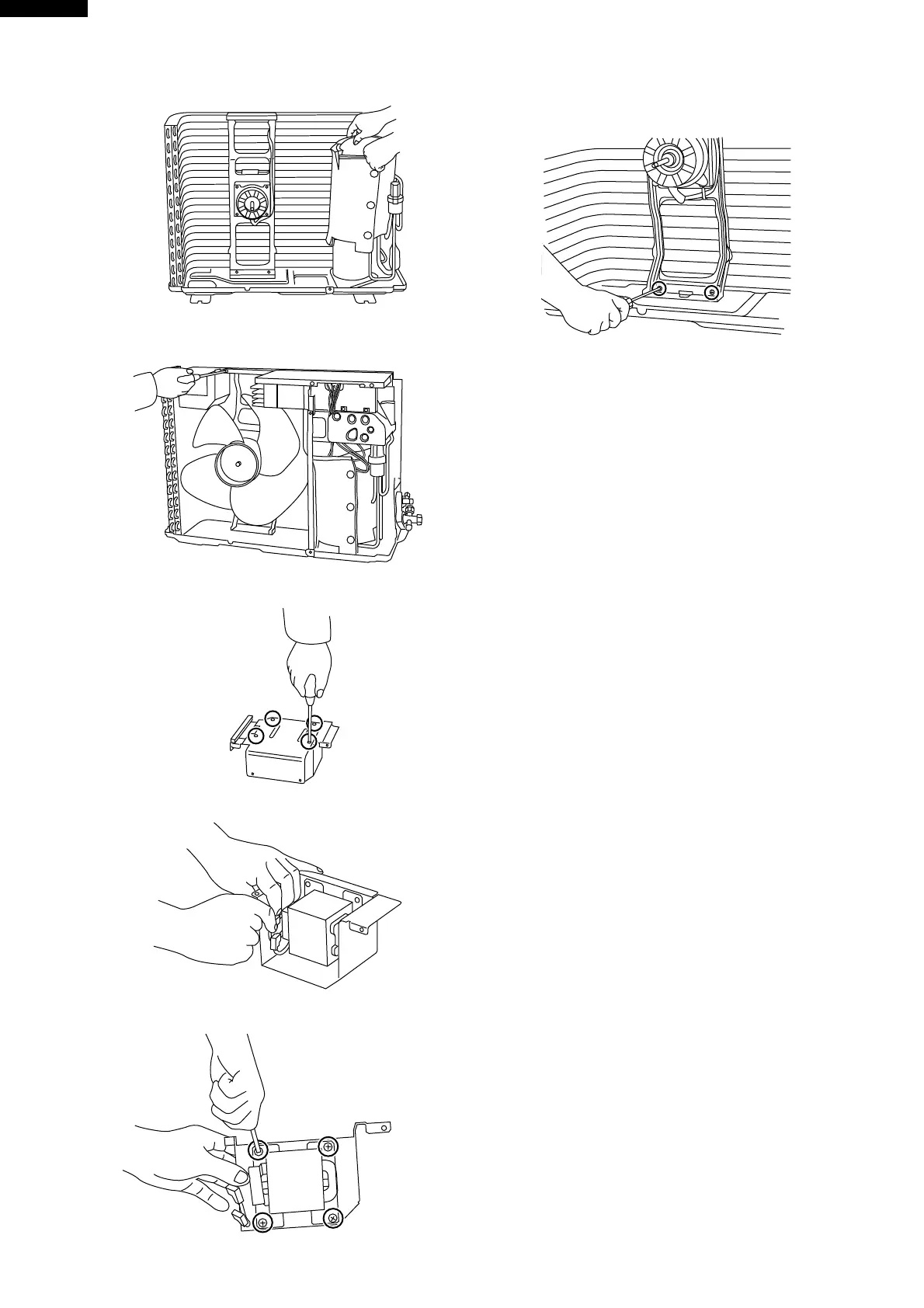

21. Take the compressor cover out.
[Reactor box] AU-X138E AND AE-X138E ONLY
22. Remove one screw which is fixing the reactor box.
23. Remove four screws which are fixing the reactor box
cover. And take it out.
24. Disconnect two terminals and one earth wires.
25. Remove four screws which are fixing the reactor.
[Fan motor angle]
26. Remove two screws which are fixing the fan motor
angle. And take it out.
