AE-X15PU
2 – 5

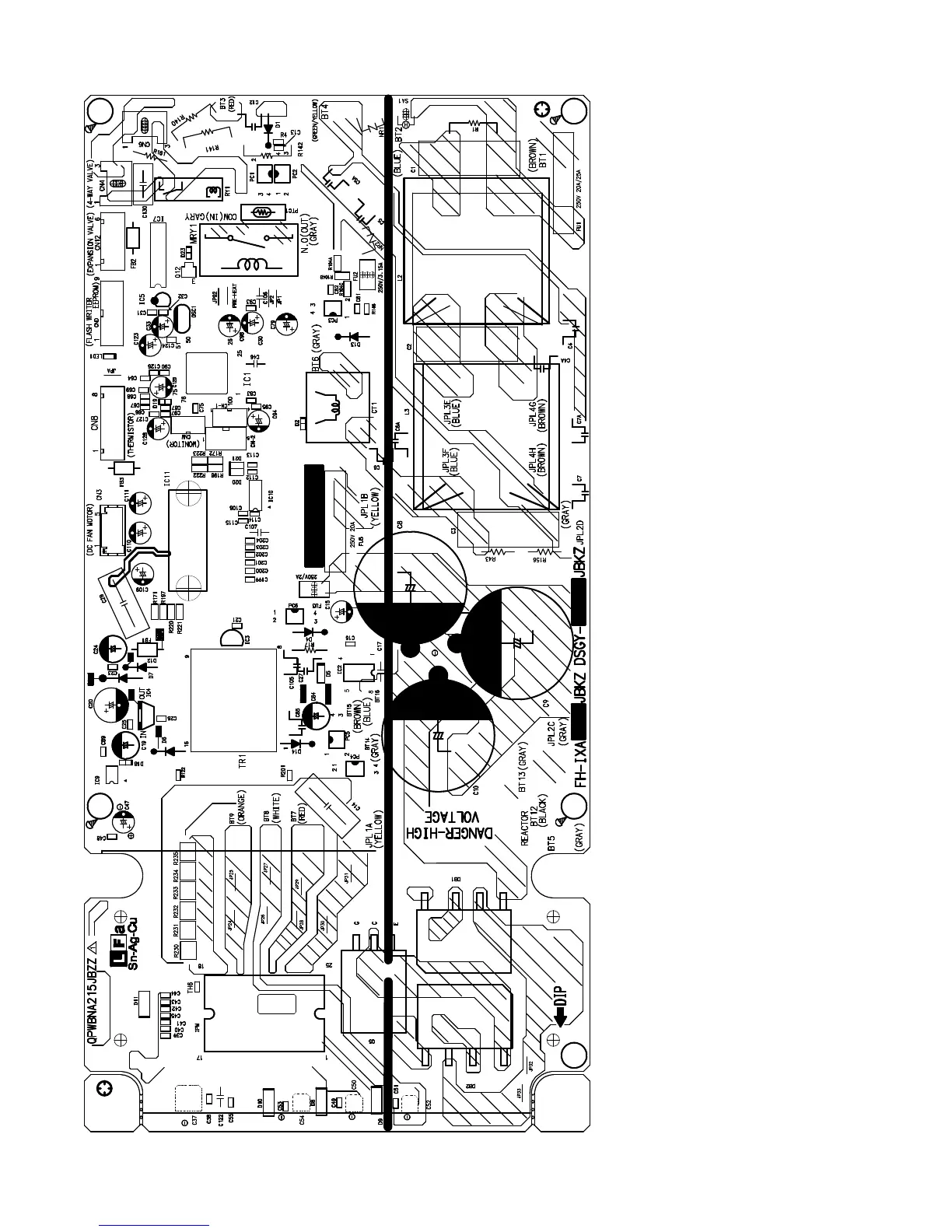

2. Printed wiring board: AE-X15PU
This PCB is common for AE-X15PU/X18PU/X24PU, but for AE-X24PU,
there will be a sub-board. Will be released after approval.
