C
Replace the 2 ground screws removed
earlier, one on each side of the case.
IMPORTANT: The ground screws must
be reinstalled to ensure a proper ground.
Attach the front grille to the case by
inserting the tabs on the grille into the
slots on the front top of the case. Push
the grille in.
Secure the front grille to the case by
replacing the 2 screws removed earlier.
Press on the top of the grille to help with
side screw installation.
Connect power.
B
D
î
E

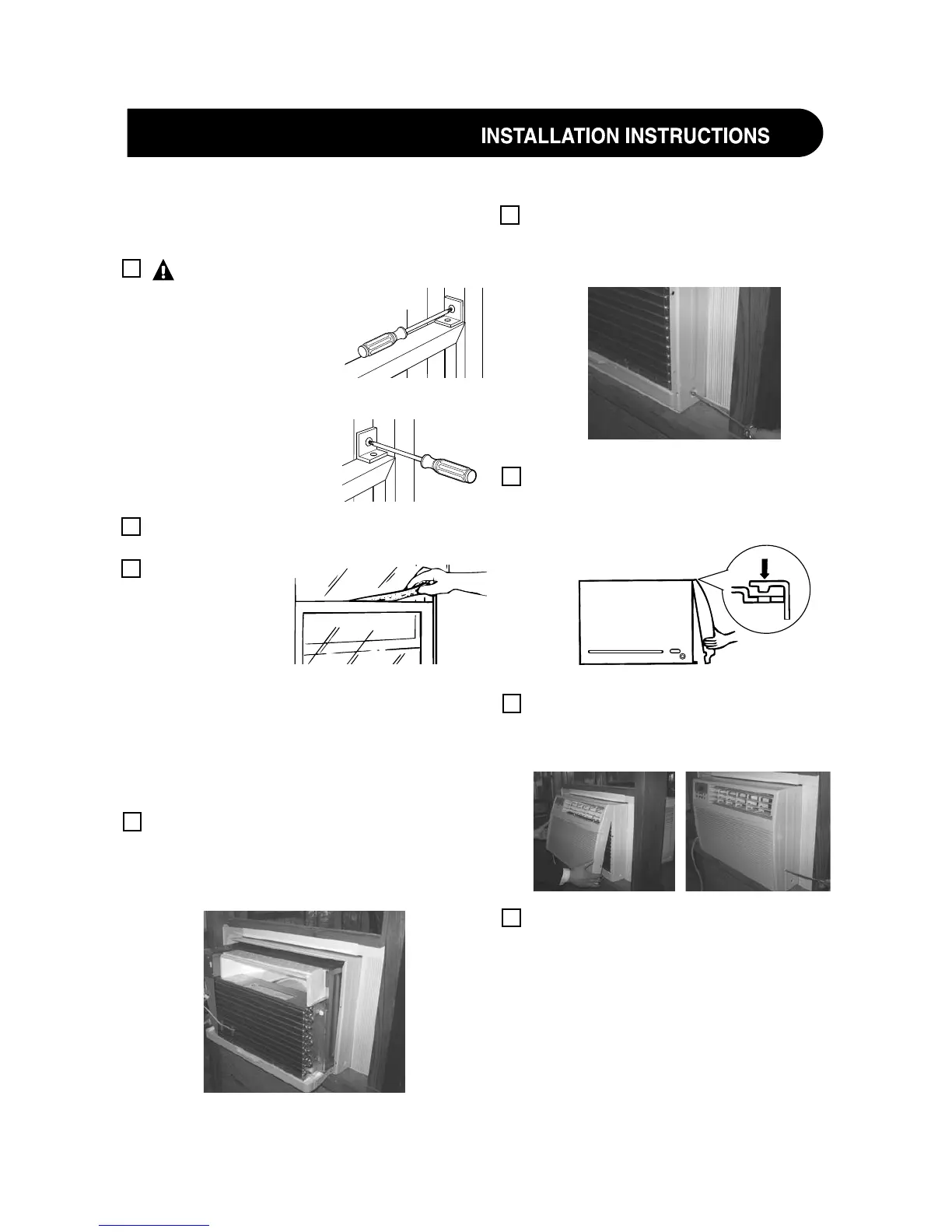

INSTALL THE AIR CONDITIONER
IN THE CASE
Slide the air conditioner into the case by
the base pan. Do not push on the controls,
styrofoam air discharge housing or the
finned coils. Make sure the air conditioner
is firmly seated.
A
SECURE THE CASE IN WINDOW AND
INSTALL FOAM TOP WINDOW GASKET
Attach the window
locking brackets (one
on each side) with
Type C screws.
Cut the foam top window gasket to the
window width.
Stuff the foam
between the
glass and the
window to
prevent air and
insects from
getting into the room.
NOTE: If the gasket supplied does not fit
your window, obtain appropriate material
locally to provide a proper installation seal.
A
CAUTION:
To prevent broken glass
or damage to windows,
on vinyl or other
similarly constructed
windows, attach the
support bracket to the
window side jam.
B
C
Vinyl
9
10
