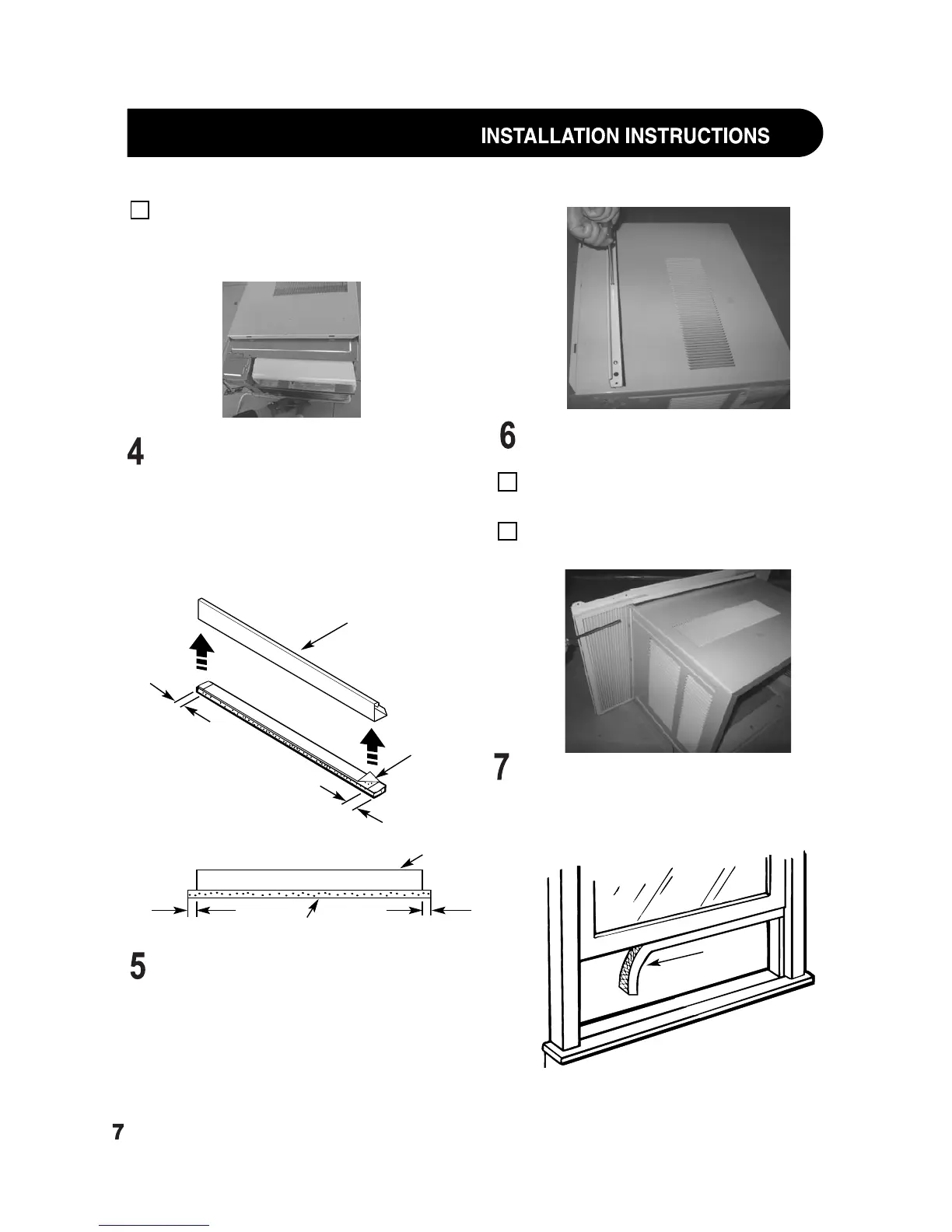

ATTACH THE TOP MOUNTING
RAIL SEAL STRIP
Remove the backing from the top mounting
rail seal strip and attach the seal strip to
the bottom of the top mounting rail, along
the front edge. Allow the seal strip to
overlap 3/8″ on each end.
INSTALL THE TOP MOUNTING
RAIL ONTO THE CASE
Attach the top mounting rail onto the top
of the case with 3 Type B screws.
INSTALL THE
SIDE ACCORDION PANELS
Slide the left and right accordion panels
into the top and bottom mounting rails.
Attach the accordion panels to the case
using 3 Type A screws on each side.
A
B
PREPARE THE WINDOW
• Cut the window sash seal to the window
width and stick the adhesive side to the
bottom of the sash.
Window
sash seal
INSIDE
Top mounting rail
Remove
backing
from seal
strip
3/8″
3/8″
3/8″ overlap 3/8″ overlap
Top mounting rail
Seal strip
FRONT VIEW
Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case. Do not
pull or lift on the styrofoam discharge area.
E
To Next Page
