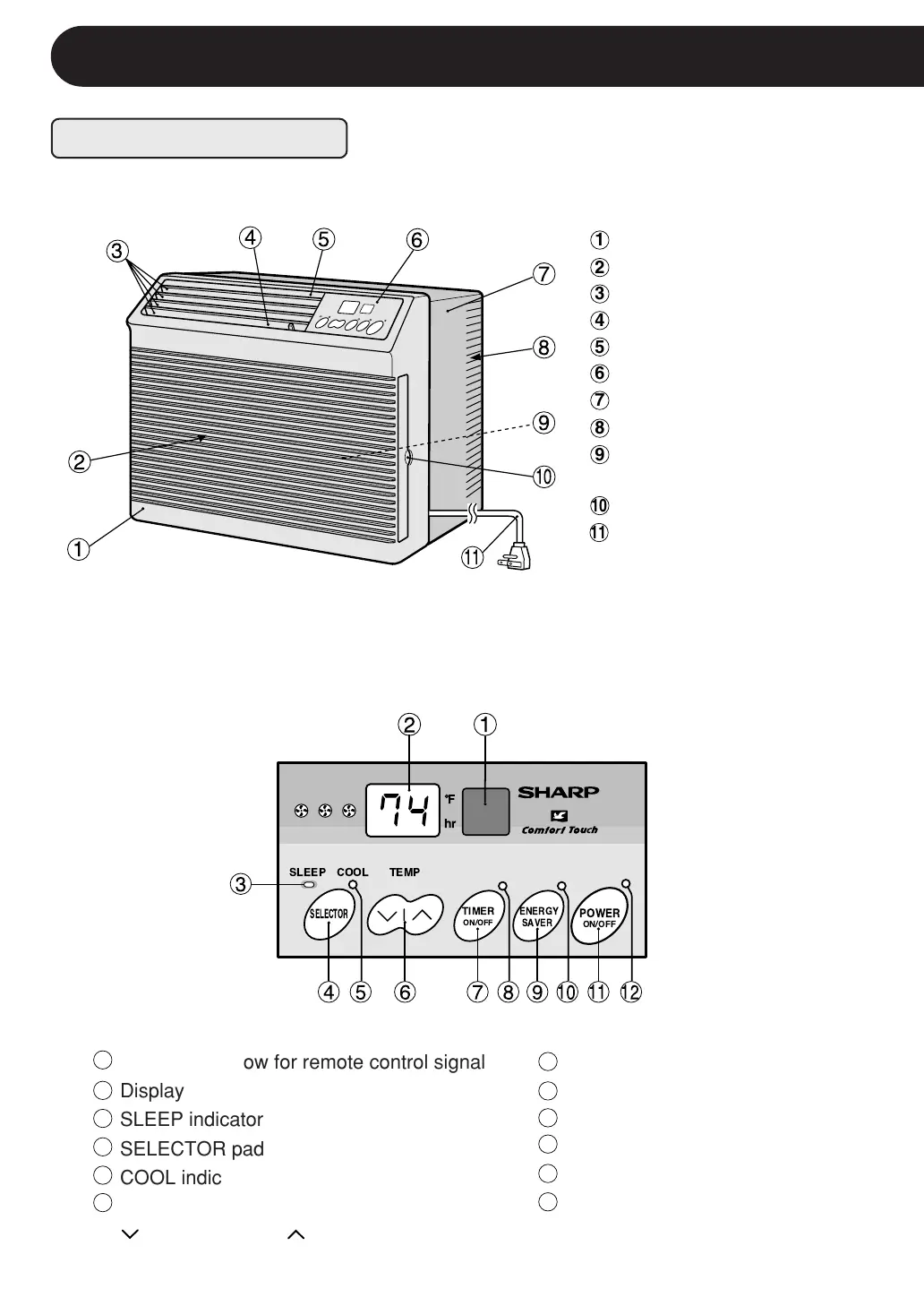

PARTS NAMES
UNIT
CONTROL PANEL
Front Cabinet
Air Inlet (Indoor Side)
Horizontal Louvers
Vertical Louvers
Air Outlet (Indoor Side)
Control Panel
Rear Cabinet
Air Inlet (Outdoor side)
Filter (Pull the filter handle
to the right to remove.)
Filter Handle
Power Cord
HOW TO OPERATE
7
8
9
10
6
5
4
3
2
1
11
1
2
3
4
5
6
7
8
9
10
11
12
hr
F
POWER
ON/OFF
ENERGY TIMER
SAVER
ON/OFF
SELECTOR
TEMPCOOLSLEEP
3
4 5 8 10 12 7 9 11 6
Receiver window for remote control signal
Display
SLEEP indicator
SELECTOR pad
COOL indicator
TEMPERATURE setting pad
----Lower temp. ----Raise temp.
TIMER ON/OFF pad
TIMER indicator
ENERGY SAVER pad
ENERGY SAVER indicator
POWER ON/OFF pad
POWER indicator
1
2
3
4
5
6
7
8
9
10
11
12
