AF-S80CX

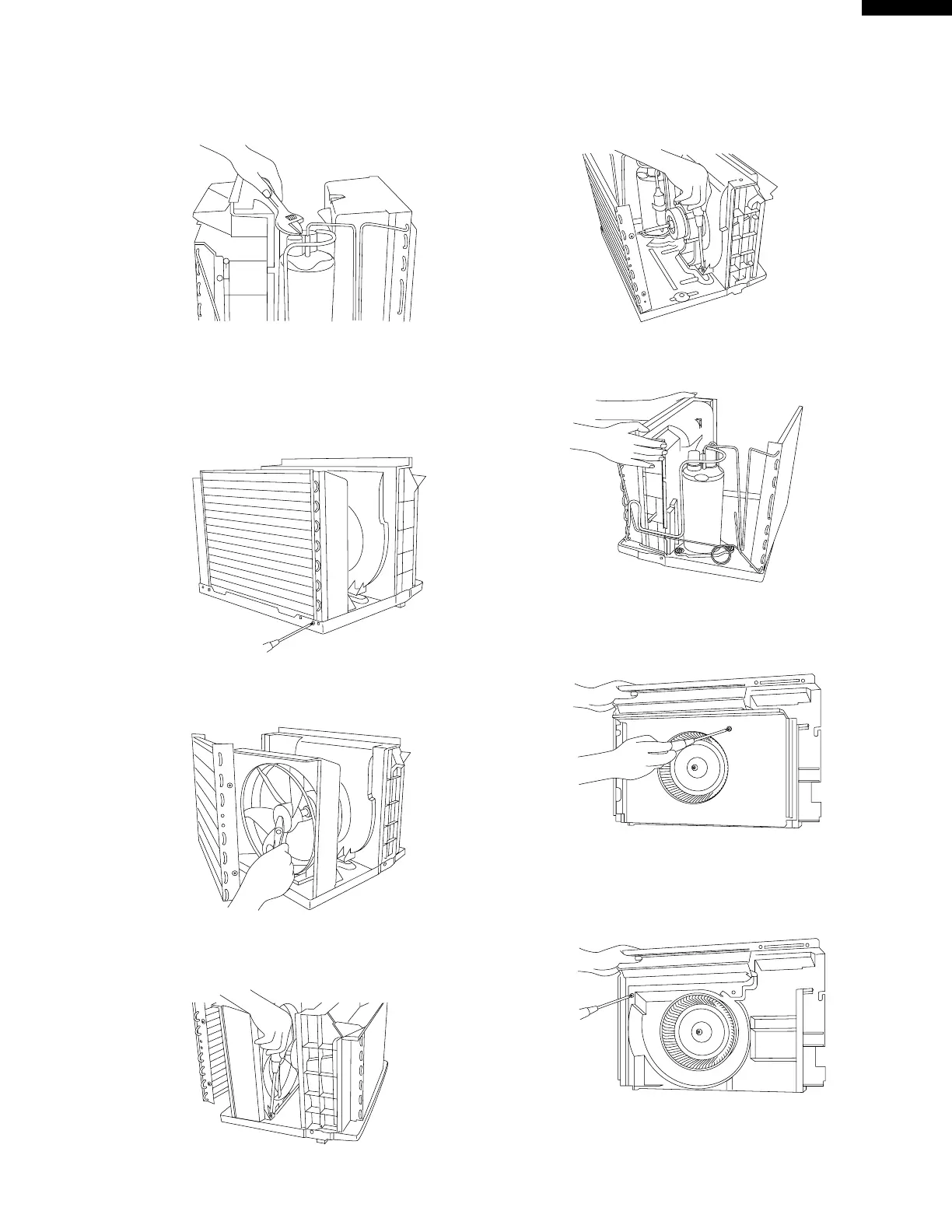

9. Unfasten the one nut at the top of the compressor
holding the terminal cover.
Then remove the wiring connector of the compressor
cord.
13. Unscrew the 7 screws.
4 screws are holding the evaporator on each side.
3 screws are holding the bulkhead to the base pan on
each side and back side.
10. Unscrew the 4 screws holding the condenser.
1 screw is on right side.
1 screw is on left side.
2 screws are on back side.
And remove the condenser from the unit.
14. Lift up and take out the bulkhead.
15. Unscrew the 1 screw holding the orifice.
16. Unscrew the 1 screw holding the top duct ass'y.
11. Unfasten the nut holding the propeller fan by rotating it
counter-clockwise. And remove the propeller fan.
12. Unscrew the 2 screws holding the condenser shround.
And remove the condenser shround.
