18
AF-S80CX

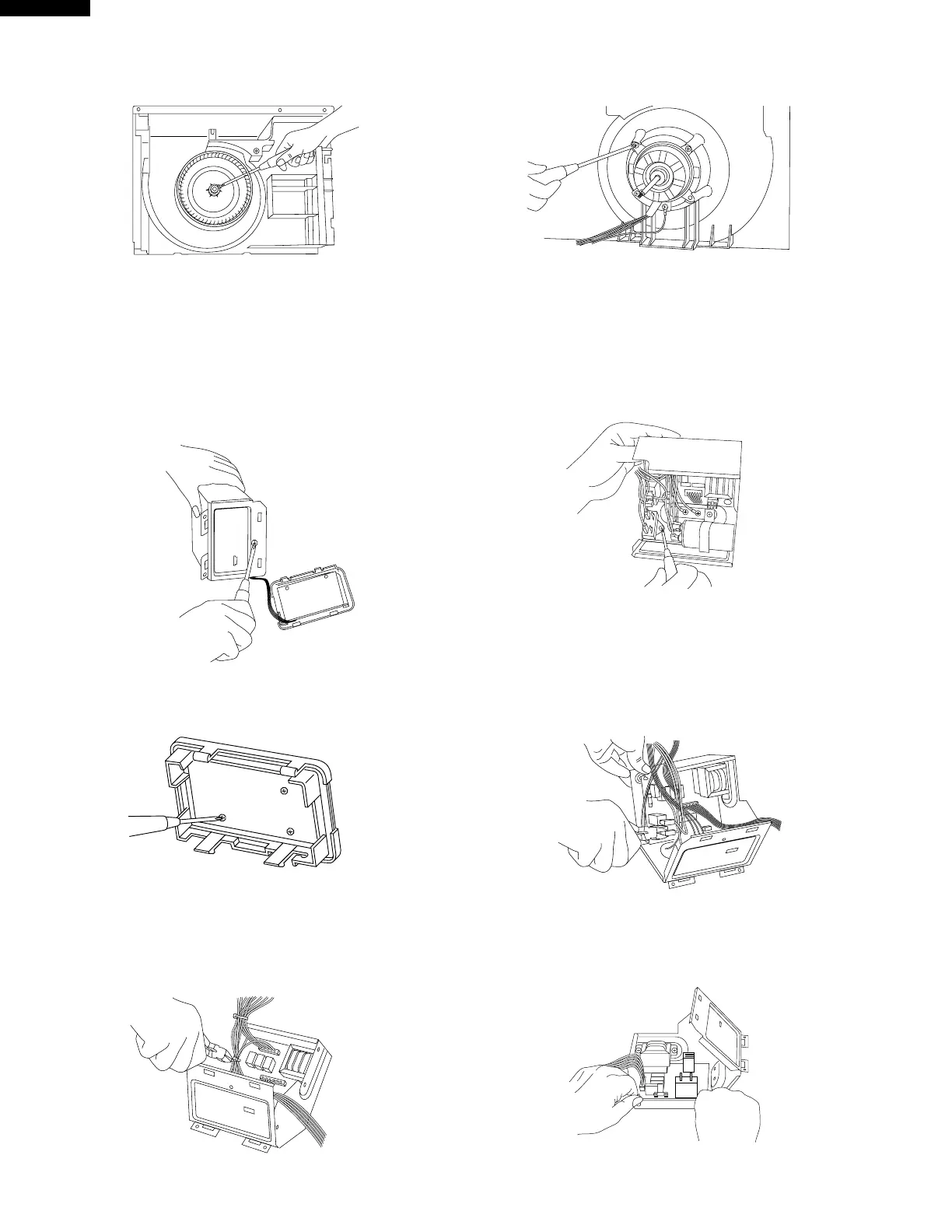

17. Unscrew the 1 screw holding the centrifugal fan. 18. Unscrew the 3 screws holding fan motor.
DISASSEMBLING THE CONTROL BOX
1. Unscrew the 1 screw holding the control box cover.
CAUTION: DISCHARGE THE FAN MOTOR CAPACITOR
AND RUNNING CAPACITOR BEFORE
TOUCHING THOSE CAPACITORS OR OTHER
COMPONENTS OR WIRING.
4. Unscrew the 1 power supply cord grounding screw.
Unscrew the earth screw. Unscrew the 1 screw holding
the capacitor clamp and the fan motor capacitor.
2. Unscrew the 3 screws holding the printed wiring board.
5. Detach each connector by using long-noise pliers.
6. Unscrews the 2 screws holding the transformer and
remove the control board with unhooking the 2 spacers.
3. Cut the wire fixing bands holding the fan motor lead
wires, the compressor cord and the power supply cord.
To Next Page
