19
AF-P80CX

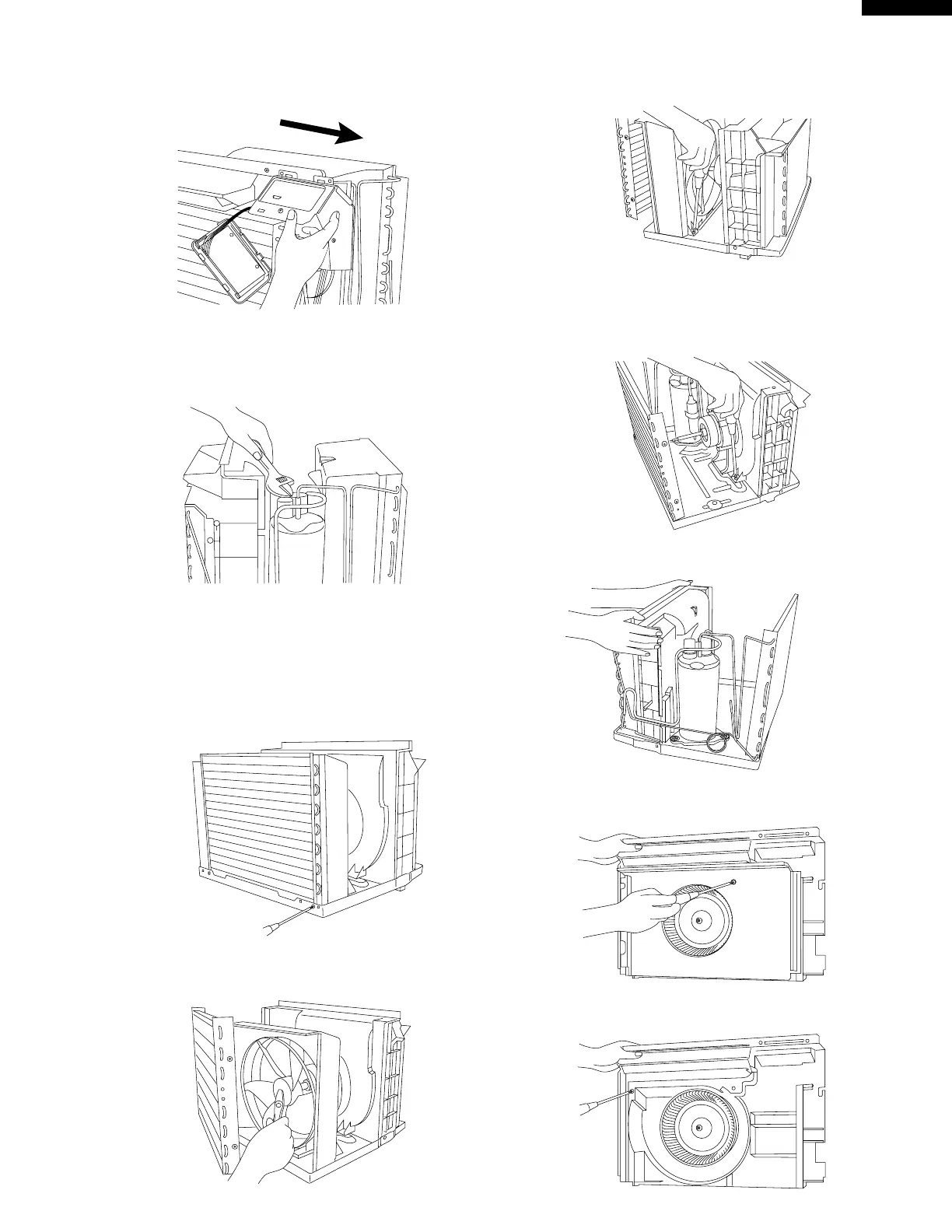

10. Cut the wire fixing band, slide the control box rightward
and remove.
14. Unscrew the 2 screws holding the condenser shround.
And remove the condenser shround.
11. Unfasten the one nut at the top of the compressor
holding the terminal cover.
Then remove the wiring connector of the compressor
cord.
15. Unscrew the 7 screws.
4 screws are holding the evaporator on each side.
3 screws are holding the bulkhead to the base pan on
each side and back side.
12. Unscrew the 4 screws holding the condenser.
1 screw is on right side.
1 screw is on left side.
2 screws are on back side.
And remove the condenser from the unit.
13. Unfasten the nut holding the propeller fan by rotating it
counter-clockwise. And remove the propeller fan.
Slide
16. Lift up and take out the bulkhead.
17. Unscrew the 1 screw holding the orifice.
18. Unscrew the 1 screw holding the top duct ass'y.
To Next Page
