7 8

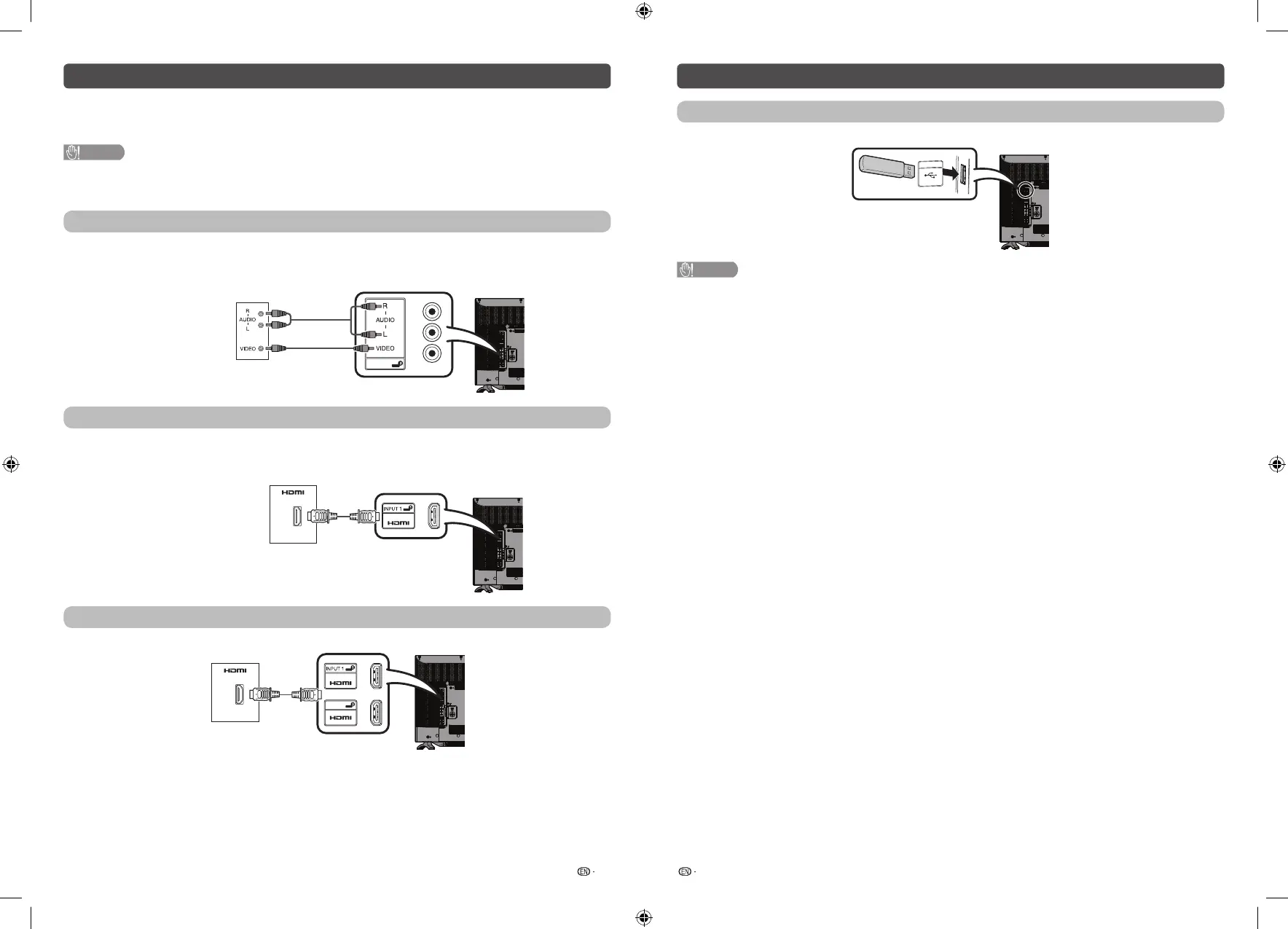

Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD
player, Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from
INPUT on the remote control unit or INPUT on the TV.
CAUTION
• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV STB (Set Top Box), PC or other external equipment.
• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.
Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected
using the INPUT 3 terminal.
When using composite cable (commercially available)
VCR/Game console/
Camcorder
INPUT 3
Connecting a DVD player/Digital TV STB (Set Top Box)
You can use the INPUT 1 (HDMI/ARC)/INPUT 2 (HDMI) terminals when connecting to a DVD player/Digital TV
STB (Set Top Box) and other audiovisual equipment.
When using HDMI-certifi ed cable (commercially available)
ARC
DVD player/Digital TV STB
(Set Top Box)
Connecting a PC
You can use the INPUT 1 (HDMI/ARC)/INPUT 2 (HDMI) terminal when connecting to a PC.
ARC
INPUT 2
PC
Connecting external devices (Continued)
Connecting a USB device
Connect a USB device to the TV.
USB
DC5V 1.5A
CAUTION
• Do not disconnect a USB device from the TV while transferring fi les, when a screen is in “USB” mode.
2T-C32BD1X_H217_EN.indd 42T-C32BD1X_H217_EN.indd 4 1/10/2019 10:19:00 AM1/10/2019 10:19:00 AM
