7 8

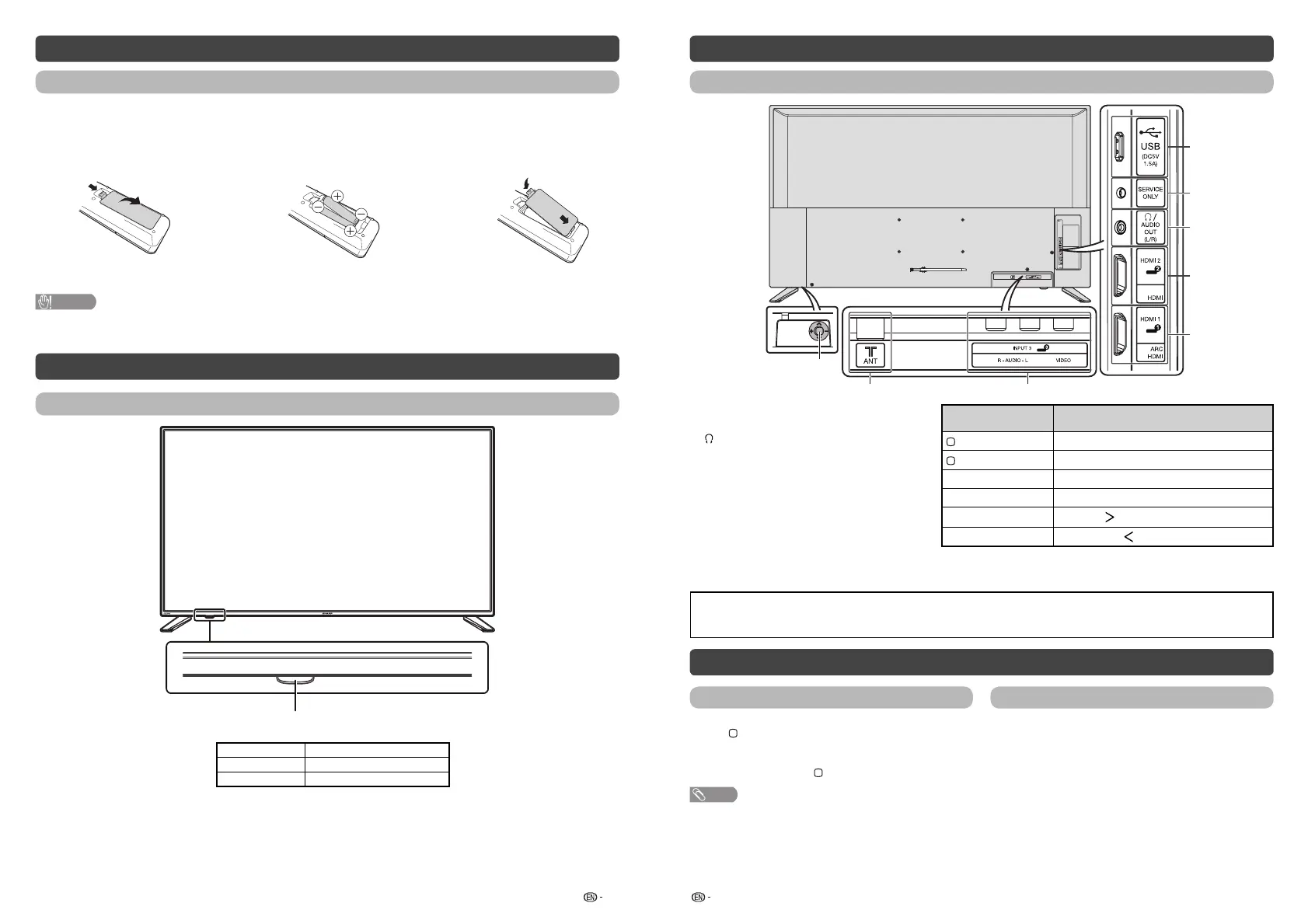

Remote control unit (Continued)
Inserting the batteries
Before using the TV for the fi rst time, insert two “AAA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.
1
Open the battery cover.
2
Insert the two supplied “AAA” size
batteries.
3
Close the battery cover.
• Place batteries with their terminals corresponding to
the (
e
) and (
f
) indications in the battery compartment.
CAUTION
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fi re or the like.
Part names
TV (Front)
POWER indicator
Light off Power off.
Lighted (Red) The TV is in standby mode.
Lighted (Blue) The TV is on.
Remote control sensor / POWER indicator
Part names (Continued)
TV (Rear)
>PS<
PG024WJ
1
2
3
4
5
67
8
1 USB terminal*
2 SERVICE ONLY terminal**
3
/AUDIO OUT (L/R) terminal
4 HDMI 2 (HDMI) terminal
5 HDMI 1 (HDMI/ARC) terminal
6 INPUT 3 terminals
7 Antenna input terminal
8 JOG-KEY
JOG-KEY Functions Description
(Single Press) On/Off (No OSD display)
(Long Press) Sub-menu display on TV screen
r
CH UP /
r
button
s
CH DOWN /
s
button
+
VOL UP /
button
–
VOL DOWN /
button
* USB terminal use for USB media player. (See page 21.)
** Usually do not connect anything to this terminal as it reserved only for service personnel.
• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from
the actual operations.
• Some features differ depending on the selected country.
Turning the TV on/off
Turning on/off the power Standby mode
• To turn on the power
Press (JOG-KEY) on the TV. (After a few seconds, an
image appears with sound.)
• To turn off the power
Switch it off by pressing (JOG-KEY) on the TV.
• To standby mode
If the TV is switched on, you can switch it to standby by
pressing POWER on the remote control.
• Switching on from standby
From standby, press POWER on the remote control.
NOTE
• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.
• Minor power is consumed when the unit is in standby mode.
2T-C45AD1X_H108_EN.indd 42T-C45AD1X_H108_EN.indd 4 6/26/2018 9:55:26 AM6/26/2018 9:55:26 AM
