Sharp AQUOS LC-80LE757U

11

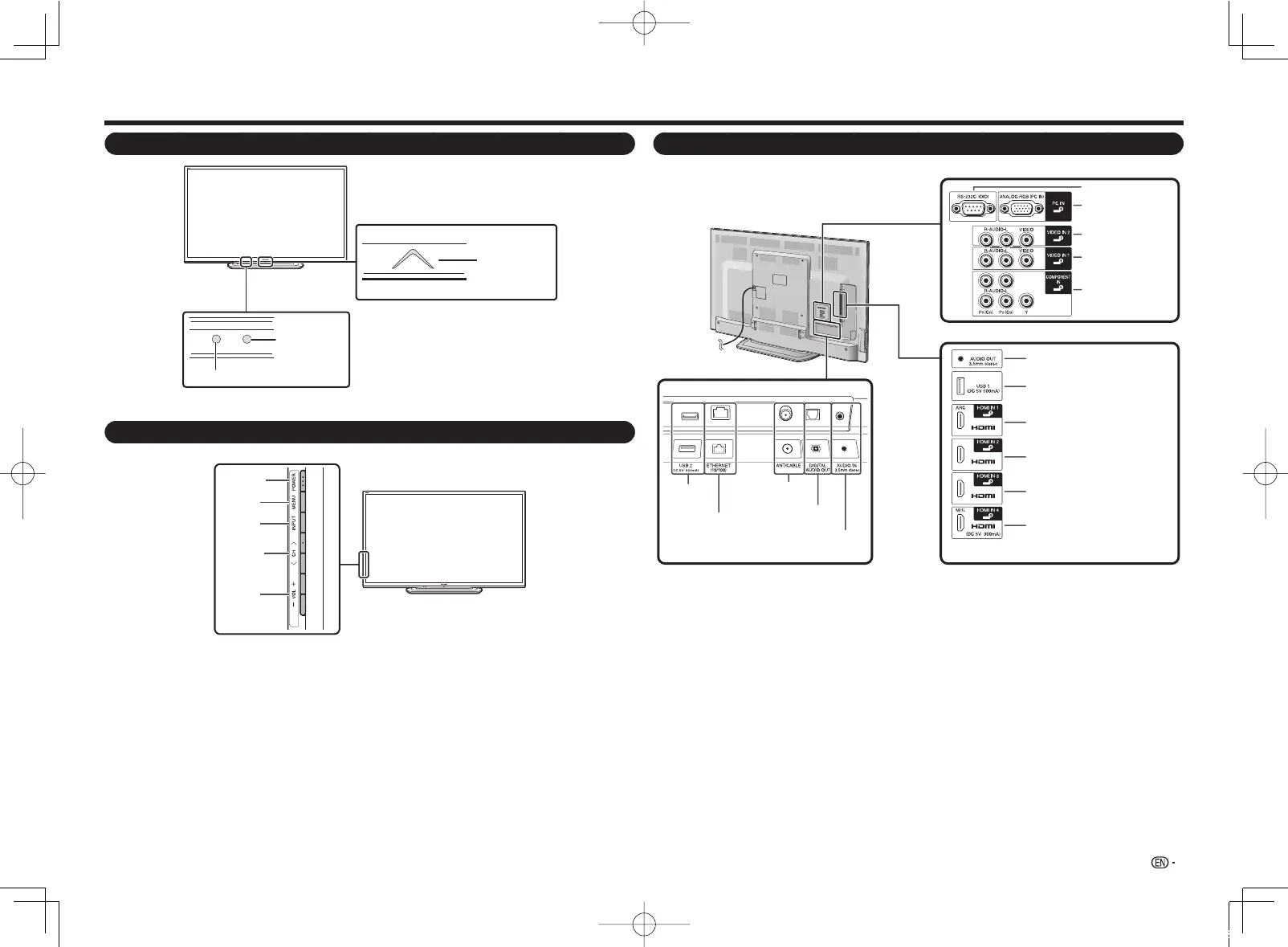

Part Names
TV (Front)
Remote control sensor
OPC sensor *
Center Icon
illumination
(See page 27.)
* OPC: Optical Picture Control (See page 24.)
TV (Side)
POWER
button
MENU
button
INPUT
button
Channel
buttons
(CH
U
/
V
)
Volume
buttons
(VOL
k
/
l
)

* See pages 13, 16, 22 and 27 for button operations.
TV (Rear)
*1
*1
*1
Antenna/
Cable in
DIGITAL AUDIO
OUT terminal
USB 2
terminal *3
ETHERNET
terminal
AUDIO IN terminal
(shared for PC IN
and HDMI IN 2) *2
RS-232C terminal
COMPONENT IN
terminals
VIDEO IN 2 terminals
VIDEO IN 1 terminals
PC IN terminal
HDMI IN 3 terminal
HDMI IN 4 terminal
MHL: Mobile High-Definition Link
(See page 43.)
HDMI IN 1 terminal
ARC: Audio Return Channel
(See pages 41 and 42.)
AUDIO OUT terminal
USB 1 terminal *3
HDMI IN 2 terminal
*1 See pages 13 to 15 and 41 for external equipment connection.
*2 See page 44 for details on the Audio Select function.
*3 Skype™ is available for the USB terminal. For details, refer to the following:
• For the operation manual:
http://www.sharpusa.com (USA)
http://www.sharp.ca (Canada)
http://www.sharp.com.mx (Mexico)
• For information on the communication camera:
http://freetalk.me/product/sharp/
• For details on Skype:
http://www.skype.com
