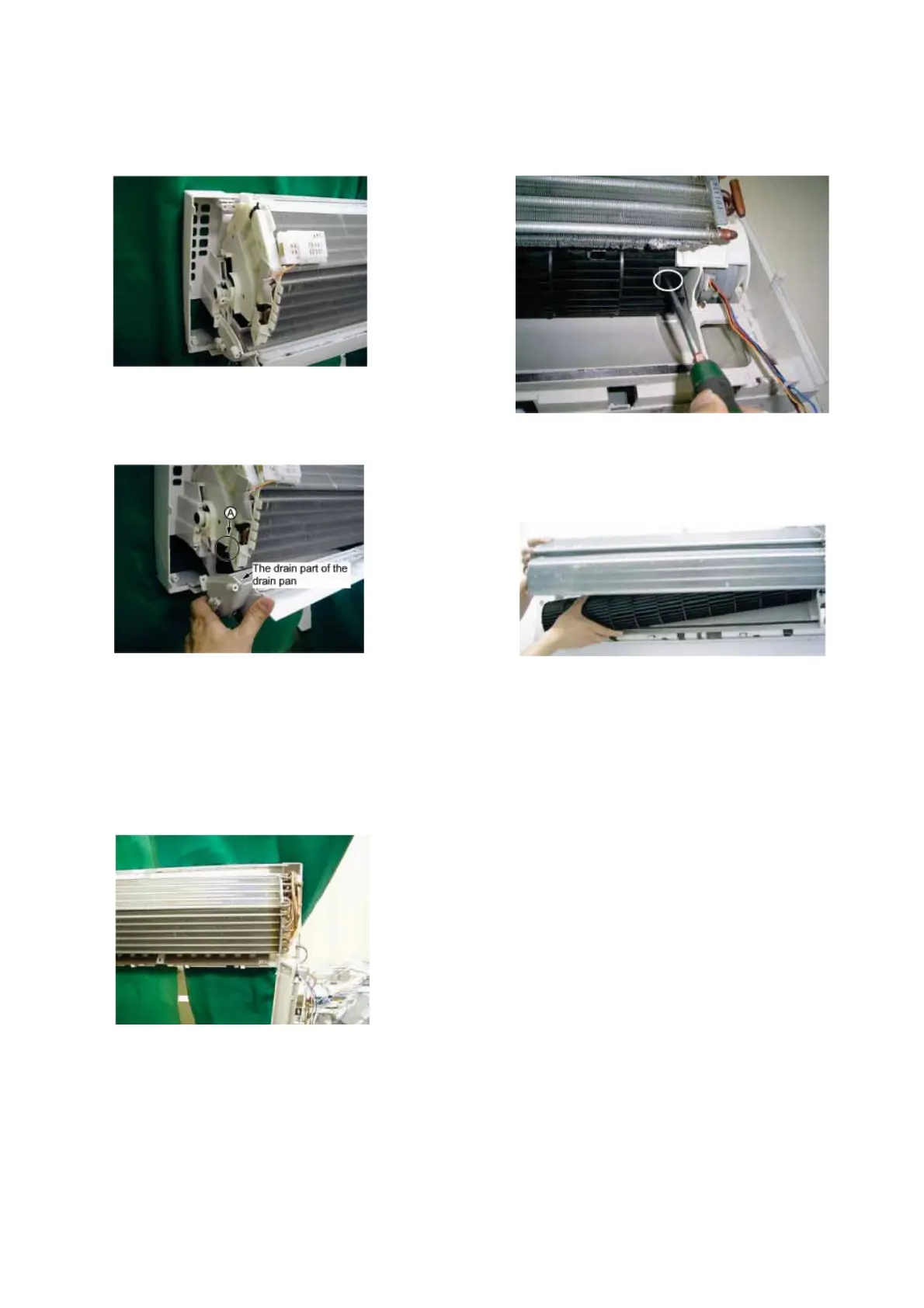

25) Pull the evaporator ass'y up. 28) Remove the screw fixing cross flow fan.
26) Take out the left side of the drain pan.
29) Hold up the left side of evaporator, pull out cross flow
fan
Attention: In case of assembly.
Part A is inserted into the drain part of the drain pan.
27) Take out the right side of the drain pan leaving drain-
hose in cabinet.
