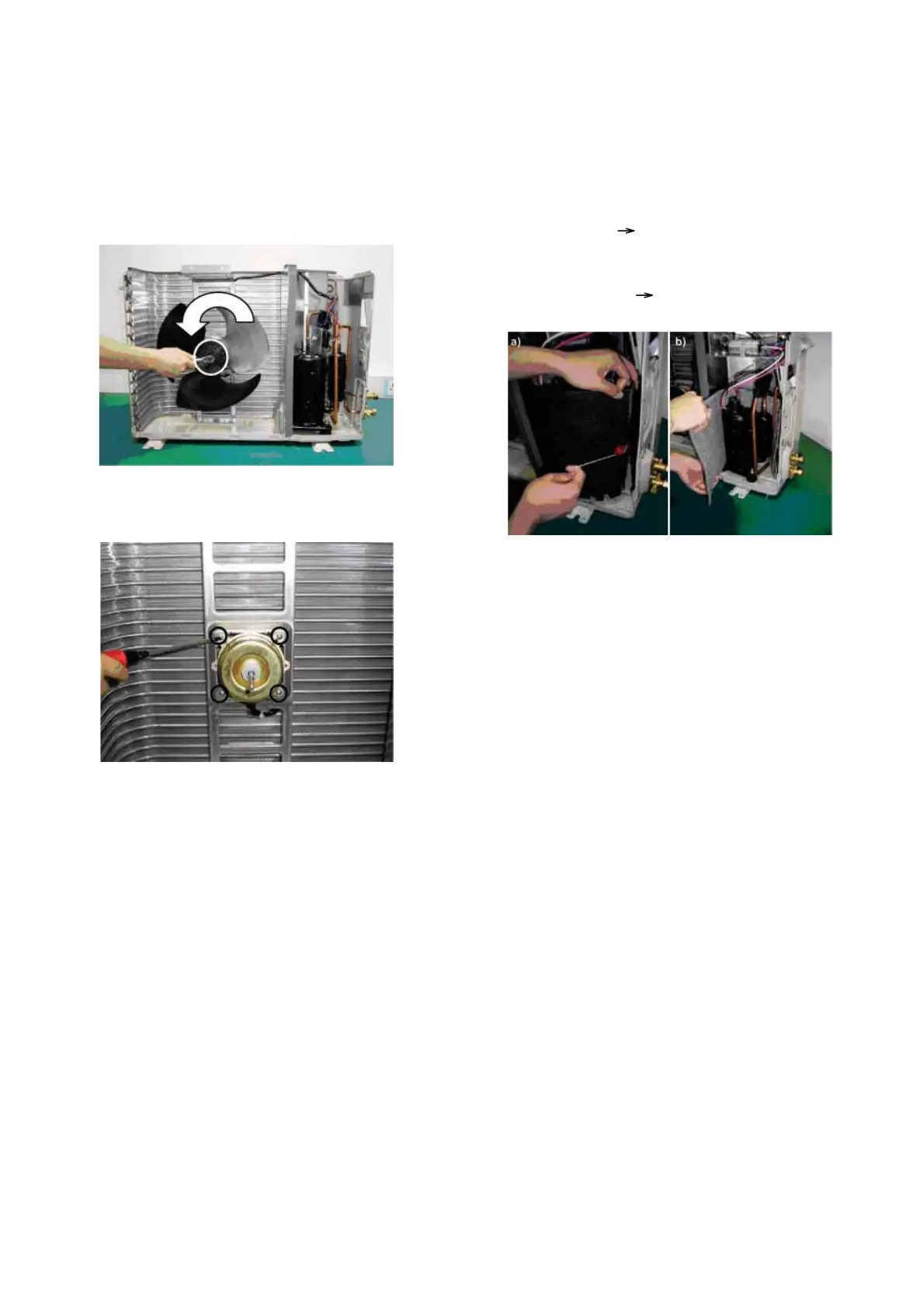

1. DISASSEMBLING PROCEDURE OF THE FAN 2. ASSEMBLING PROCEDURE OF COMPRESSOR
COVER
1) Loose the fan nut and take out fan. 1) Remove: Unlace the fastenner and pull the compressor cover
out from left side. [a) b)]
2) Assembly: Insert the compressor cover from left side, cover
the tube and fasten. [b) a)]
2) Loose 4 screws fixing fan motor.
