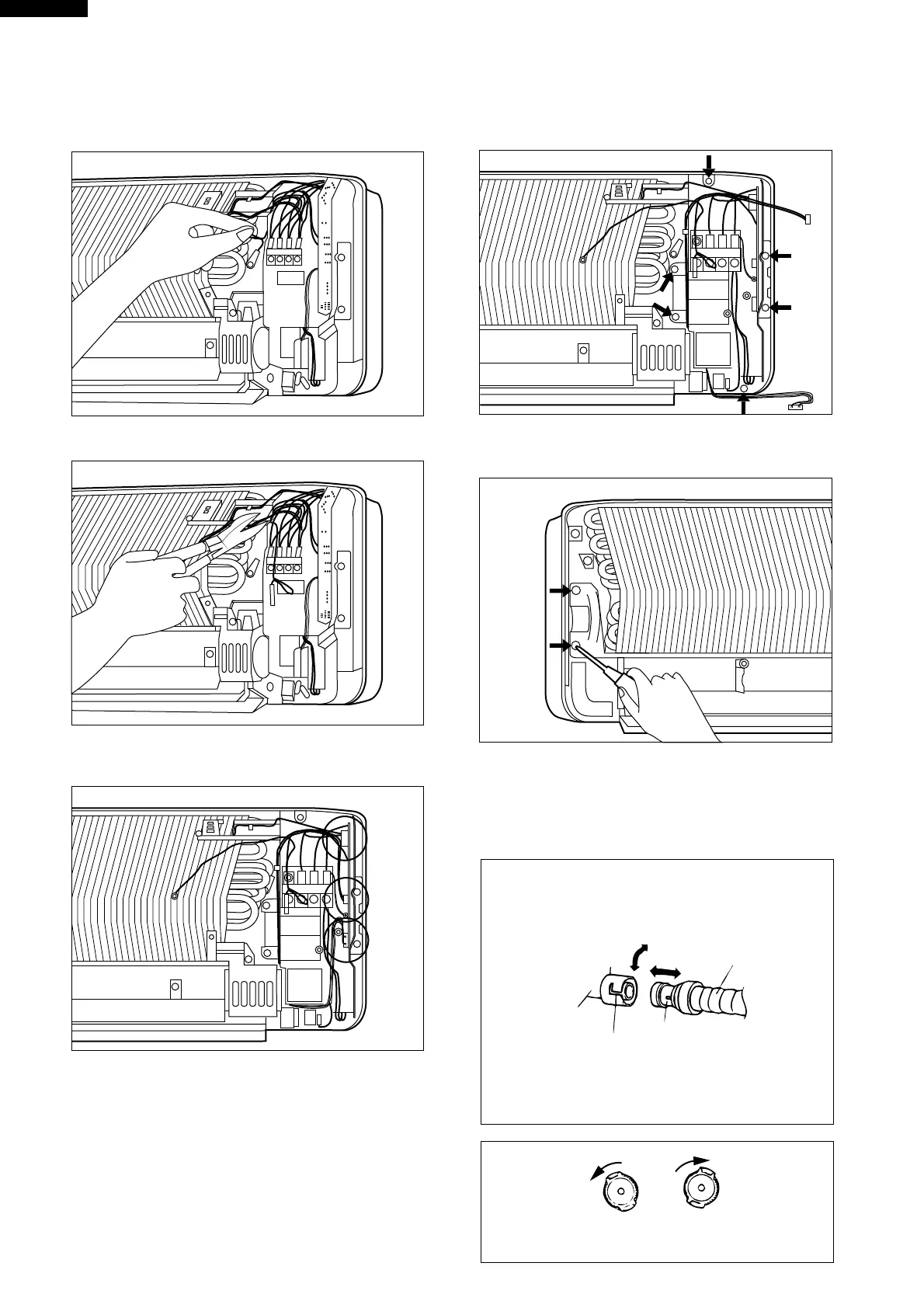

12. Remove the thermostat of the evaporator.
(Pull it out after peeling off the thermoseal.)
15. Remove six fastening screws of the control box, and
remove the control box.
13 Cut the tie band of the lead wire.
14. Remove two connectors of the fan motor and one of
louver motor.
16. Remove the fastening screws of the drain pan. (Two
screws on the left side).
17. Turn the cap area of the drain hose counterclockwise,
and remove it from the drain pan.
During installation, turn the drain hose to the state of
the “engagement position”.
After reinstallation, verify that it is securely fastened.
To disconned To reconnect
Drain hose
Drain pan
Groove
Projection
