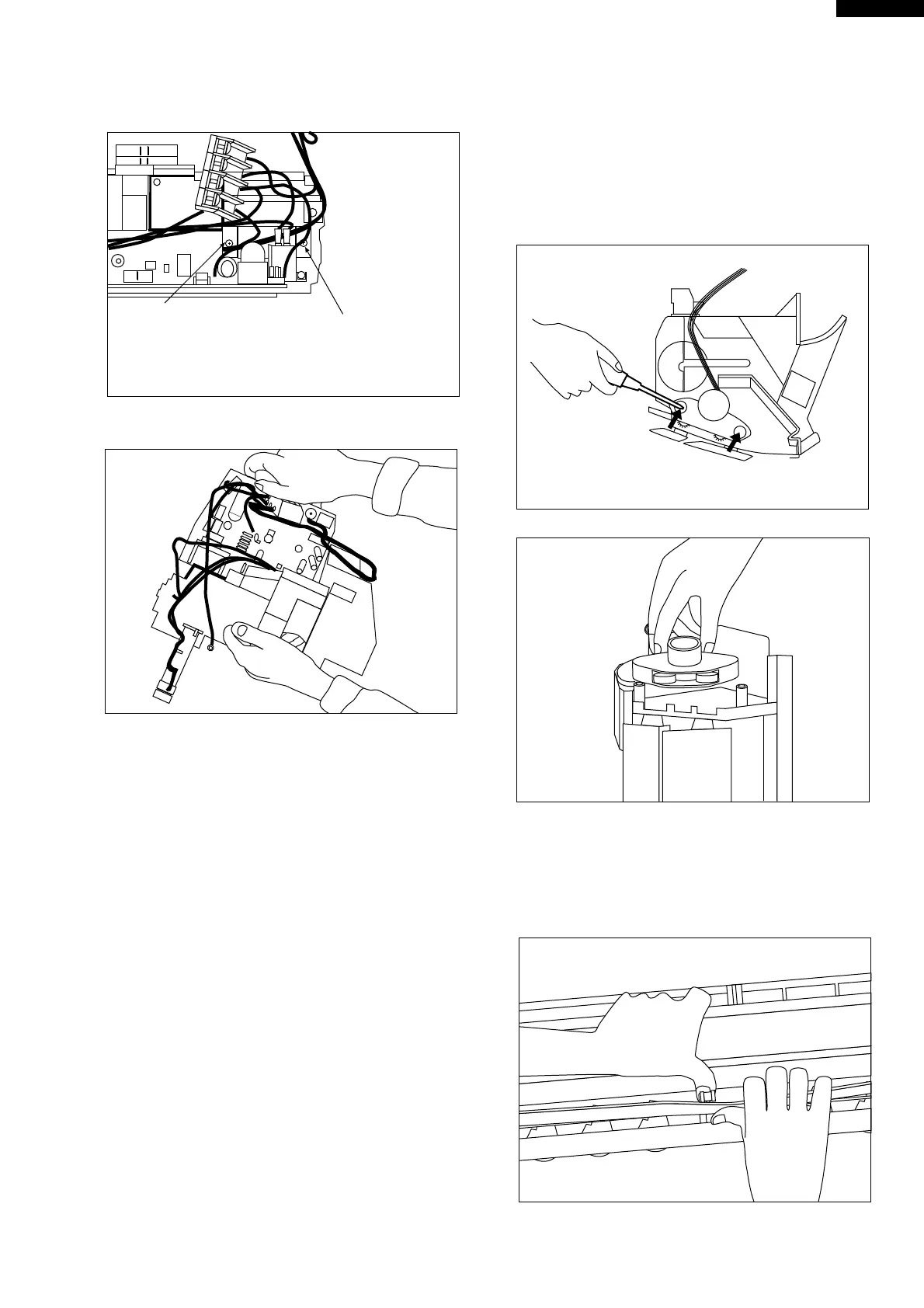

Remove the board fastening screws.
Pull out the board.
Drain pan and related
How to remove the gear box assembly
Remove two screws which fasten the gear box
assembly.
Note When installing the gear box assembly, fit it,
aligning the notch shape of the groove of the
vertical adjusment louver.
How to remove the vertical adjustment louver
Slightly fall down the hinge area, deflect the louver, and
remove it at one place. Remove the shaft from each of
the left and right sides.
the angle of transformer
the angle of transformer
