The front position of auxiliary pipe is
stamped on the installation plate.
It is used as a position mark when the
piping is connected.
A
A
At a distance equal to the scale
stamped on the installation plate
you will find the center of rear piping
hole. Engage the measure with the
front holder of scale, and measure the
distance.
B
For ø65, shift the center down by 3
mm, and makle a hole.
C
C
The triangular dents (2 places) in the
center are for center positioning. which
are usable for installing.
D
The hole in the center upper part has
-shape. After tentatively tightening
the screw, it is possible to ergage the
installation plate here.
E
Unit: mm
Installation dimension range 395 to 550
(when the installation angle is used)
50 mm or more
2945
45 3038
270
C
Center of left
piping hole
Profile of indoor unit
750
590 80
Edge
80
400
75 60 135
265
100
75 90
450
ø70 piping hole
E
B
D
Center of rear piping hole
Lintel
Stamp mark

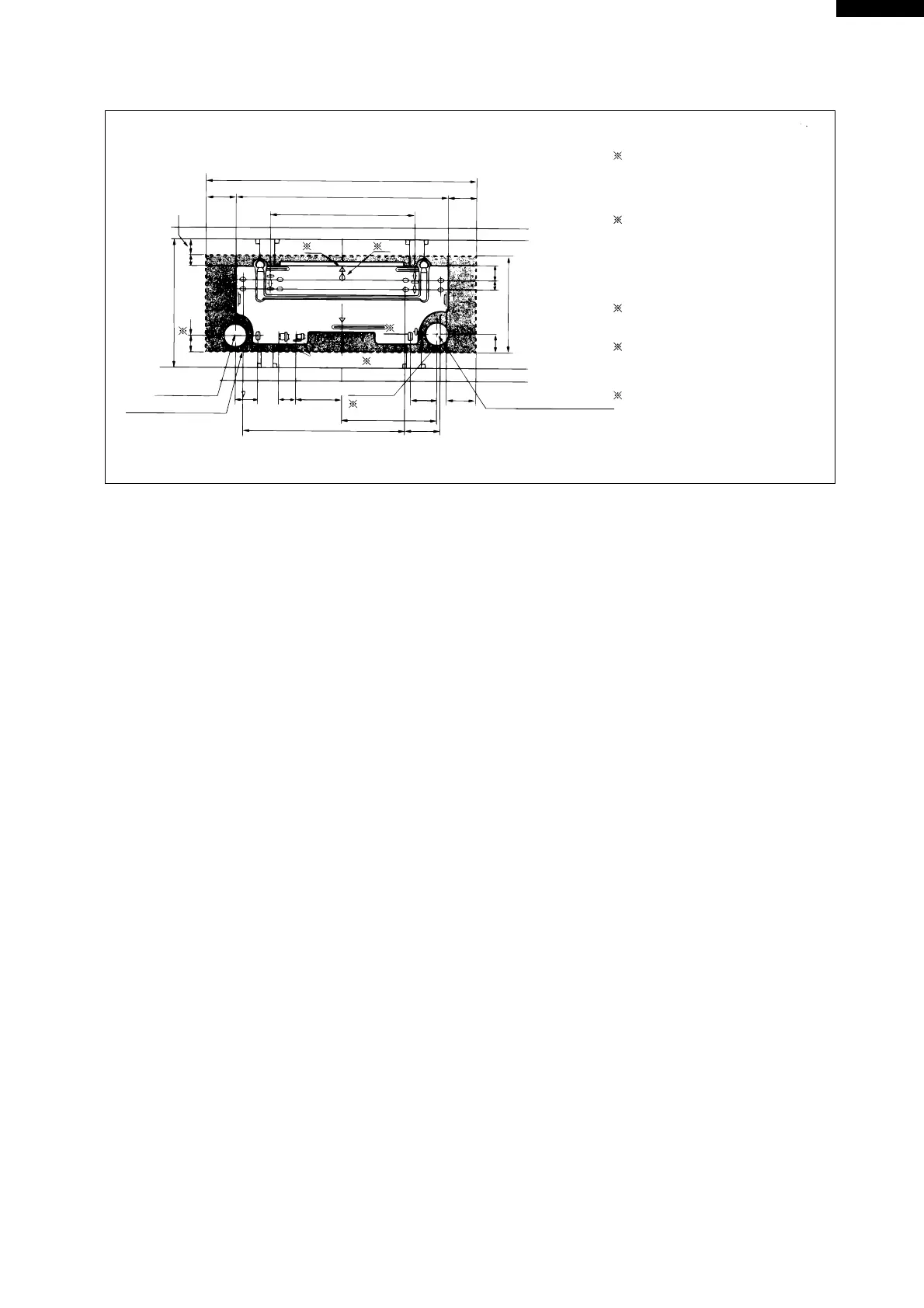

Figure E-3. INSTALLATION DIMENSIONS
