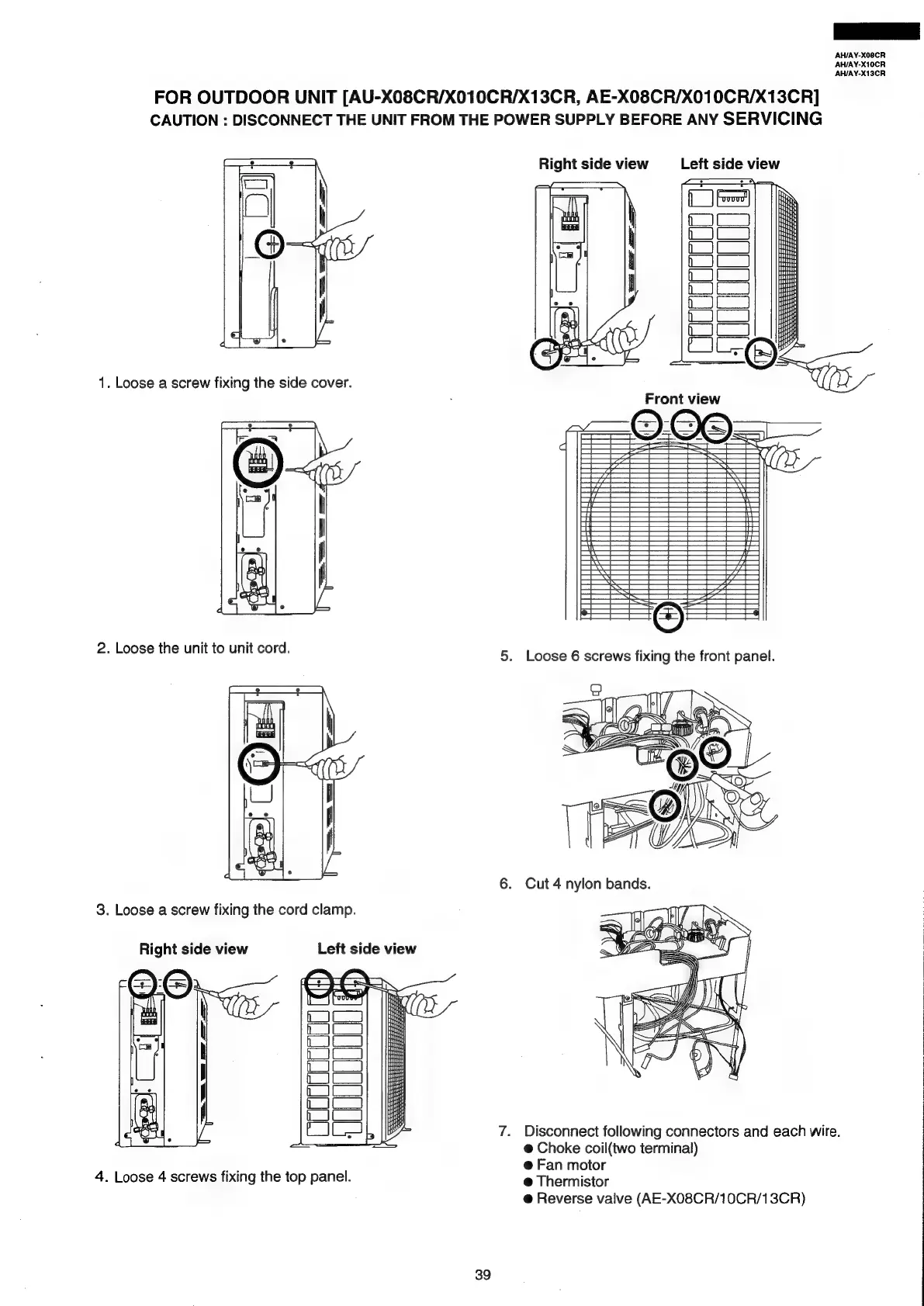

FOR OUTDOOR UNIT [AU-X08CR/X010CR/X13CR, AE-X08CR/X010CR/X13CR]
CAUTION : DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
Right side view Left side view
3. Loose a screw fixing the cord clamp.
Right side view Left side view
@ Choke coil(two terminal)
a @ Fan motor
4. Loose 4 screws fixing the top panel. @ Thermistor
@ Reverse vaive (AE-X08CR/10CR/13CR)
|
(
|
|
7. Disconnect following connectors and each wire.
