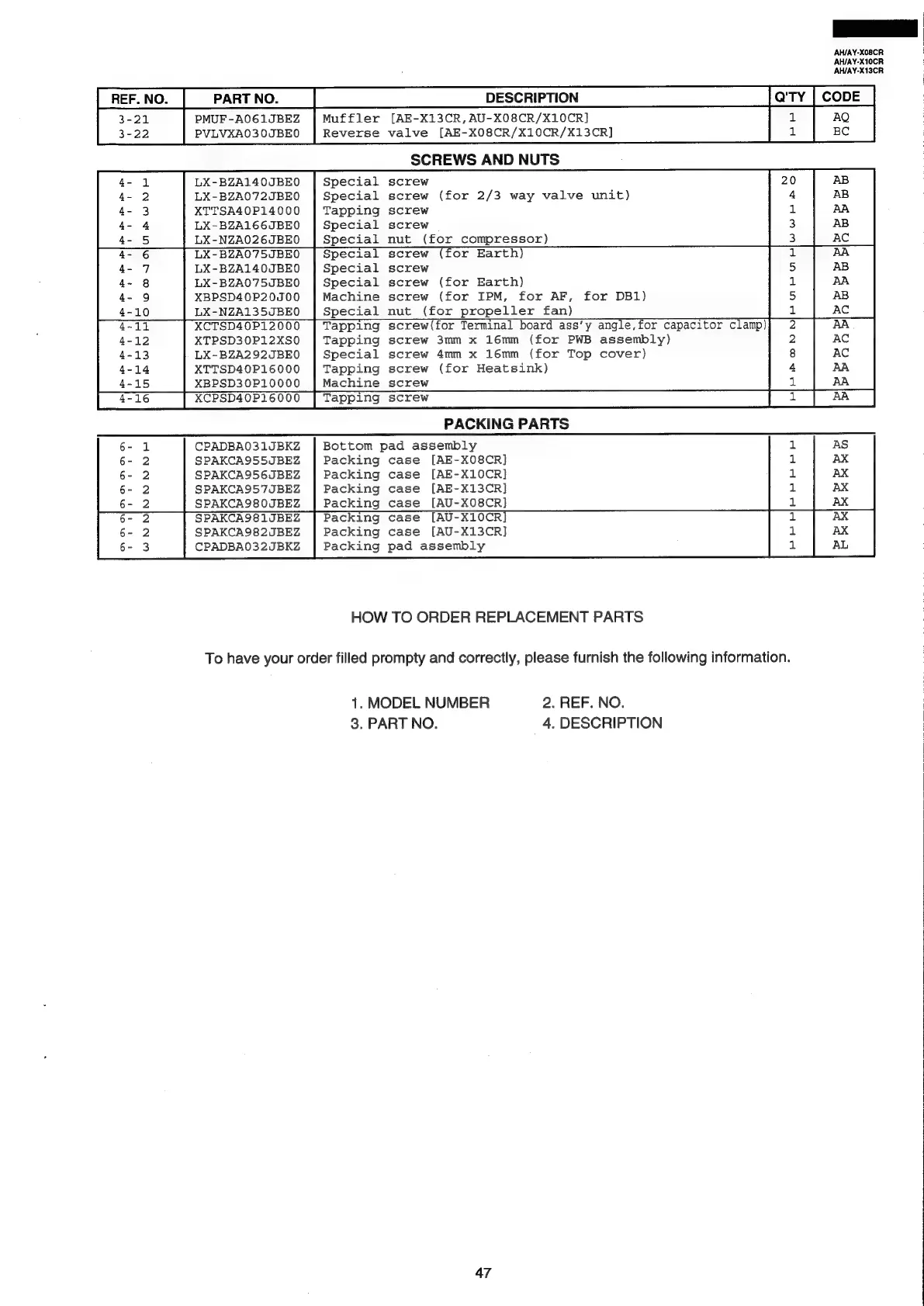

| REF.NO. | | PARTNO. DESCRIPTION
3-21 PMUF -A061JBEZ Muffler [AE-X13CR,AU-X08CR/X10CR]
3-22 PVLVXA03 0JBEO Reverse valve [AE-X08CR/X10CR/X13CR]
SCREWS AND NUTS
LX-BZA140JBE0 Special screw
LX-BZA072JBEO0 | Special screw (for 2/3 way valve unit)
XTTSA40P14000 | Tapping screw
LX-BZA166JBE0 Special screw
LX-NZA026JBEO Special nut (for compressor)
LX-BZA075JBEO Special screw (for Earth)
LX-BZA140JBE0 Special screw
LX-BZAO75JBEO | Special screw (for Earth)
wo WA WNe
XBPSD40P20J00 | Machine screw (for IPM, for AF, for DB1)
LX-NZA135JBEO Special nut (for propeller fan)
XCTSD40P12000 | Tapping screw(for Terminal board ass’y angle,for capacitor clamp)
XTPSD30P12XSO0 | Tapping screw 3mm x 16mm (for PWB assembly)
LX-BZA292JBE0 Special screw 4mm x 16mm (for Top cover)
XTTSD40P16000 Tapping screw (for Heatsink)
XBPSD30P10000 | Machine screw
PACKING PARTS
CPADBA031JBKZ Bottom pad assembly
SPAKCA955JBEZ Packing case [AE-X08CR]
SPAKCA956JBEZ Packing case [AE-X10CR]
SPAKCA957JBEZ
SPAKCA980JBEZ
SPAKCA981JBEZ
SPAKCA982JBEZ
CPADBA032JBKZ
Packing case [AE-X13CR]
Packing case [AU-X08CR]
Packing case [AU-X10CR]
Packing case [AU-X13CR]
Packing pad assembly
WNNINNNNB
PREP PREP
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
47
