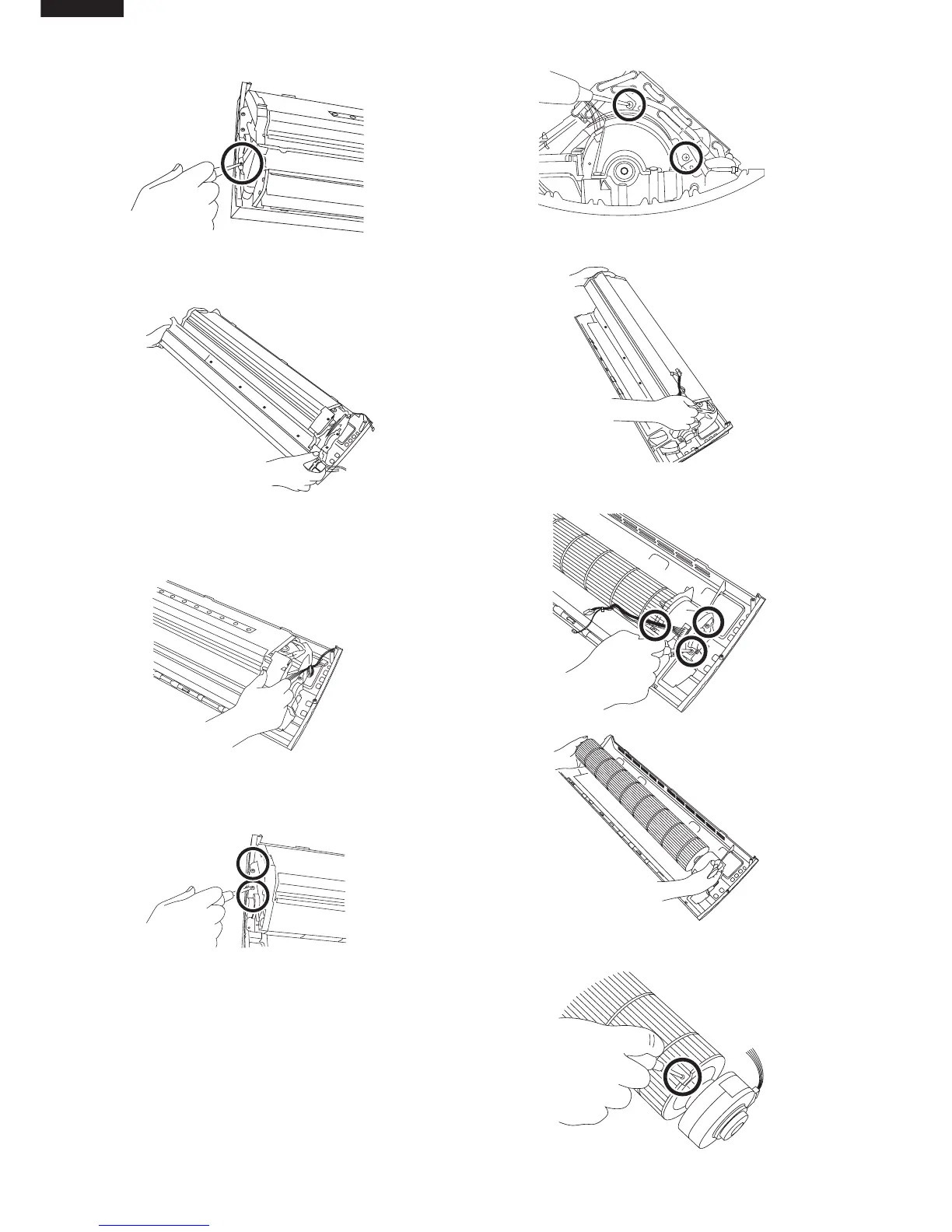

17. Remove a screw fixing the drain pan.
18. Pull the drain pan toward you.
19. Remove the drain cover from the evaporator.
Note: During reassembly, verify that the dew
on the pipe is led to the drain pan.
20. Remove 4 screws fixing the evaporator.
21. Remove the evaporator from the cabinet.
22. Remove 3 screws fixing the motor cover, and pull up
the fan.
23.Loose a screw fixing fan.
