Sharp AY-XP24LR Service Manual

AYXPC18LR
5 – 7

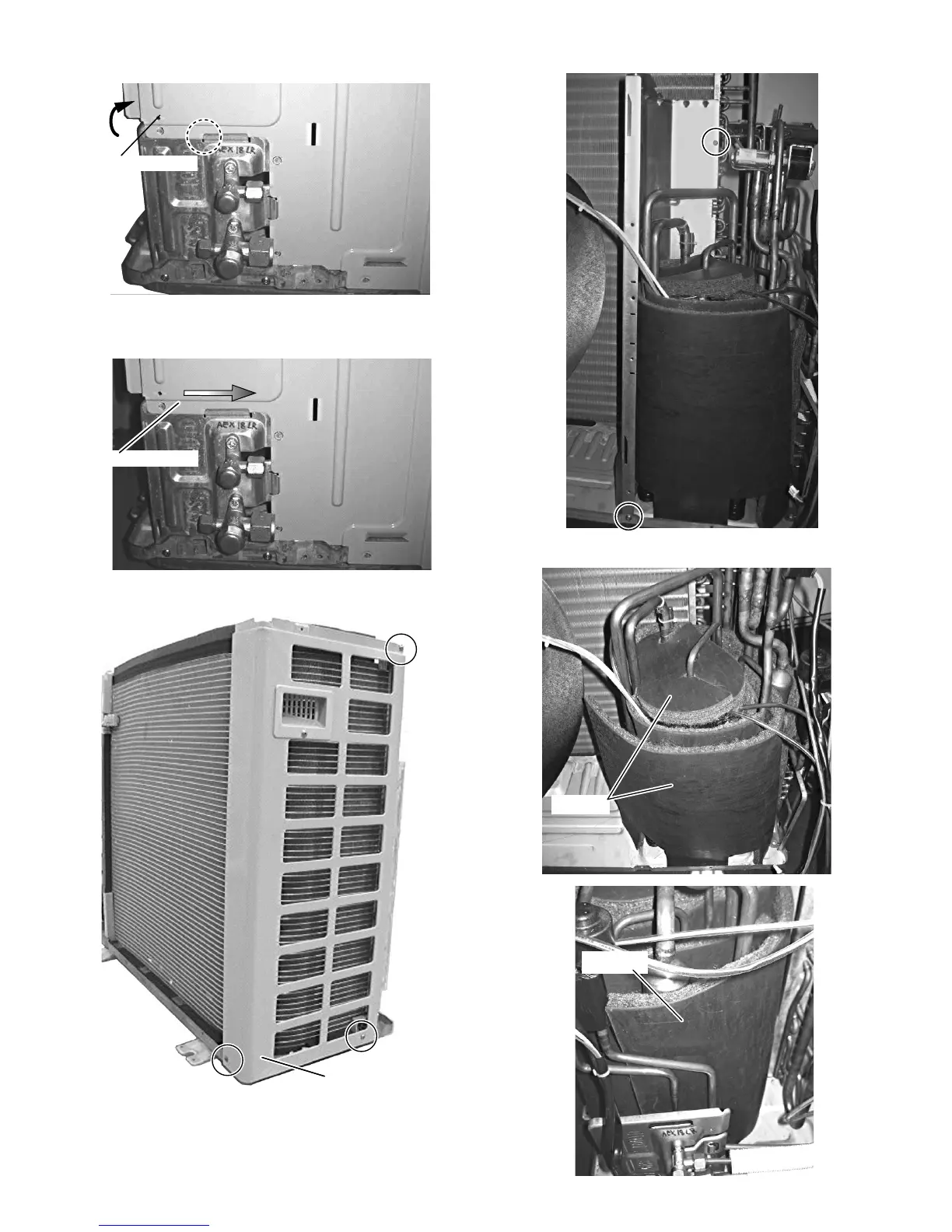

1) Tilt the side cabinet R, then remove the left side hook.
2) Keep the above condition and remove the side cabinet R by
sliding to sideways.
12.Remove the screws fixing the side cabinet L, then remove it.
13.Remove the 2 screws fixing the bulkhead, then remove it.
14.Remove the compressor covers(3pcs).
Side cabinet R
Side cabinet R
Side cabinet L
Remove
Remove
