Sharp AY-XP24LR Service Manual

AYXPC18LR
5 – 9

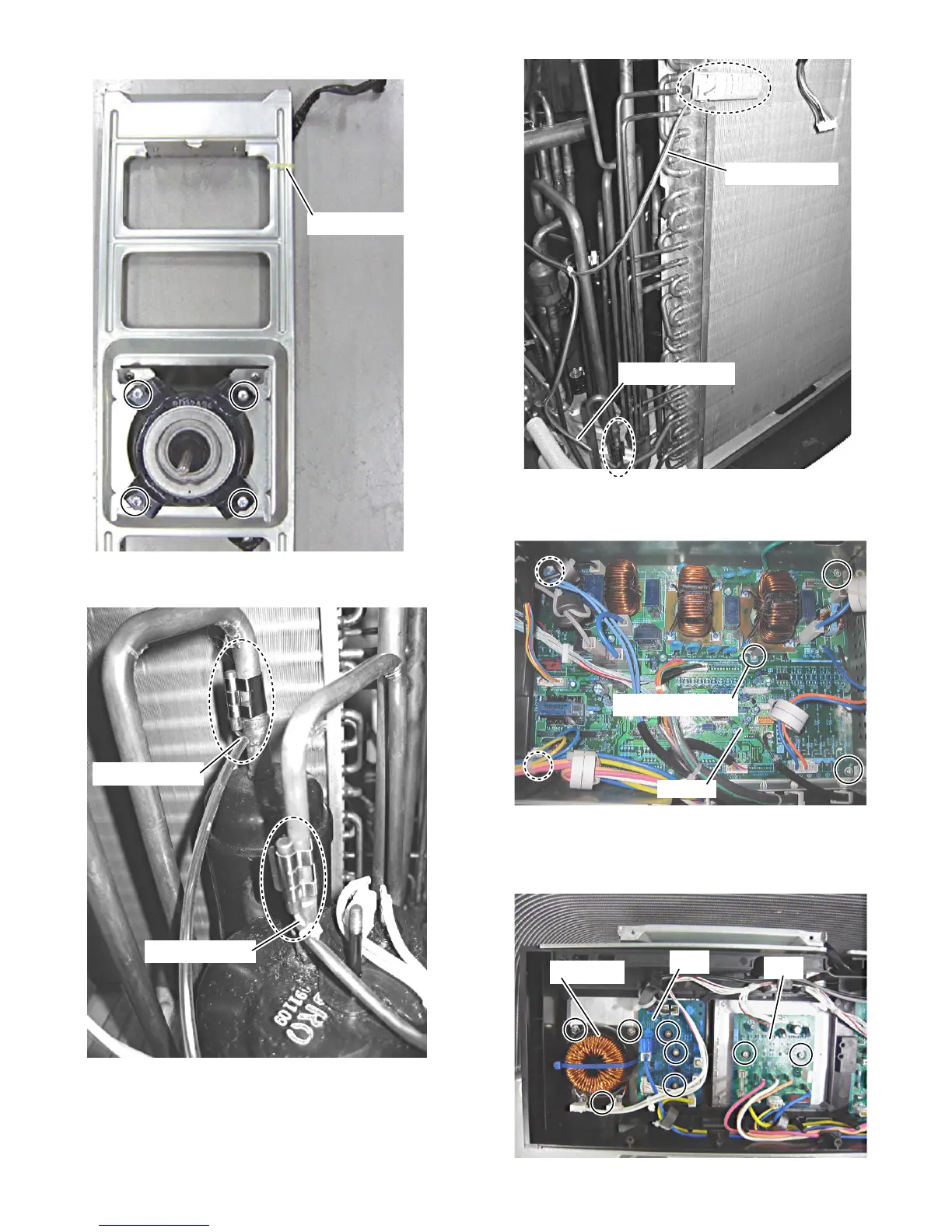

21.Remove the 4 screws fixing the fan motor, then remove it.
22.Position of the thermistors.
NOTE: Caution to the position when reinstalling.
23.How to disassemble the control box assembly.
1) Remove the 4 screws fixing the PWB, then remove it.
2) Remove the 2 screws fixing the IPM, then remove it.
3) Remove the 3 screws fixing the PAM.
4) Remove the 3 screws fixing the Active coil.
Cut the fixing band.
Black lead wire
Red lead wire
Green lead wire
Orange lead wire
P.W.B
Unlock the spacer
Active coil
PAM
IPM
