Sharp AY-XPM12FR User Manual

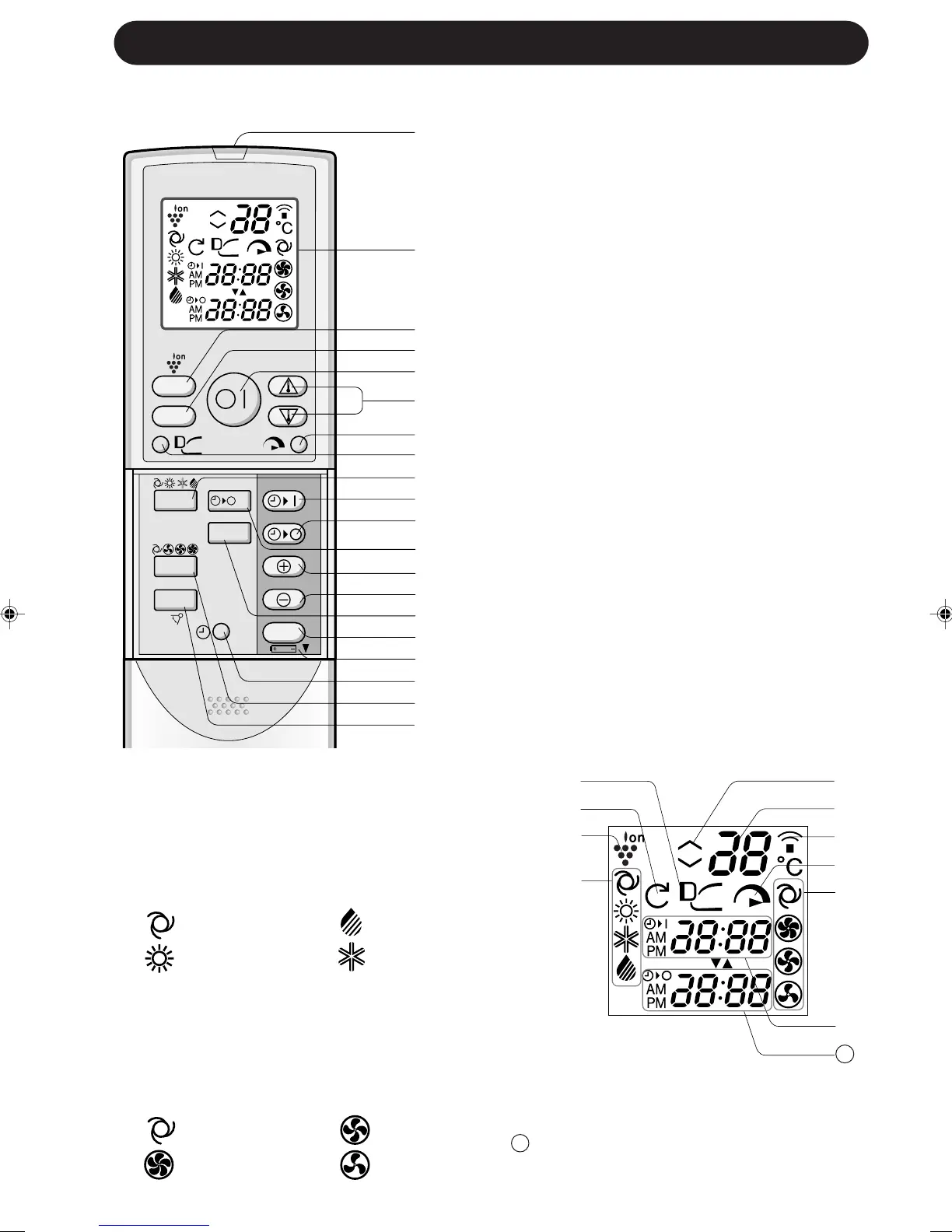

REMOTE CONTROL
1 TRANSMITTER
2 DISPLAY (Liquid Crystal Display)
3 PLASMACLUSTER Button
4 DISPLAY Button
5 ON/OFF Button
6 THERMOSTAT Button
7 FULL POWER Button
8 PROGRESSIVE AIRFLOW Button
9 MODE Button
0 TIMER ON Button (for setting the timer)
q TIMER OFF Button (for setting the timer)
w ONE-HOUR OFF TIMER Button
e TIME ADVANCE Button
r TIME REVERSE Button
t SELF CLEAN Button
y TIMER SET/CANCEL Button
u Indicates BATTERY COMPARTMENT is
below this mark
i CLOCK Button
o FAN Button
p SWING Button
; TIMER ON INDICATOR/CLOCK
Indicates the on timer preset time or current
time.
31 TIMER OFF INDICATOR
Indicates the preset time for off timer or one-
hour off timer.
E-4
a PROGRESSIVE AIRFLOW SYMBOL
s SELF CLEAN SYMBOL
d PLASMACLUSTER SYMBOL
f MODE SYMBOLS
: AUTO : DRY
: HEAT : COOL
g THERMOSTAT SETTING FOR AUTO AND
DRY MODES
h TEMPERATURE INDICATOR
j TRANSMITTING SYMBOL
k FULL POWER SYMBOL
l FAN SPEED SYMBOLS
: AUTO : LOW
: HIGH : SOFT
L.C.D. REMOTE CONTROL DISPLAY
PART NAMES
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
a
s
d
f
SWING
CLEAN
FAN
MODE
SET/C
1h
DISPLAY
g
h
j
k
l
;
31

Sharp AY-XPM12FR Specifications

General

Refrigerant	R32
Weight (Outdoor Unit)	28 kg
Power Supply	220-240 V, 50 Hz
Type	Split
Energy Efficiency Class Cooling	A
Energy Efficiency Class Heating	A
